Connection
Input En
Input P
Parameter
Output Q
Description of the function
With a 0 to 1 transition of the signal at input En, the display outputs your configured message text (actual
value, text, TOD, date) in RUN mode.
Acknowledgement disabled (Ack = Off):
The message text is hidden with a 0 to 1 signal transition at input En.
Acknowledgement enabled (Ack = On):
After input En is reset to 0, the message text is displayed until acknowledged by pressing the OK button.
The message text cannot be acknowledged as long as input En is high.
If several message text functions were triggered with En=1, the message with the highest priority (1 =
lowest, 64=highest) is displayed. This also implies that a new message text is only displayed if its priority
is higher than that of previously enabled message texts.
After a message text is disabled or acknowledged, the function automatically shows the previously active
message text that takes the highest priority.
You can press the and

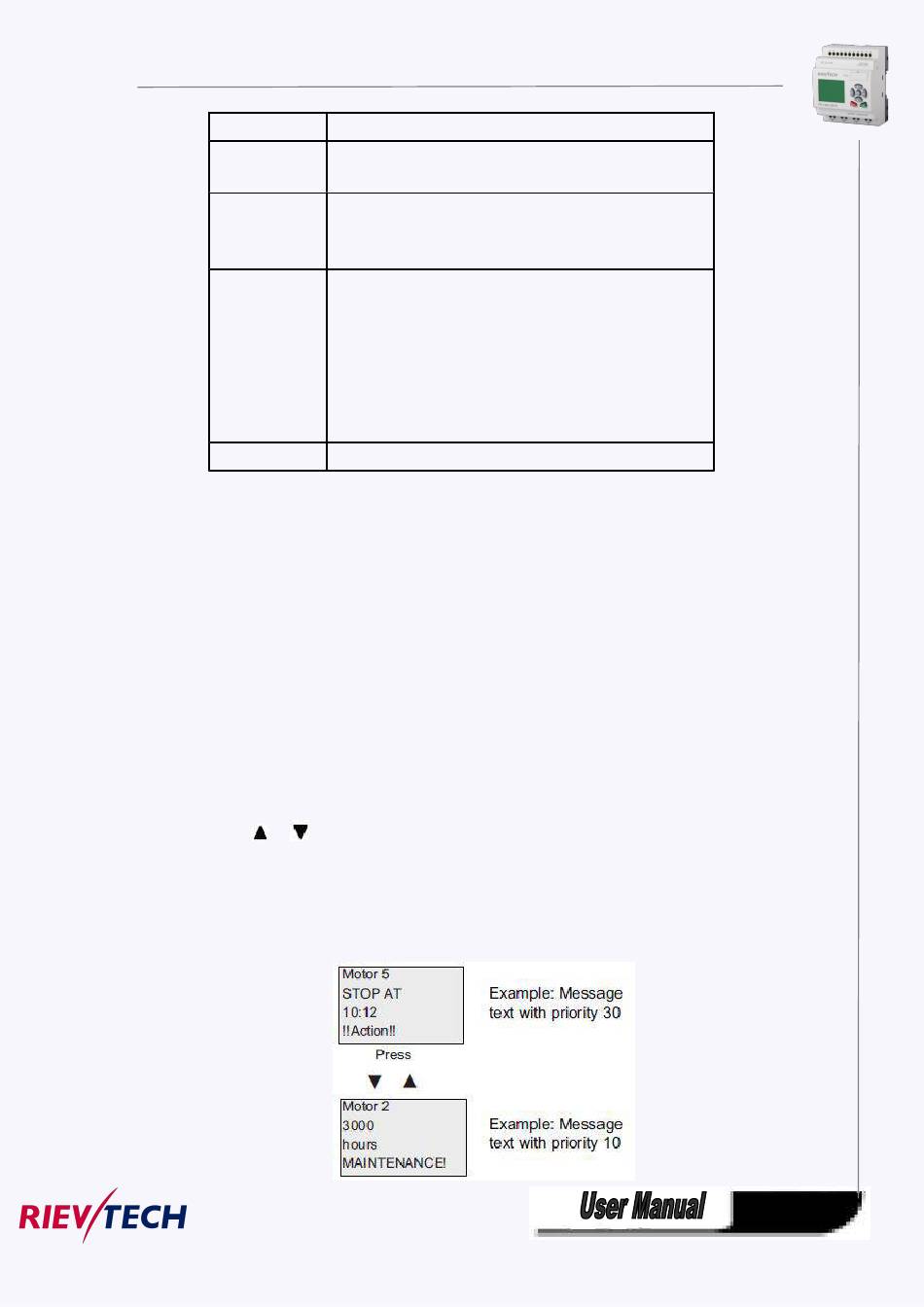

Example
This is how two message texts could be shown:
Display field of xLogic in RUN mode
Description
A 0 to 1 transition at En (Enable) triggers the output of the
message text.
P is the priority of the message text.
1 is the lowest, 32 is the highest priority.
Quit: Acknowledgement of the message text
Text: Input of the message text
Par: Parameter or actual value of another, already configured
function (see "Visible parameters or actual values")
Time: Shows the continuously updated time-of-day
Date: Shows the continuously updated date
EnTime: Shows the time of the 0 to 1 transition
EnDate: Shows the 0 to 1 transition of the date
Q remains set as long as the message text is queued.
keys to step through multiple active message texts.
