5.7 Main Functions

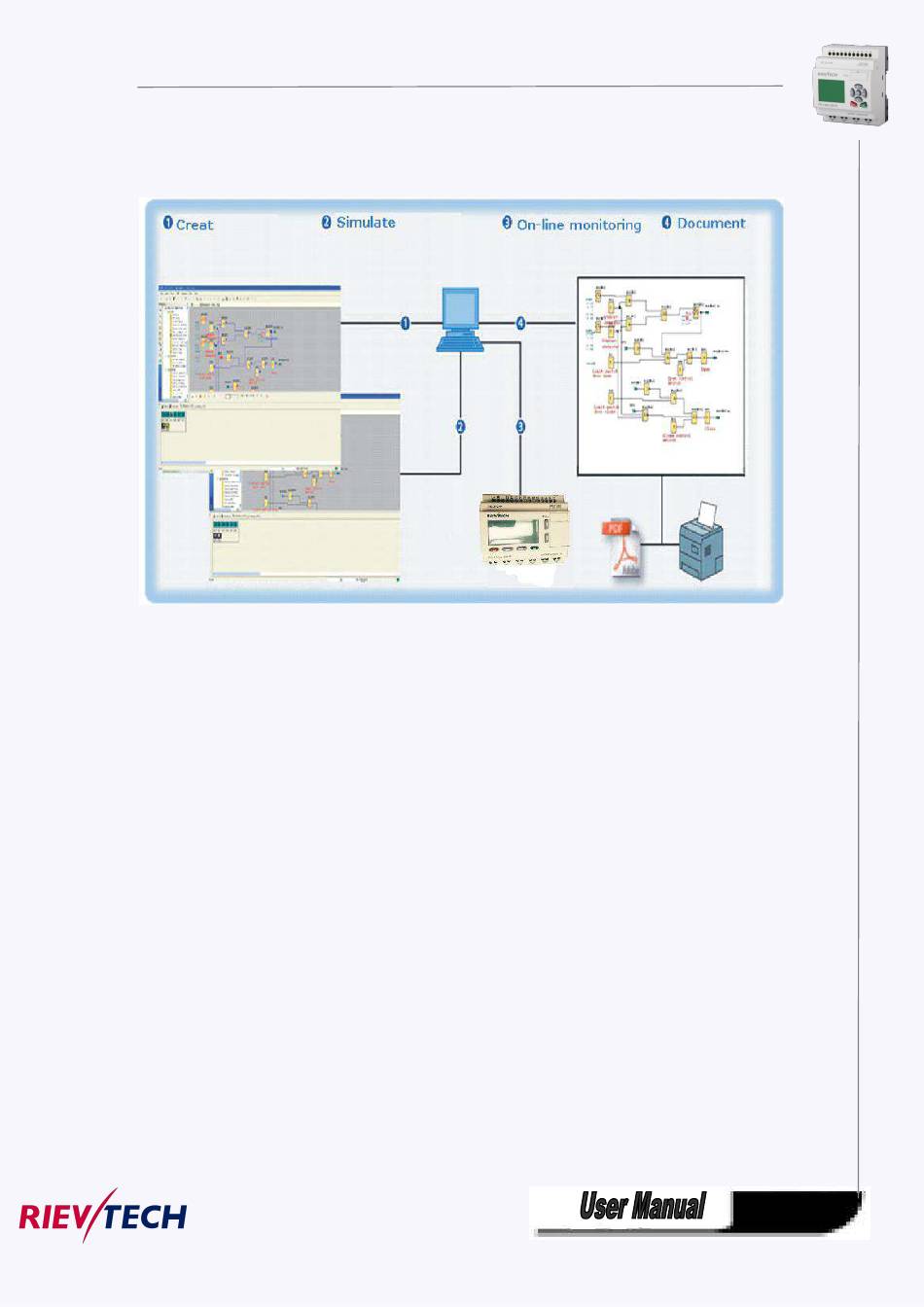

1. Edition function
The main function of xLogicsoft is programming for xLogic. By using the Logical
Function Edition window of xLogicsoft, you can create and edit your desired xLogic programs using
various function blocks of xLogic and can also perform file operations such as save, print, program
management etc.
2. Simulation operation function
After the program is edited, you can view the program operation result on the computer and conveniently
check if the said program meets your control requirements. Here xLogicsoft provides you with a
completely new off-line test function, through which you can debug the program without installing the
xLogic on site. With this function, many inconvenience of the site test can be avoided.
3. Real-time monitoring
xLogicsoft has a Real-Time Monitoring window. You can view the process of the control system and the
running conditions of all xLogic and control remote xLogic, by connecting the xLogic communication port
(RS232,USB, Ethernet optional) to the computer you can view the process of the control system.
4. Document
The program circuit can be saved and printed. The analog values also can be saved in one excel file .
