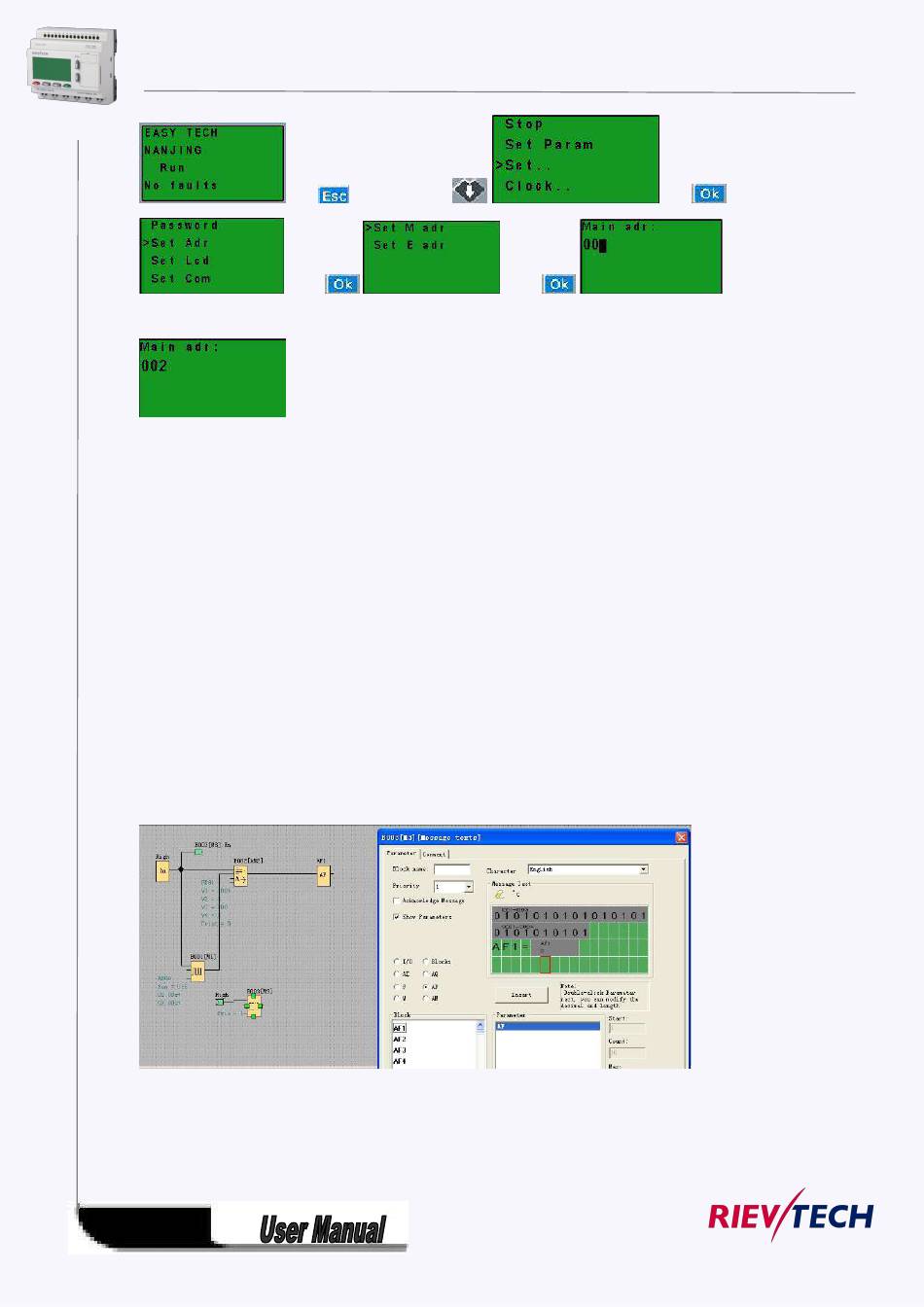

Press
,and then press
Press
Press
Press
Change
address with UP or DOWN button and confirm with OK.
Regarding the program. We need realize the below logic.
1.I1--IA in master to control the Q1--QA in slave1&salve2, if I1 is ON in master, the corresponding Q1 in
salves is ON; I2 is ON in master, the corresponding Q2 in salves is ON;....IA is On in master, the
corresponding QA in salves is ON. If I1 is OFF in master, the corresponding Q1 in salves is OFF.......IA is
OFF in master, the corresponding QA in salves is OFF.
2. Read the Inputs I1--IA status of slave 1 to control the F11--F20 in master; Read the Inputs I1--IA
status of slave 2 to control the F21--F30.
3. Read the AF1 value of slave1 to be saved in the AF1 of master; Read AF1 value of slave2 to be saved
in AF2 of master.
Program in slave 1
(Note: In the program, you can put the input/output block in, but you cannot link the input pin of the
output)
Program in slave 2
(Note: In the program, you can put the input/output block in, but you cannot link the input pin of the
output)
327
