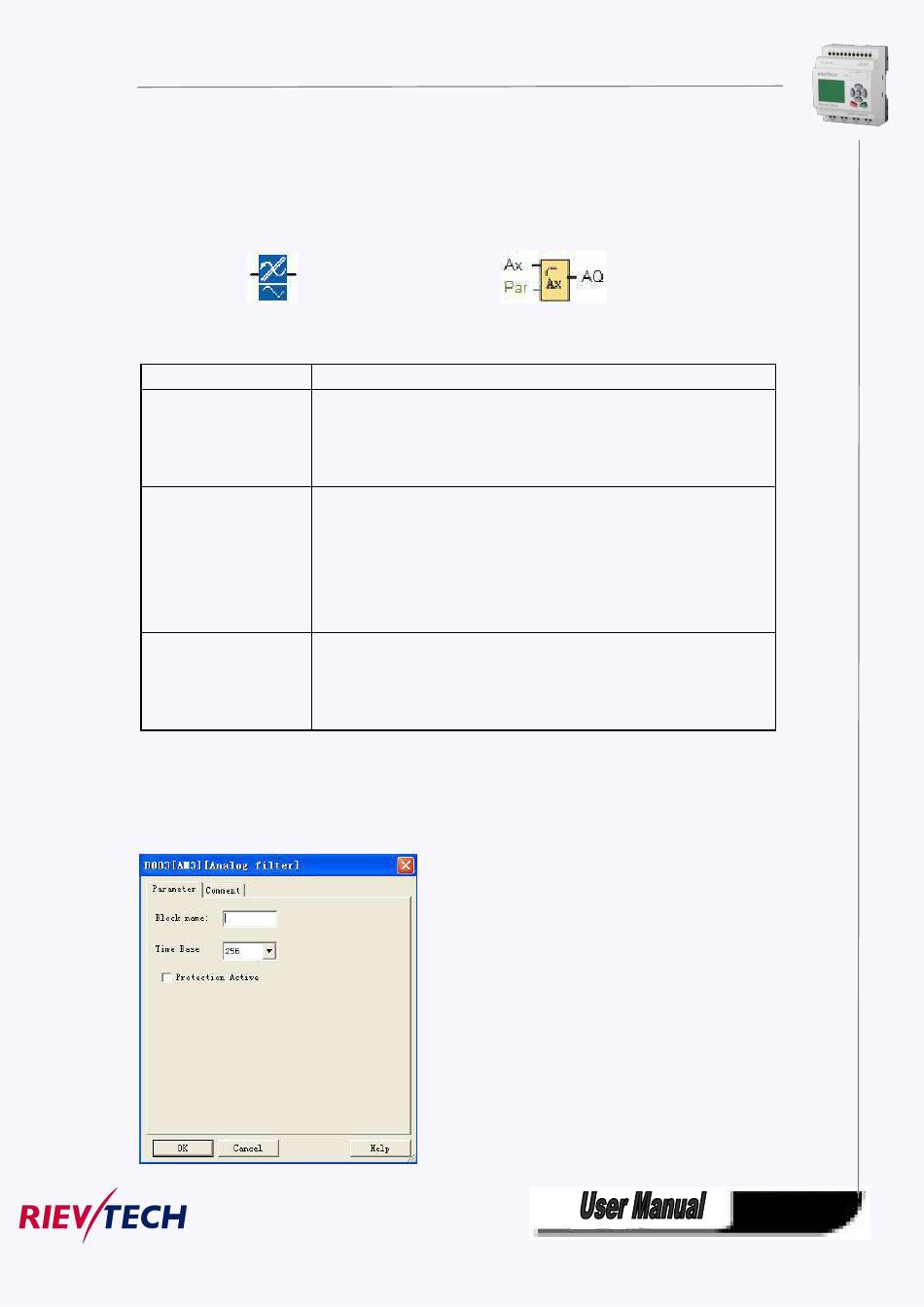

5.5.42 Analog filter

Fashion:
Short Description
Connection Description
Input Ax Analog Inputs
Analog Outputs
Analog Flags
The block number of a function with analog output
Parameter Sn (Number of samples): determines how many analog values are sampled
within the program cycles that are determined by the set number of
samples. xLogic samples an analog value within every program cycle. The
number of program cycles is equal to the set number of samples.
Possible settings:
8, 16, 32, 64, 128, 256
Output AQ AQ outputs an average value of the analog input Ax over the current
number of samples, and it is set or reset depending on the analog input and
the number of samples.
* Analog inputs: 0 to 10 V corresponds with 0 to 1000 (internal value).
Parameter
You can set the number of samples to the following values:
Classic:
