Modify the contrast with Left or right key, and confirm with "Ok".

4.3.6 Set communication parameters

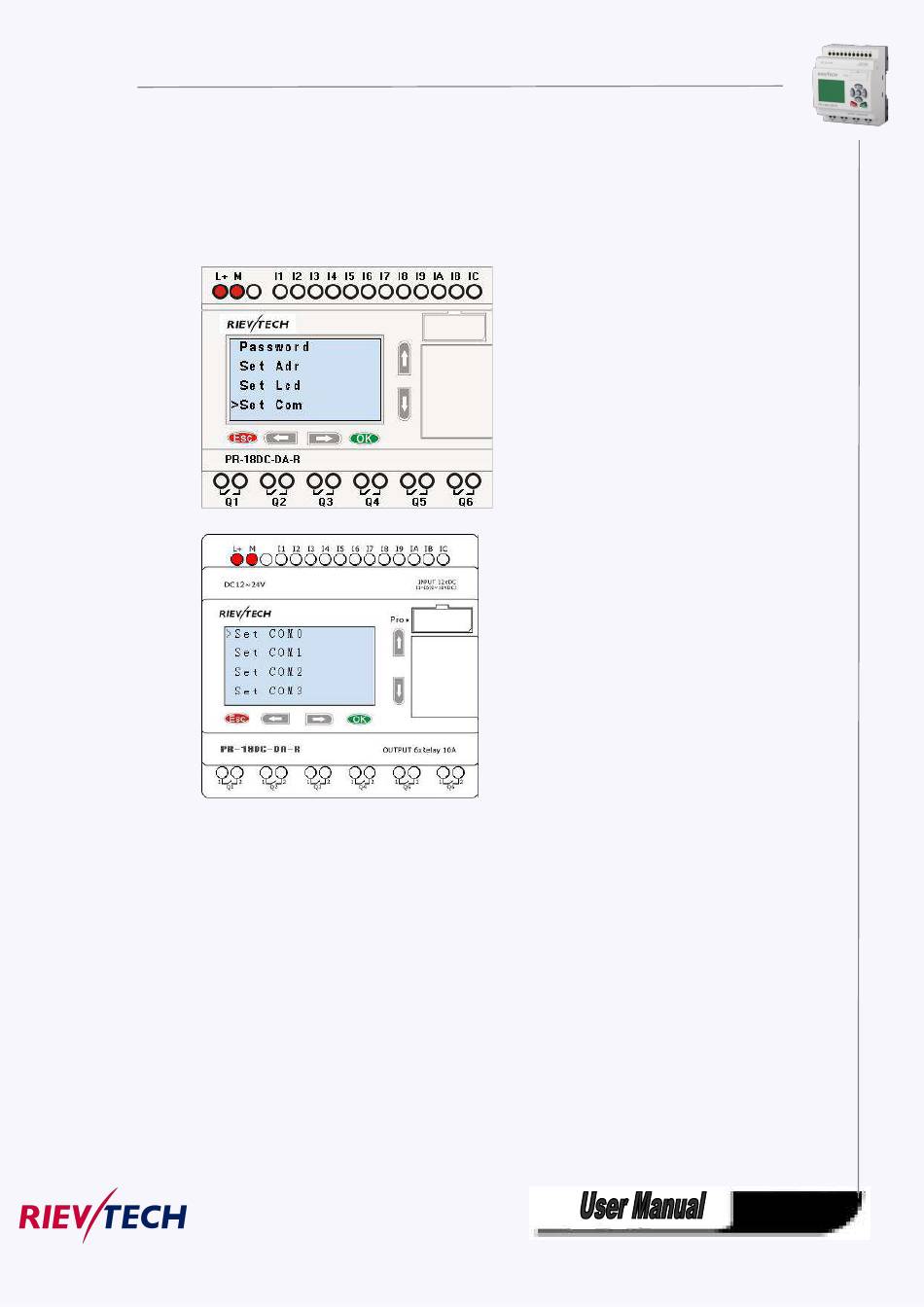

Select "Set Com" menu from the menu "Set..".
Confirm with "Ok"
COM0: RS232 port or programming port.
COM1: RS485 port(For the PR-RS485 module which shall be connected to
PR-14,PR-18,PR-24,ELC-18,ELC-22,ELC-26 CPU)
COM2: Built-in RS485 port for PR-14 and PR-24CPU.
COM3: Ethernet port for ELC-22-N CPU, reserved for other series CPU.
