to chapter 5.2.2 please.
For information on the validity and accuracy of the time base, refer to the xLogic time-base list as follows:
Valid ranges of the time-base, if T = parameter
Time-base
s (seconds)
m (minutes)
h (hours)
Valid ranges of the time base, if T = Actual value of an already-programmed
function

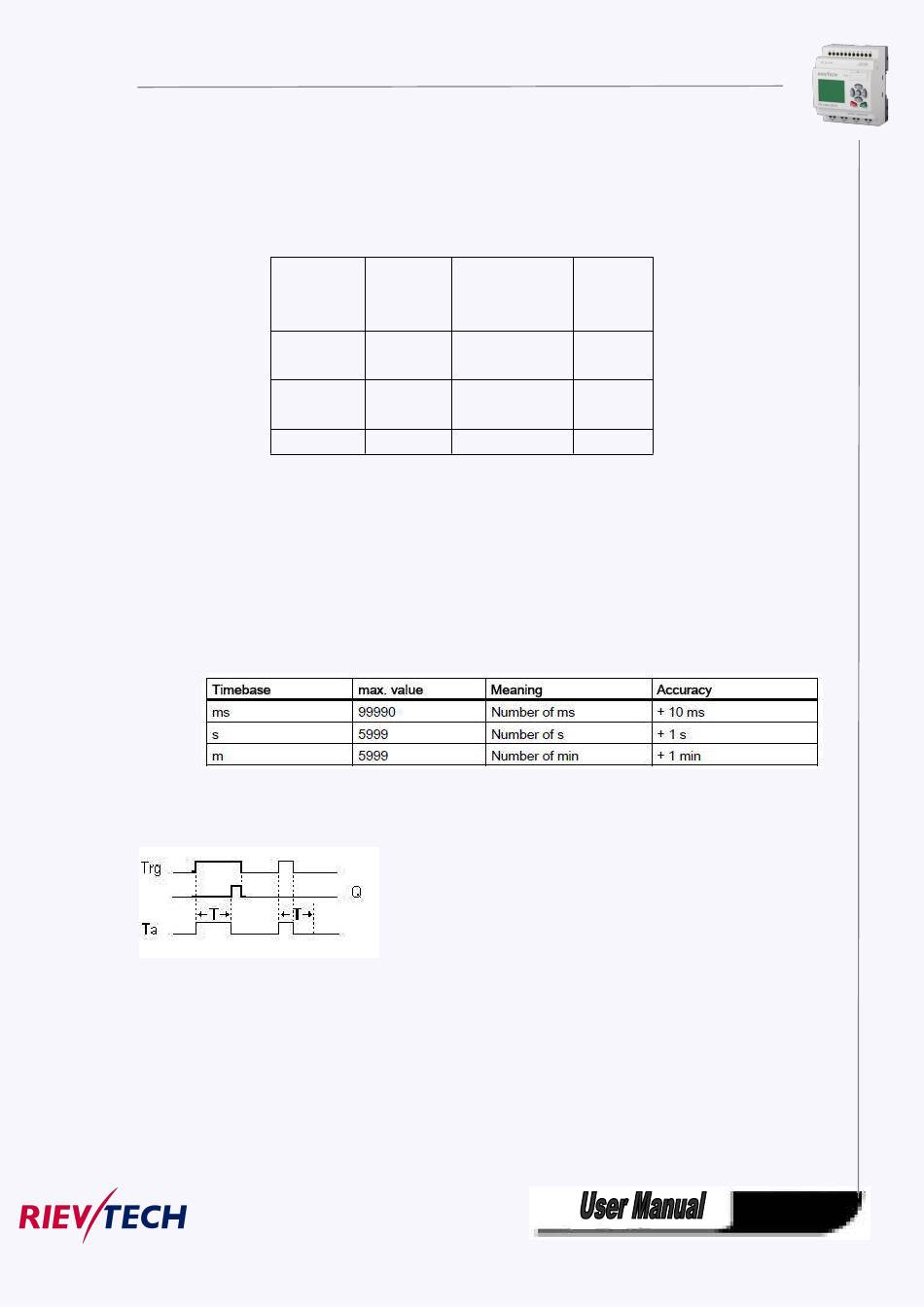

Timing diagram
Description of the function
The time Ta (the current time in xLogic) is triggered with the 0 to 1 transition at input Trg.
If the status at input Trg stays 1 at least for the duration of the configured time T, the output is set to 1
when this time has expired (the on signal of the output follows the on signal of the input with delay).
The time is reset if the status at input Trg changes to 0 again before the time T has expired.
The output is reset to 0 when input Trg is 0.
Max. Min. resolution
value
99:99 10 ms
99:59 1s
99:59 1 min
Accuracy
± 10 ms
± 1 s
± 1 min
