Automatic Gate - Rievtech xLogic ELC Series User Manual

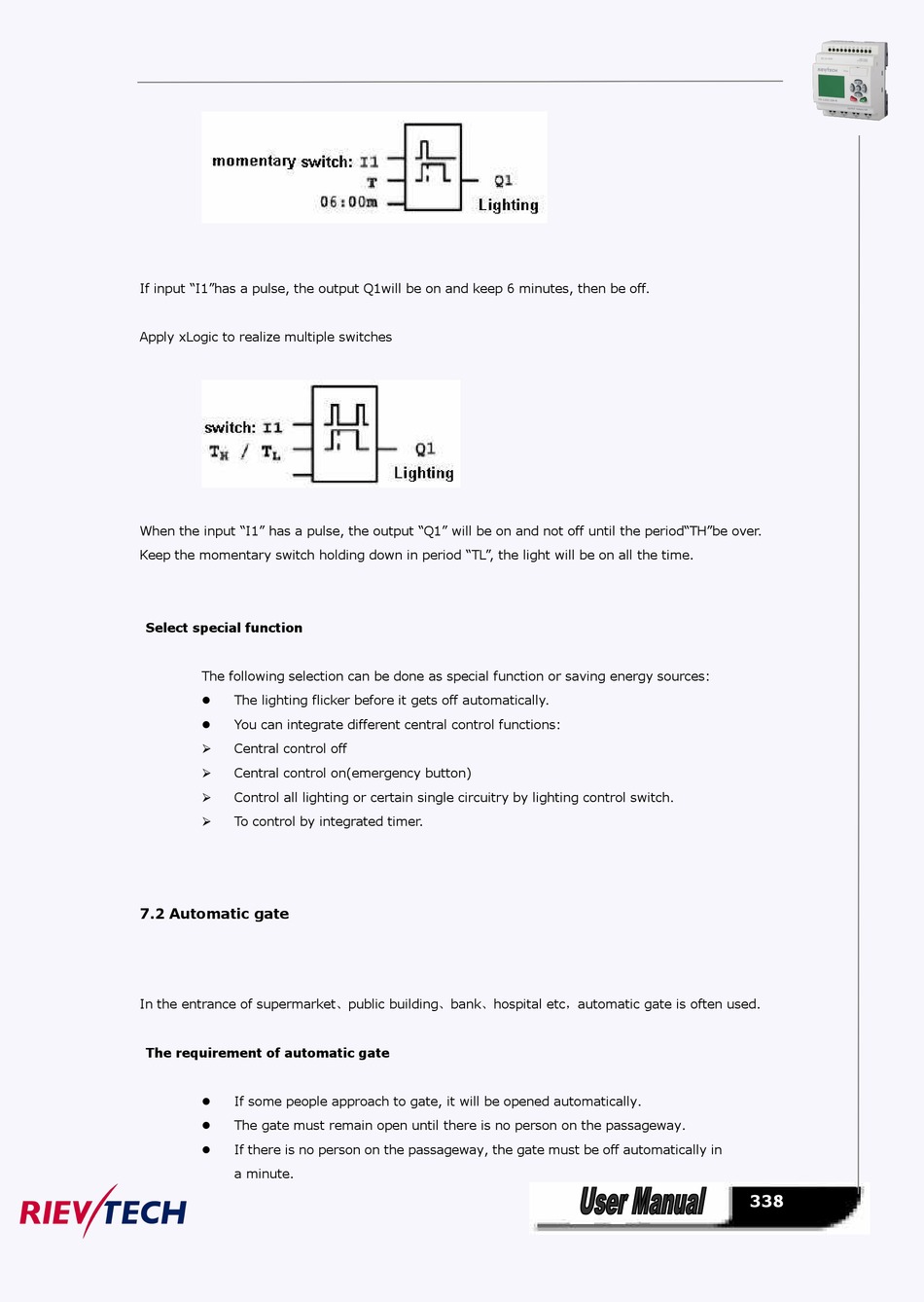

If input "I1"has a pulse, the output Q1will be on and keep 6 minutes, then be off.
Apply xLogic to realize multiple switches
When the input "I1" has a pulse, the output "Q1" will be on and not off until the period"TH"be over.
Keep the momentary switch holding down in period "TL", the light will be on all the time.
Select special function
The following selection can be done as special function or saving energy sources:
The lighting flicker before it gets off automatically.

You can integrate different central control functions:

Central control off

Central control on(emergency button)

Control all lighting or certain single circuitry by lighting control switch.

To control by integrated timer.


7.2 Automatic gate

In the entrance of supermarket、public building、bank、hospital etc，automatic gate is often used.
The requirement of automatic gate
If some people approach to gate, it will be opened automatically.

The gate must remain open until there is no person on the passageway.

If there is no person on the passageway, the gate must be off automatically in

a minute.
