5.5.37 Memory write

Fashion:
Short Description
Only when there is a low to high trigger at Trg pin, the Memory Write block will be activated and the
pre-configured record action will be performed, at the same time the output will switch on if the record
action had been done successfully.
Connection Description
Trg input
Only when there is a low to high trigger at Trg pin, the Memory
write Read block will be activated and the pre-configured record
action will be performed. Each trigger, only write once.
Input R Reset the Memory Write block and set the output to 0 via the R
(Reset) input. Reset has priority over Trg
Output Q
Q switches on only after Write function had been executed
correctly.

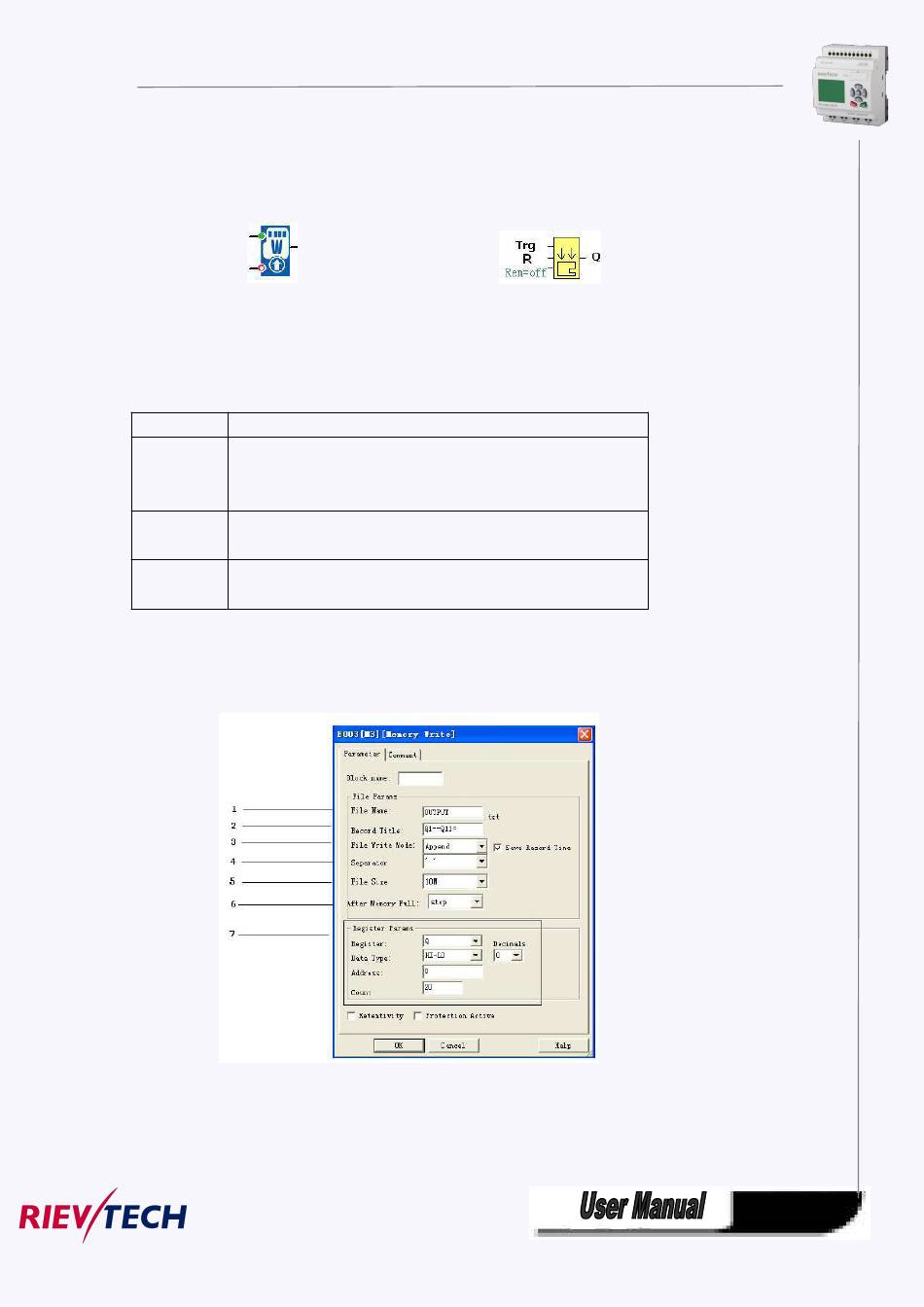

Description of Memory write block's property dialog box :
1. File name
Place where you can set the name of the file used to save the registers' data
Classic:
