Rievtech xLogic ELC Series User Manual page 48

A password contains less than or equal to 4 characters and each character is Arabian number from 0 to
9 .It is easy to specify, edit or remove the password directly on the xLogic in the "Password" menu of the
function page:
You should first select the FUNCTION PAGE. (Read 5.2)
1. Move the cursor to "Password": Press "UP" or "DOWN" key.
2. Confirm "Password": Press OK key.

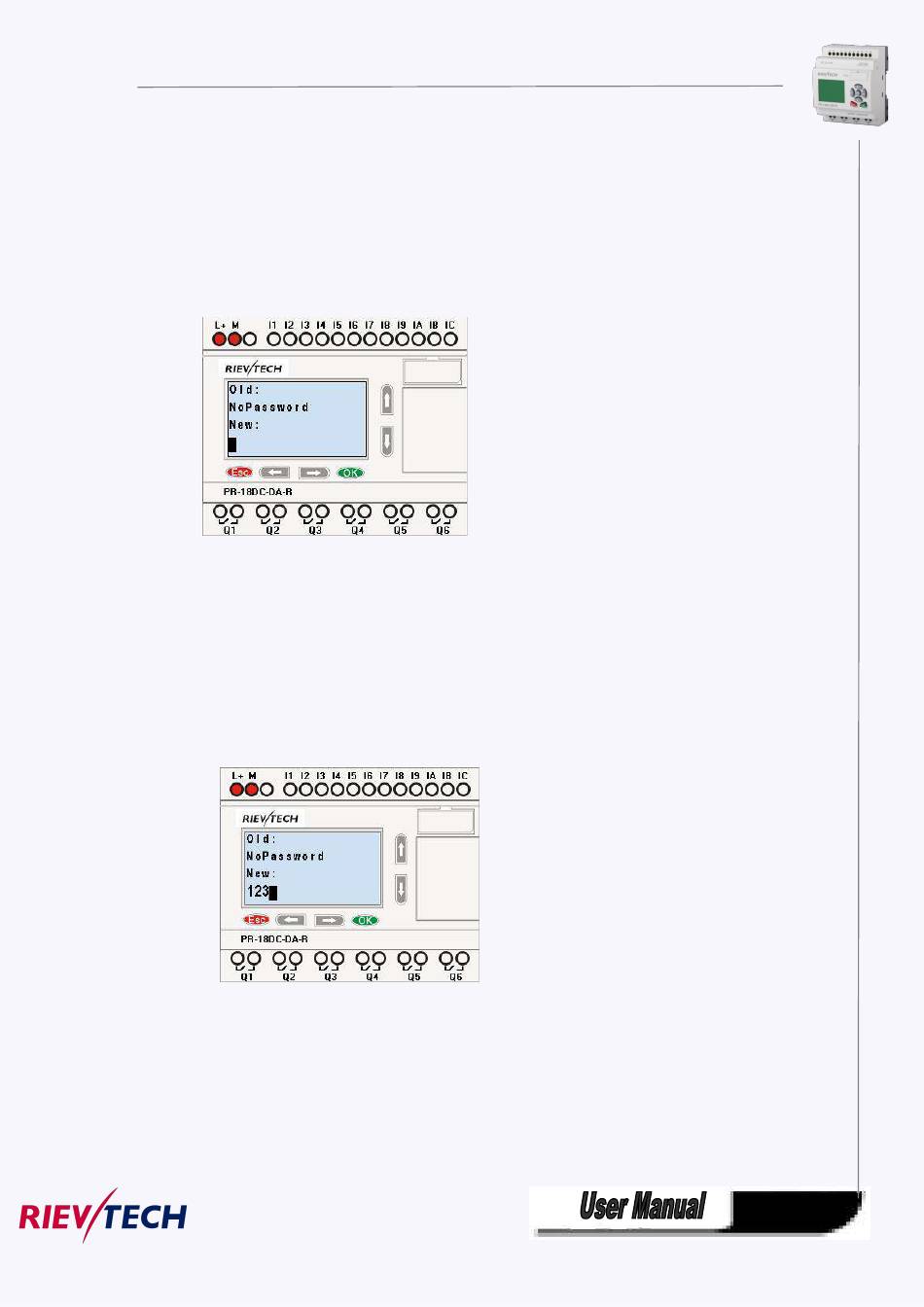

Example: let us set "1234" as password for a program. Now the LCD displays the following interface:
Select "New" option, and then edit it.
3. Select "1": press "UP" key once.
4. Move the cursor to the next character: press "Right" key.
5. Select "2": press "UP" key twice.
6. Move the cursor to the next character: press "Right" key.
7. Select"3": press "UP" key three times.
8. Move the cursor to the next character: press "Right" key.
9. Select "4": press "UP" key four times.
Now display:
10. Confirm password: press OK key.
Now, the program is protected by the password of "1234", and then you can return to the main menu.
Note:
You can cancel a password newly-set via ESC key. In this instance, xLogic will return to main menu and
not reserve that password. Such password is for the parameter, that means only when you operate the
menu of LCD, the password is required. The program password need be set in xlogicosoft by the menu
File->Property-> Parameter
