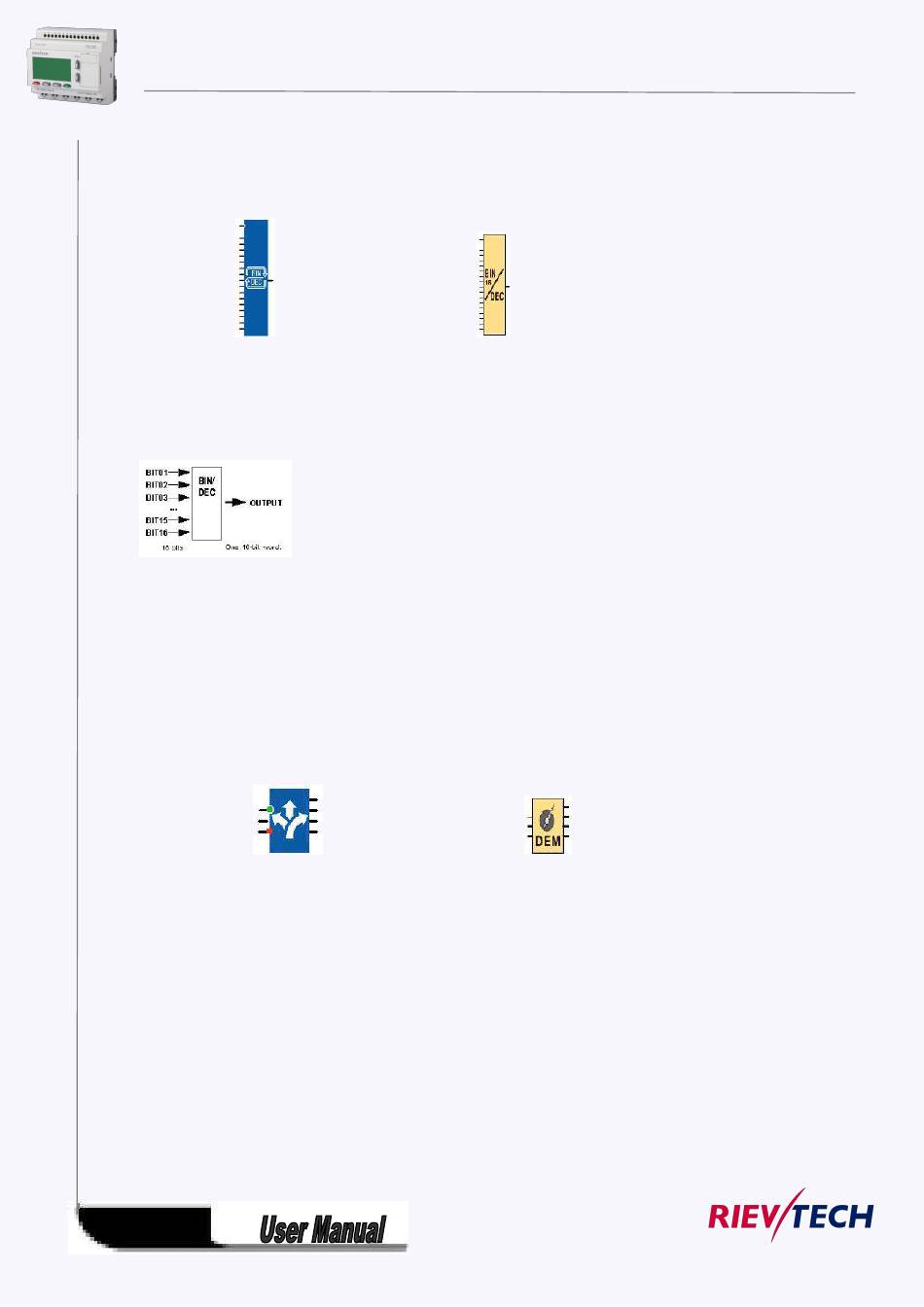

5.5.56 Conversion bits Word

Fashion: Classic:
Short Description
When the "En" is high, the BIN/DEC function produces a 16-bit integer-type output from 16 inputs of the
following type: Bit
Inputs/Outputs
This function supports 16 discrete inputs: BIT01 (least significant byte) ... BIT16 (most significant byte).
This function supports one 16-bit integer-type output.

5.5.57 Demultiplexer

Fashion: Classic:
This function demultiplexer integers. It is used to route the input value onto one of the 4 OUTPUTS on
each rising edge of the VALIDATION input.
A VALUE copied to an output does not revert to 0 when a VALUE is written to another ADDRESS.
The BASE ADDRESS parameter allows several blocks to be used at the same time to multiply outputs.
The Parameters tab contains:
BASE ADDRESS: Contains the address of the ADDRESS 1 output.
Retentivity: Chooses whether or not the function is reinitialised if the controller power supply is
disconnected.
When they are not connected, the ADDRESS and VALUE inputs are set to zero.
Example:
When the BASE ADDRESS parameter contains the value 0 these outputs have addresses 0, 1, 2, 3
respectively, and in this case if the ADDRESS input equals 2 the VALUE will be copied to the third output.
If a second block is being used, 8 outputs can be demultiplexed by putting the value 4 as the BASE
