Notes:
1.The FORWARD input takes priority over the BACKWARD input.
2.If the FORWARD and REVERSE inputs are not connected, they are set to inactive.
When selected, the "Retentivity" enables the current value of the timer to be retrieved following a power
failure.

5.5.49 Angular Cam Timer

Fashion:
Short description
This function block is used to describe operation of a cam timer based on the angle made by the cams
as the analog input. The number of steps can be selected and each step corresponds 2
configurable outputs.
Connection Description
Input Enables the function. If this input is not activated, the function remains inactive.
VALIDATION: Activated implicitly if it has not been connected.
Input ANGLE:
Timer command input (from 0° to 359°). The outputs vary according to this value
205

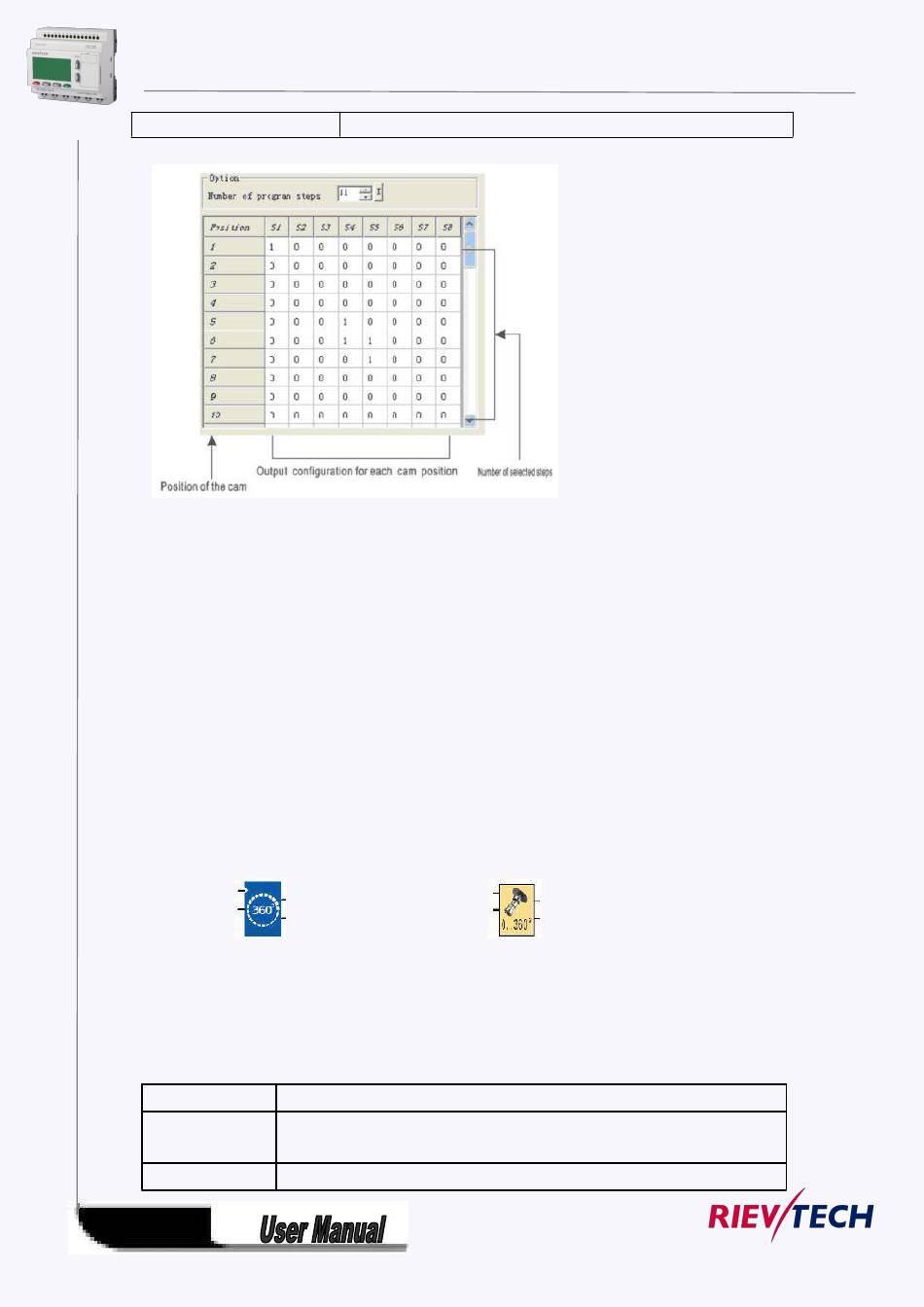

The following figure shows an example of a part of parameters window:
Classic:
