This input will not be connected. Here, you configure the time patterns.
P (Priority):
This is an open input. Here, you define priorities and specify whether a message is to be acknowledged
in RUN.

5.4.2 Time response

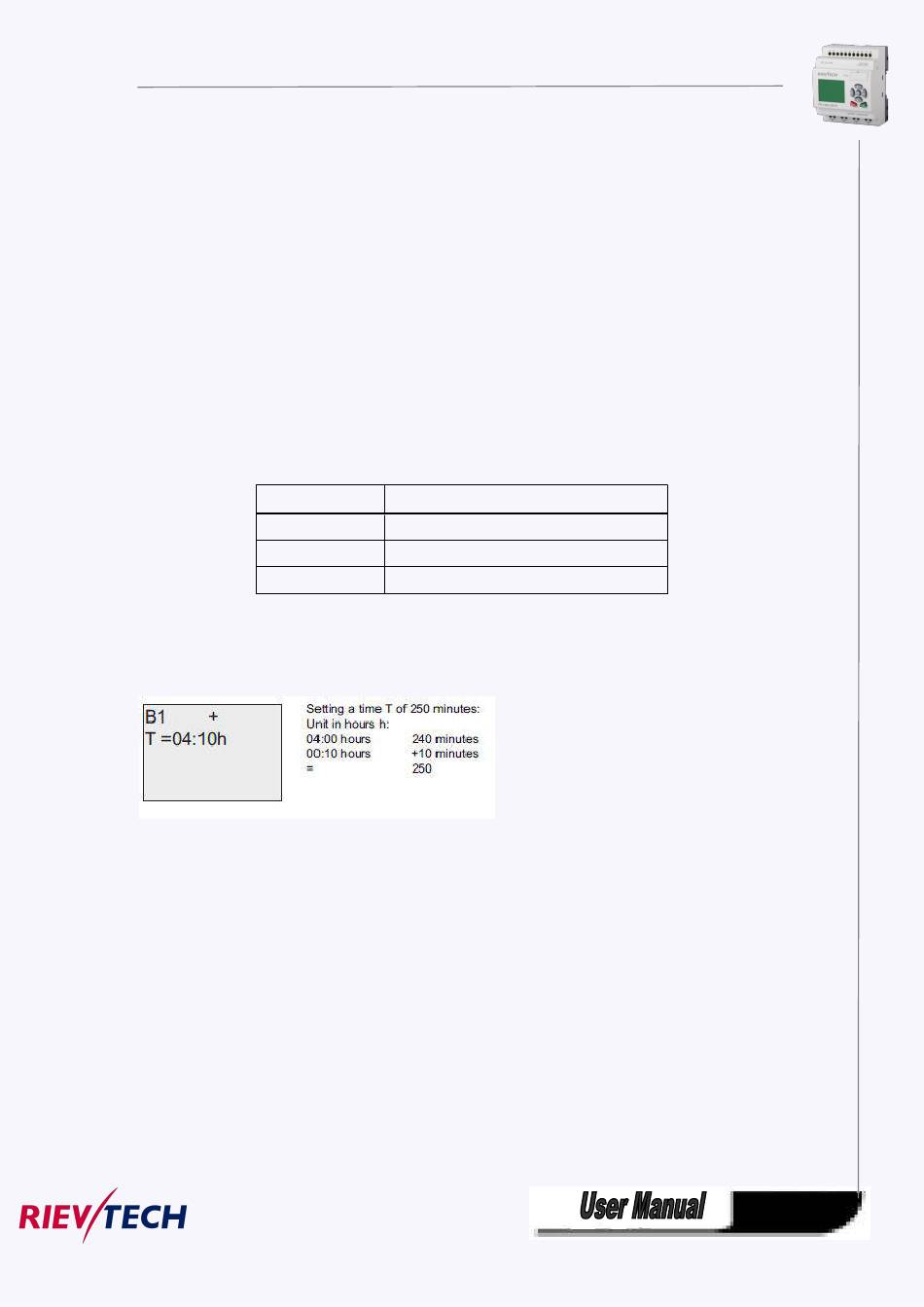

Parameter T
In some of the SFs it is possible to configure a time value T. When you preset this time, note that your
input values are based on the time base set:
Time base
s (seconds)
m (minutes)
h (hours)
Accuracy of T
Because of slight tolerances in the characteristics of electronic components, the set time T may deviate. The
xLogic has a maximum tolerance of ± 0.02 %.
When 0.02 % of the time T is smaller than 0.02 seconds, the maximum deviation is 0.02 seconds.
Example: The maximum tolerance per hour (3600 seconds) is ±0.02%, which is proportional to ± 0.72
seconds. The maximum tolerance per minute (60 seconds) is ± 0.02 seconds.
Accuracy of the timer (weekly/yearly timer)
The maximum timing in accuracy is ± 5 s/day.

5.4.3 Backup of the real-time clock

_ _ : _ _
seconds : 1 /100 seconds
minutes : seconds
hours : minutes
