Analog Amplifier - Rievtech xLogic ELC Series User Manual

Note
The decimal point setting must be identical in the min. and max. range.

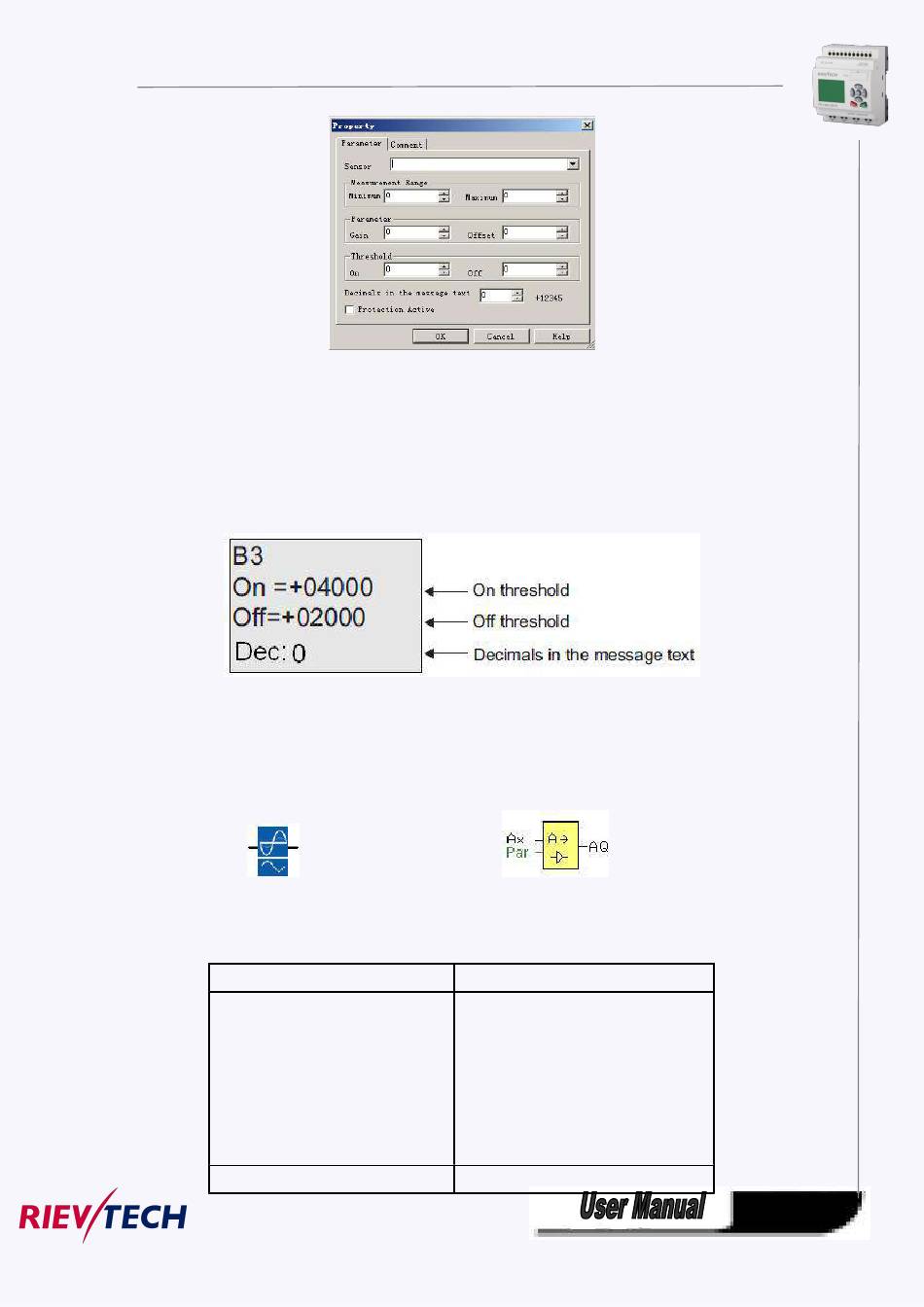

View in parameter assignment mode (example):

5.5.23 Analog amplifier

Fashion:
Short description
This SFB amplifies an analog input value and returns it at the analog output.
Connection
Input Ax
Parameter
Classic:
Description
Input the analog signal to be
amplified at input Ax.
Use the analog inputs
AI1...AI8, the analog outputs
AQ1 and AQ2.
AI1..AI8: 0 - 10 V corresponds
with 0 - 1000 (internal value).
A: Gain
