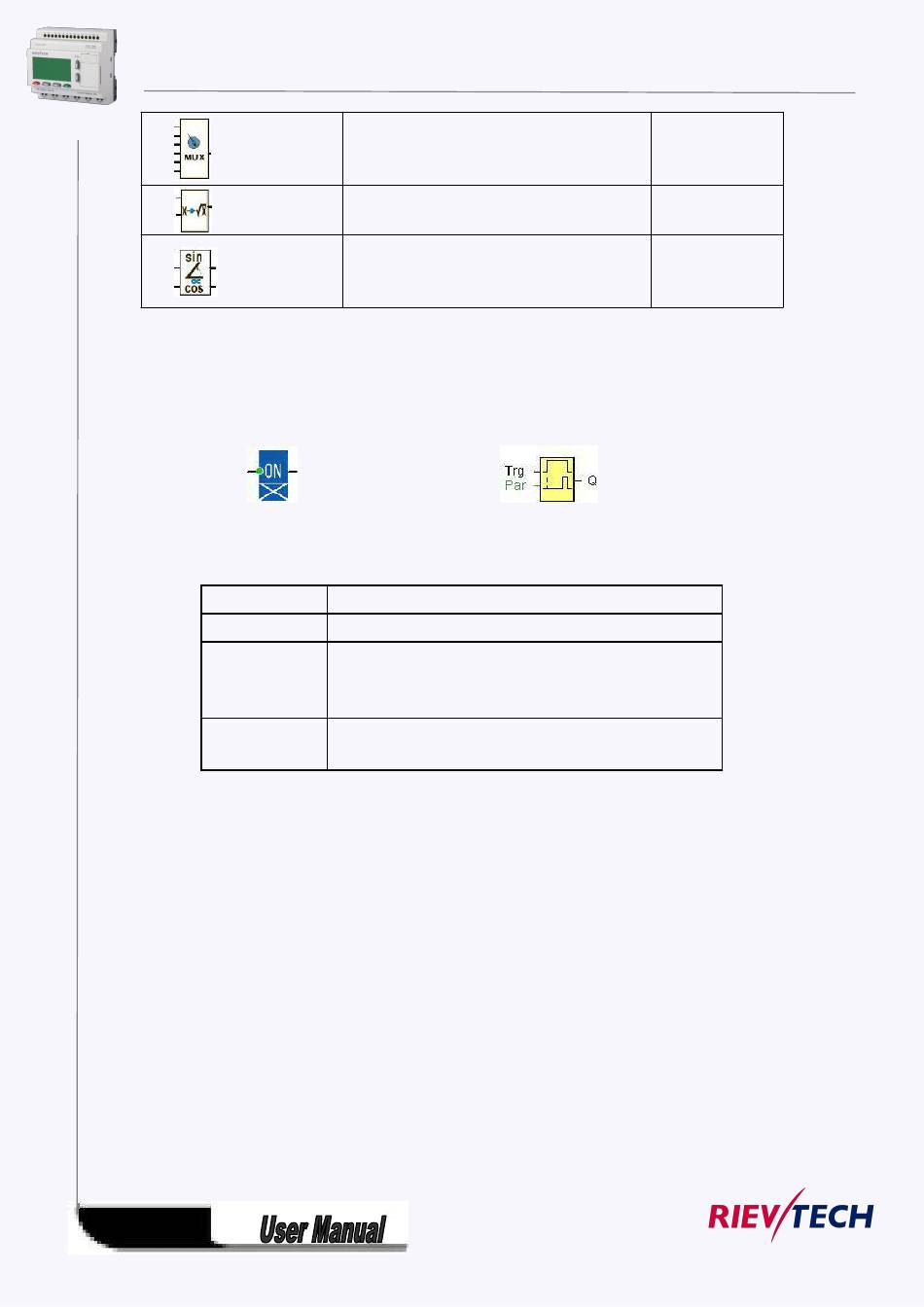

5.5.1 On-delay

Fashion:
Short description
The output is not switched on until a configured delay time has expired.
Connection
Trg input
Parameter
Output Q
Parameter T
The time for parameter T can also be preset based on the actual value of another, already-configured
function. You can use the actual values of the following functions:
Analog comparator: Ax - Ay
Analog trigger: Ax
Analog amplifier: Ax
Analog multiplexer: AQ
Analog ramp: AQ
Analog math: AQ
PI controller:AQ
Data latching relay: AQ
Up/Down counter: Cnt
You select the required function via the block number. Time-base can be adjusted.
The value of ＂T＂ can be set/modified in parameter mode. For information about how to modify，refer
83
Multiplexer
Square root
Sin Cos
Classic:
Description
The on delay time is triggered via the Trg (Trigger) input
T represents the on delay time after which the output is
switched on (output signal transition 0 to 1).
Retentivity on = the status is retentive in memory.
Q switches on after a specified time T has expired, provided Trg
is still set.
