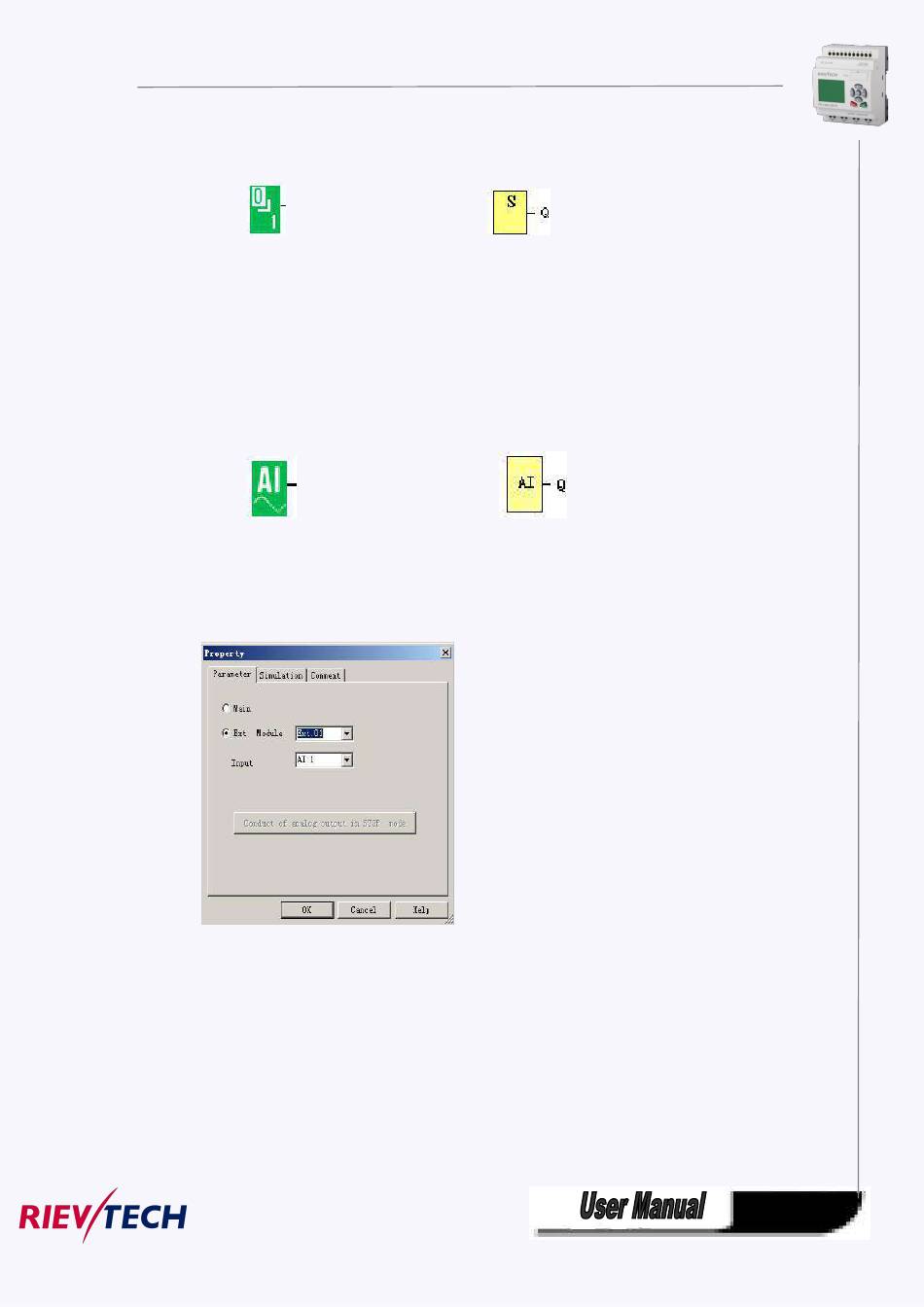

5.2.6 Shift register bits

Fashion: Classic:
xLogic provides the shift register bits S1 to S8, which are assigned the read-only attribute in the circuit
program. The content of shift register bits can only be modified by means of the Shift register special
function

5.2.7 Analog inputs

Fashion: Classic:
You can use up to 36 analog inputs. In your block configuration, you can assign a new input terminal to
an input block, provided this terminal is not already used in the circuit program.
For help on analog block parameter, refer to Information on analog value processing.
Note:
AI11 means the AI1 input of the expansion with address 1.
AI82 means the AI2 input of the expansion with address 8.
Based on different analog input signals, you need select different sensor type in the analog blocks, you
need use an analog amplifier with the AI input, and select the corresponding sensor type for DC0..10V,
0/4..20mA or PT100 input.
