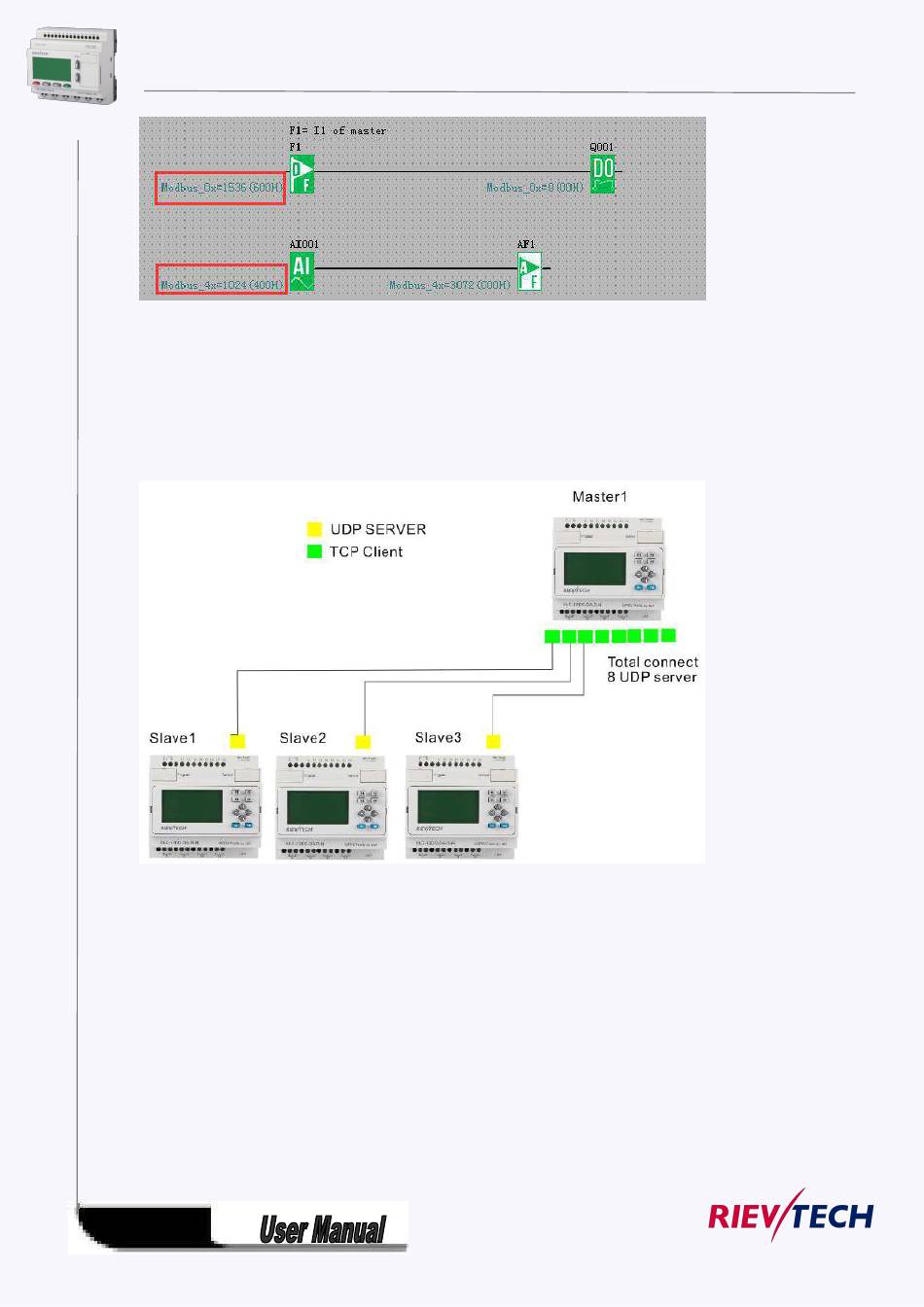

6.6.4 Example4: One master CPU(UDP Client) connect with 3 slave CPUs(UDP
Servers)
Requirement:
1.If I1 of Master is ON/OFF, the Q1 of slave1---slave3 are ON/OFF.
2.Read the AI2 value from the slave1--slave3 to master and display.
Step1: Configure the IP configuration of the PLCs.
Master
IP: 192.168.0.100
UDP Server port 8000
Target1 UDP 192.168.0.101, Port :8001
Target2 UDP 192.168.0.102, Port :8002
