Parameter
Output Q
Parameter p (number of decimals)
Applies only to the display of On, Off and Ax values in a message text.
Does not apply to the comparison of On and Off values! (The compare function ignores the decimal
point.)

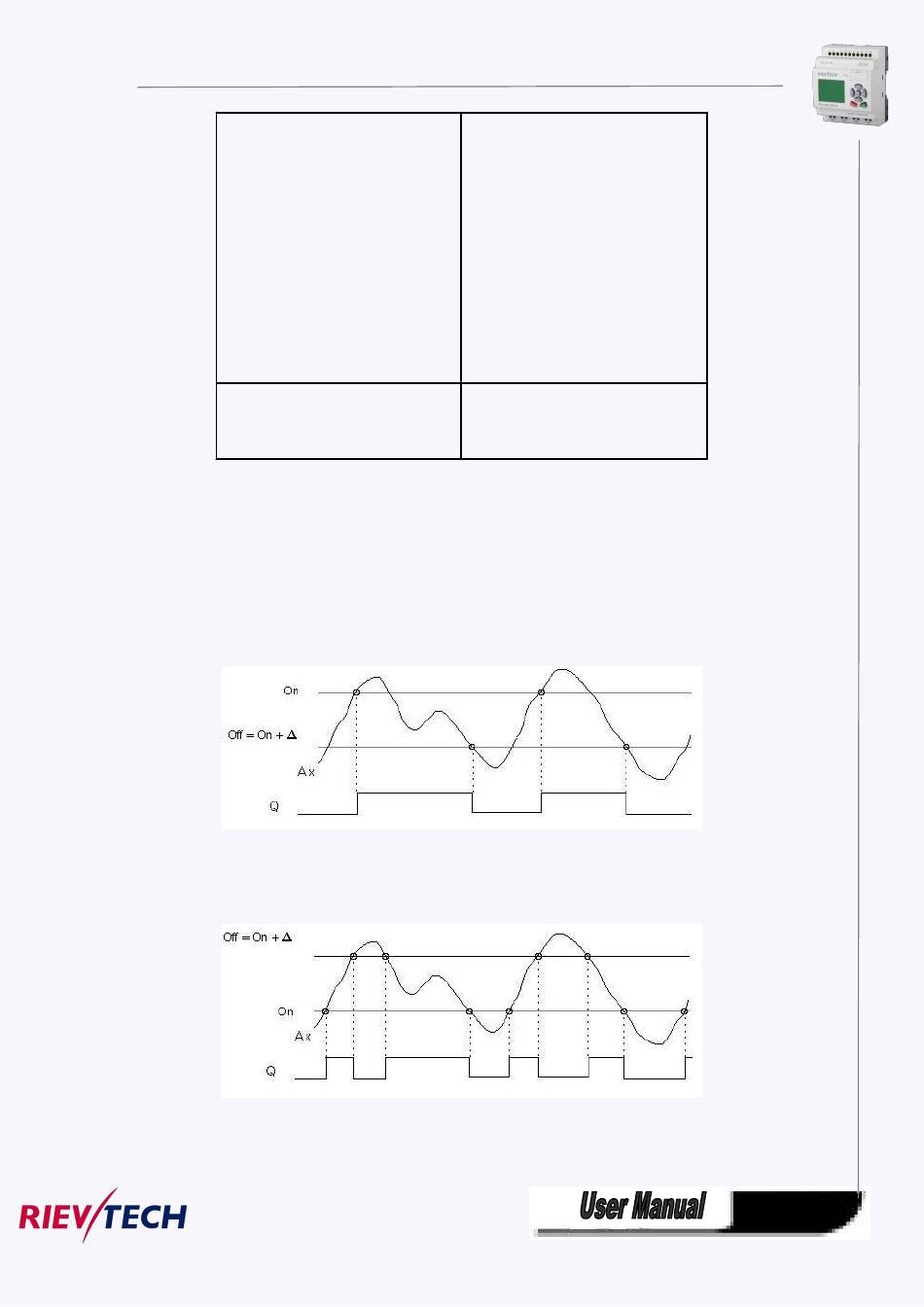

Timing diagram A: Function with negative difference Delta
Timing diagram B: Function with positive difference Delta
Description of the function
The function fetches the analog signal at input Ax.
Ax is multiplied by the value of the A (gain) parameter, and the value at parameter B (offset) is added to
A: Gain
Range of values: ± 10.00
B: Zero offset
Range of values: ± 10,000
On: On threshold
Range of values: ±20,000
Delta: Differential value for
calculating the off parameter
Range of values: ± 20,000
p: Number of decimals
Range of values: 0, 1, 2, 3
Q is set or reset, depending
on the threshold and
difference values.
