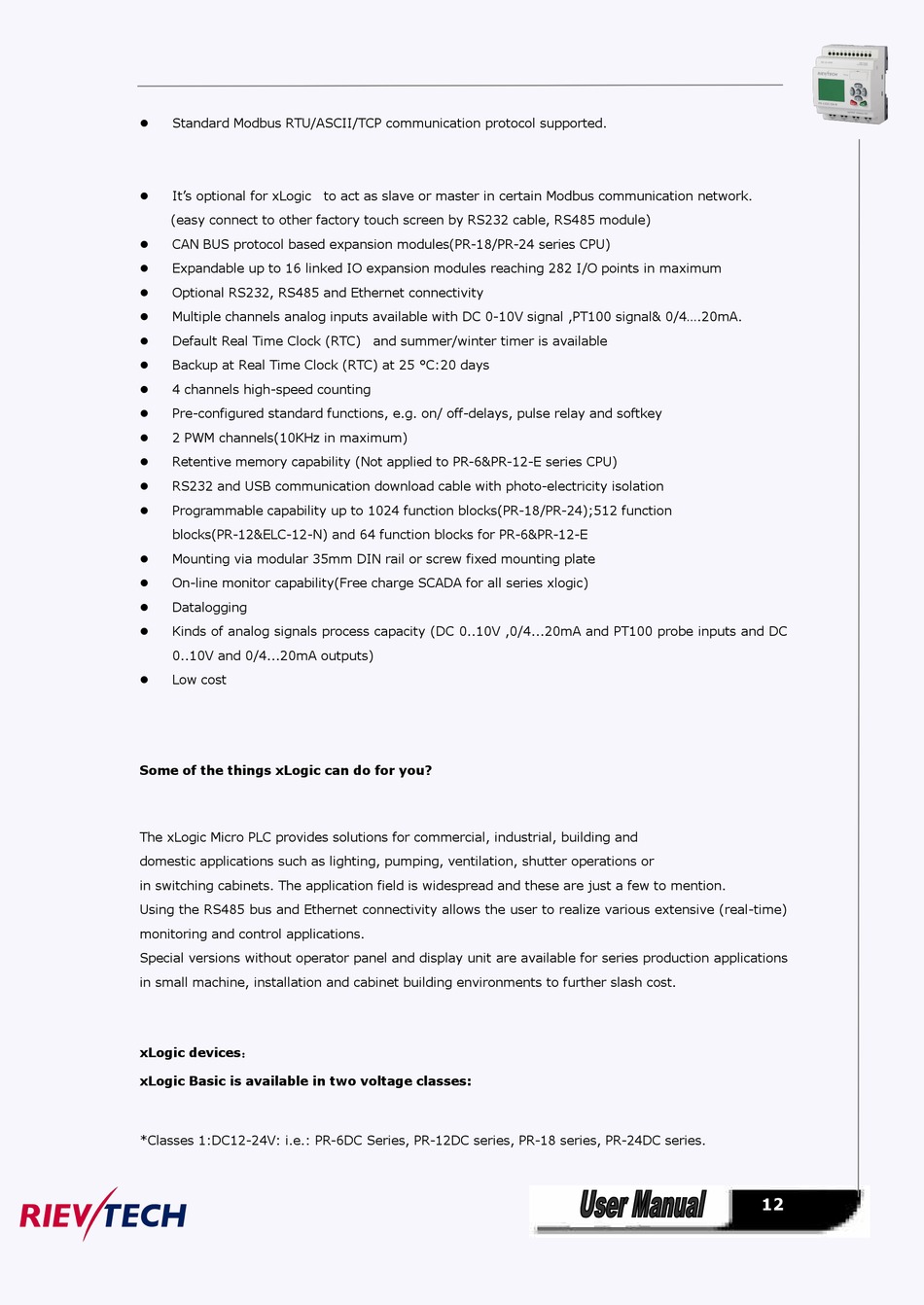

Rievtech xLogic ELC Series User Manual page 12

Standard Modbus RTU/ASCII/TCP communication protocol supported.

It's optional for xLogic to act as slave or master in certain Modbus communication network.

(easy connect to other factory touch screen by RS232 cable, RS485 module)
CAN BUS protocol based expansion modules(PR-18/PR-24 series CPU)

Expandable up to 16 linked IO expansion modules reaching 282 I/O points in maximum

Optional RS232, RS485 and Ethernet connectivity

Multiple channels analog inputs available with DC 0-10V signal ,PT100 signal& 0/4....20mA.

Default Real Time Clock (RTC) and summer/winter timer is available

Backup at Real Time Clock (RTC) at 25 °C:20 days

4 channels high-speed counting

Pre-configured standard functions, e.g. on/ off-delays, pulse relay and softkey

2 PWM channels(10KHz in maximum)

Retentive memory capability (Not applied to PR-6&PR-12-E series CPU)

RS232 and USB communication download cable with photo-electricity isolation

Programmable capability up to 1024 function blocks(PR-18/PR-24);512 function

blocks(PR-12&ELC-12-N) and 64 function blocks for PR-6&PR-12-E
Mounting via modular 35mm DIN rail or screw fixed mounting plate

On-line monitor capability(Free charge SCADA for all series xlogic)

Datalogging

Kinds of analog signals process capacity (DC 0..10V ,0/4...20mA and PT100 probe inputs and DC

0..10V and 0/4...20mA outputs)
Low cost

Some of the things xLogic can do for you?
The xLogic Micro PLC provides solutions for commercial, industrial, building and
domestic applications such as lighting, pumping, ventilation, shutter operations or
in switching cabinets. The application field is widespread and these are just a few to mention.
Using the RS485 bus and Ethernet connectivity allows the user to realize various extensive (real-time)
monitoring and control applications.
Special versions without operator panel and display unit are available for series production applications
in small machine, installation and cabinet building environments to further slash cost.
xLogic devices：
xLogic Basic is available in two voltage classes:
*Classes 1:DC12-24V: i.e.: PR-6DC Series, PR-12DC series, PR-18 series, PR-24DC series.
