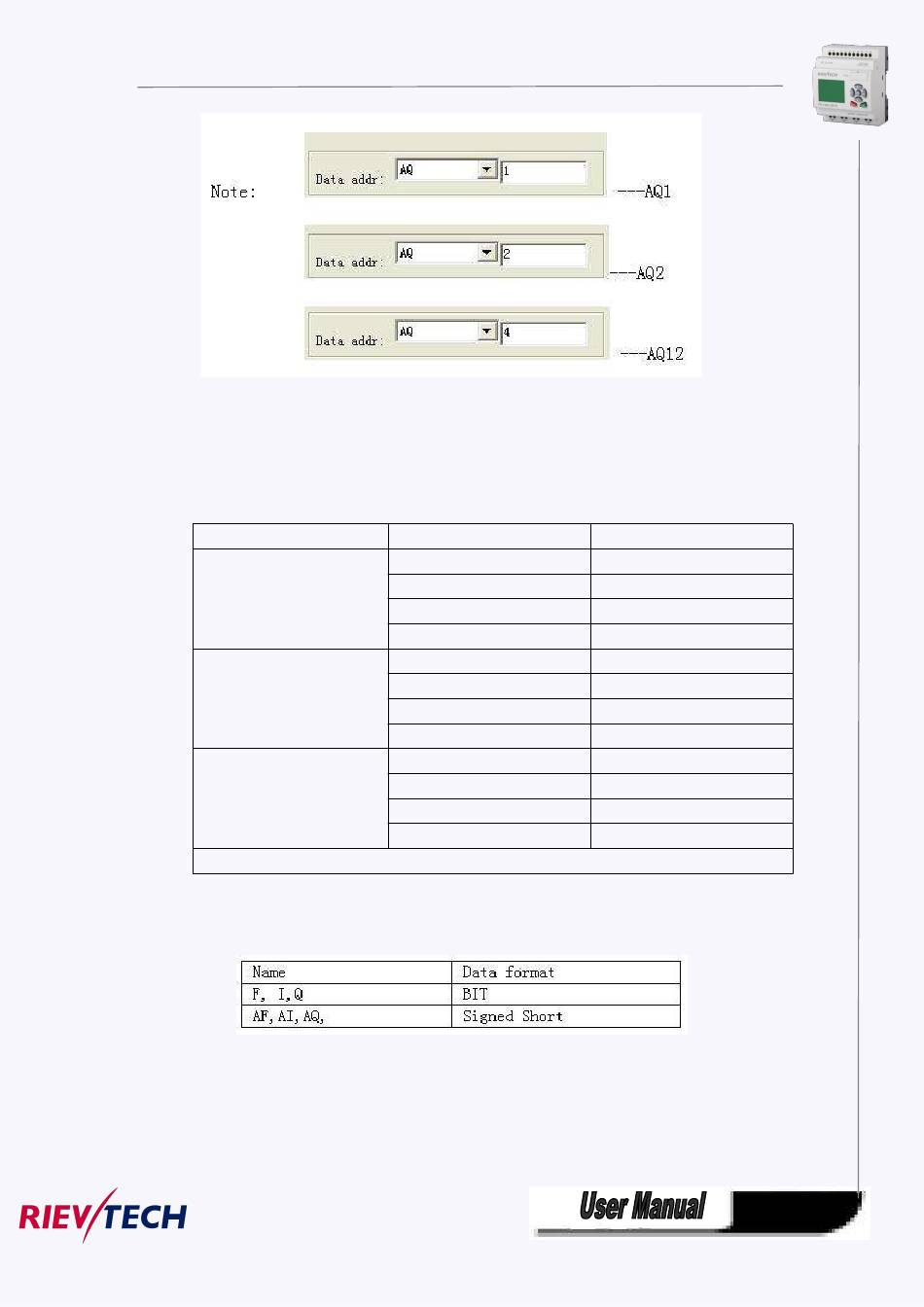

The number setting of Q,I,AQ are continuous .AQ12 cannot be set as AQ 12 and should be set AQ 4 as
above figure shows.
The following table shows how to set.
Note: this table also can be applied for the configuration of Modbus Write function block.
Model
CPU
Expansion1
(Address is 1)
Expansion2
(Address is 2
................
Data format instruction
I,Q,AI,AQ
I1-I8
Q1-Q4
AI1—AI8
AQ1—AQ2
I11-I14
Q11-Q14
AI11-AI14
AQ11-AQ12
I21-I24
Q21-Q24
AI21-AI24
AQ21-AQ22
Dialog box set
I1-I8
Q1-Q4
AI1—AI8
AQ1—AQ2
I9-I12
Q9-Q12
AI9—AI12
AQ3,AQ4
I18—I21
Q17—Q19
AI17---AI24
AQ5--AQ6
156
