program, we have combined the advantages of both the current impulse relay and the automatic
stairway lighting timer as follows:

Actuate the pushbutton
expiration of a predefined time.

Hold the pushbutton down

Press the pushbutton once more

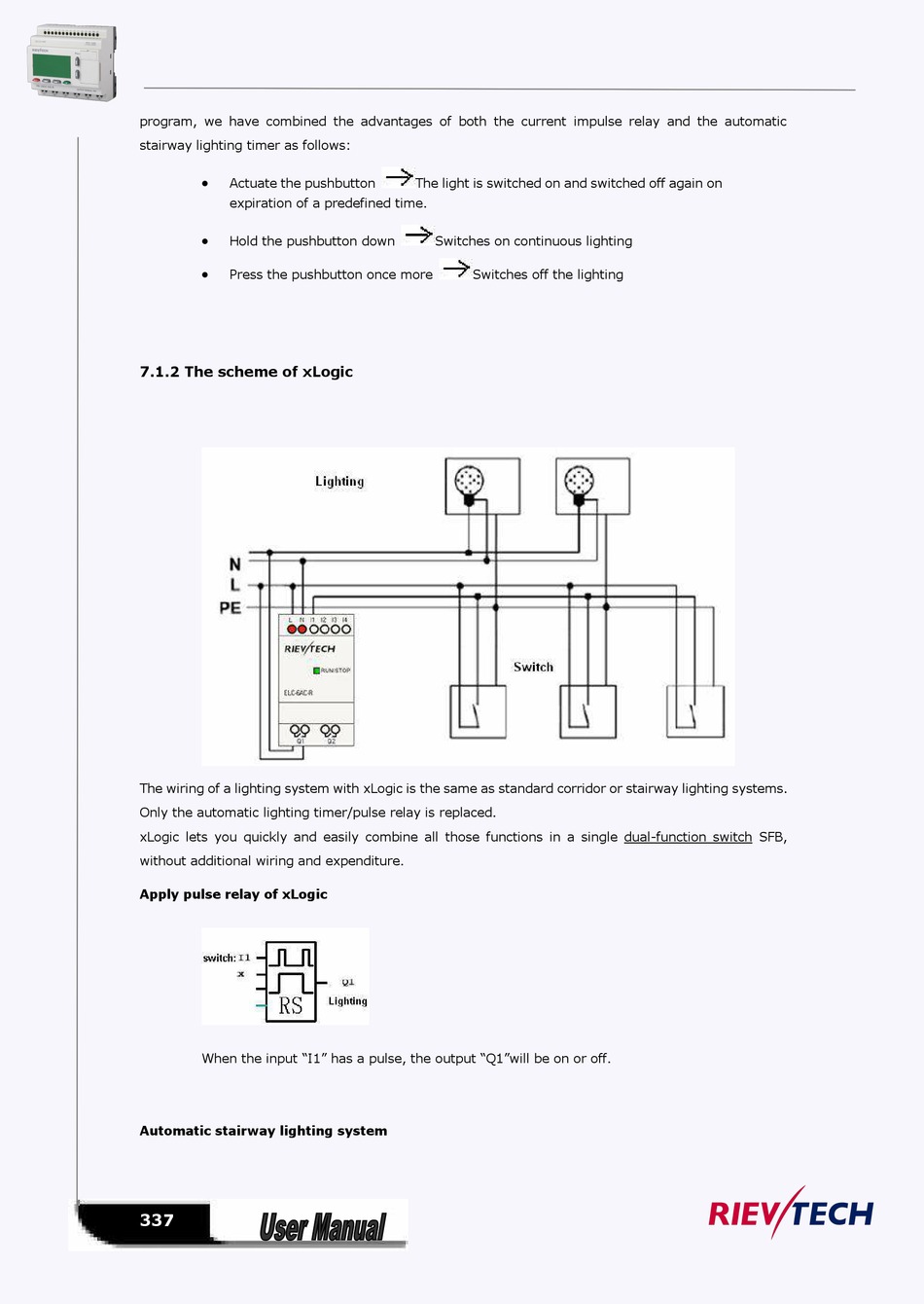

7.1.2 The scheme of xLogic

The wiring of a lighting system with xLogic is the same as standard corridor or stairway lighting systems.
Only the automatic lighting timer/pulse relay is replaced.
xLogic lets you quickly and easily combine all those functions in a single dual-function switch SFB,
without additional wiring and expenditure.
Apply pulse relay of xLogic
When the input "I1" has a pulse, the output "Q1"will be on or off.
Automatic stairway lighting system
337
The light is switched on and switched off again on
Switches on continuous lighting
Switches off the lighting
