Please refer the property dialog box of B003, it can record the output status .The start address is from 0
and it must record the 20 outputs with continuous addresses.

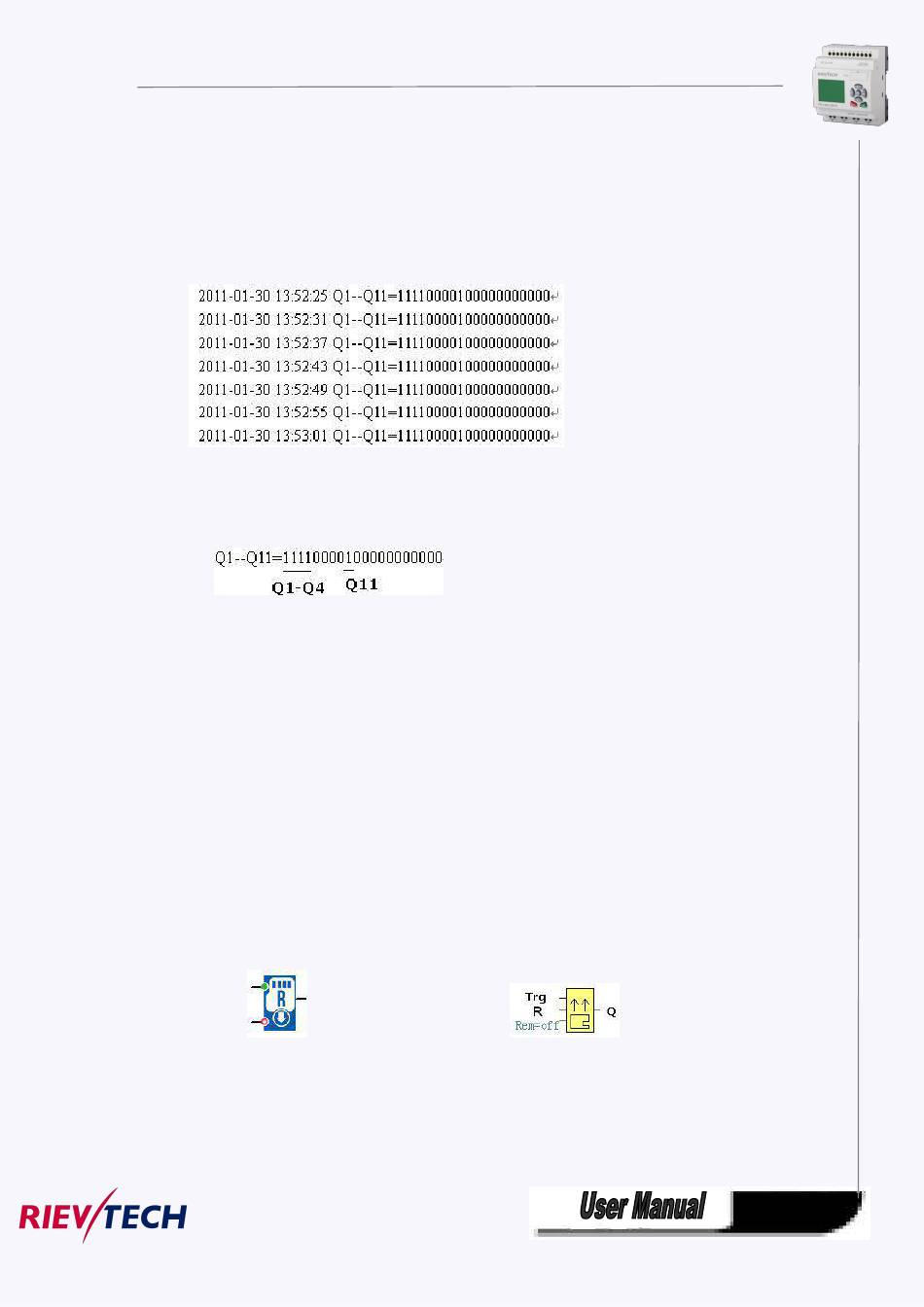

And the record file shows below:
Per program, every 6 seconds the record will do once, and the Q1, Q2, Q3, Q4, Q11 will be all "ON". You
can see the record file and you'll see the recording time and the status of the output.
Notes: 1.The ELC-MEMORY only can be inserted into the RS232 port ( programming port) of ELC series
CPU.
2.If this function block is working ,the RS232 port ( programming port) will be occupied ,some data will
be being transferred , if you want to use the programming port for some purposes (for example download
or upload program) , you must make sure the Trg pin of this block keeps at Low status or stop the CPU
by panel key.

5.5.38 Memory Read

Fashion: Classic:
Short Description
Only when there is a low to high trigger at Trg pin, the Memory Read block will be activated once and
xLogic CPU will read correlative data (bit or short) to set pre-configured register from the file in the SD
card of ELC-MEMORY module, at the same time the output will switch on if the read action had been done
successfully.
