Parameter
The pulse width TH and the inter-pulse width TL can be provided by the actual value of another
already-programmed function:
Analog comparator: Ax – Ay
Analog trigger: Ax
Analog amplifier: Ax
Analog multiplexer: AQ
Analog ramp: AQ
Analog math: AQ
PI controller: AQ
Data latching relay: AQ
Up/Down counter: Cnt
The value of ＂ＴＨ＂，＂ＴＬ＂can be set/modified in parameter mode. For information about how to
modify, refer to chapter 5.2.2 please.

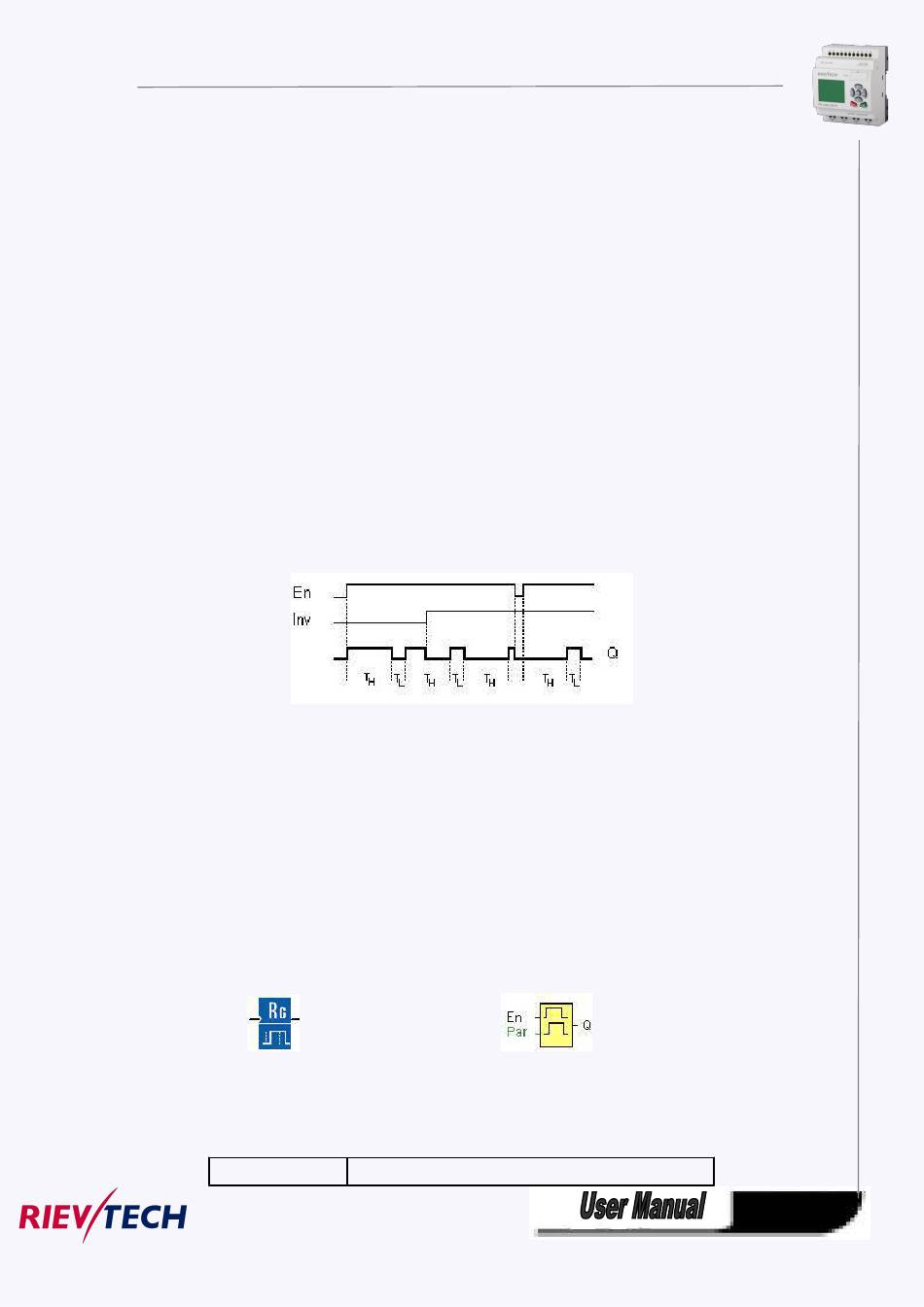

Timing diagram
Description of the function
You can set the pulse/pause ratio at the TH (Time High) and TL (Time Low) parameters.
The INV input can be used to invert the output signal. The input block INV only inverts the output signal
if the block is enabled via EN.
If retentivity is not set, output Q and the expired time are reset after a power failure.

5.5.8 Random generator

Fashion: Classic:
Short description
The output of a random generator is toggled within a configurable time.
Connection Description
92
