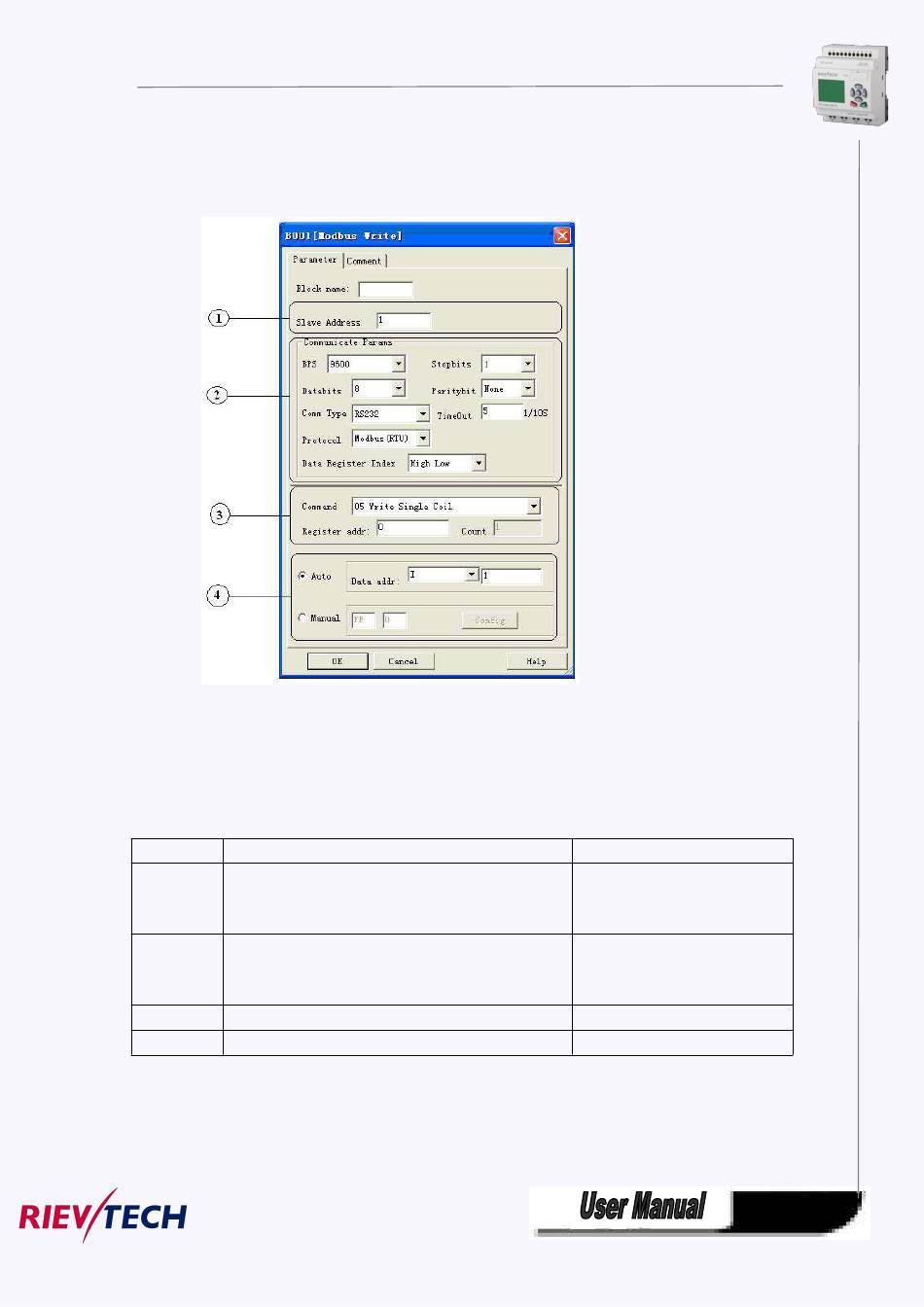

The Property in dialog box of "Modbus Write" shows as below figure:
1. Slave Address: 1 is default
2.Communication parameters： BPS is baud rate、 Stopbits、 Databits、 Communication type: RS232、 RS485 .
Actually RS232 or RS485 are just interface of xLogic.
3. Command, register address and register count
Command Function description
05 Force the switch status of single coil（00000～0XXXX） Force Single Coil
06
Pre-set the data of single register
（40000～4XXXX）
15 Force multi-coils on/off bit（00000～0XXXX）
16 Write multi-holding registers data（40000～4XXXX）
4. Where is to save the pre-configuration data that would be written to Slave. It contains 2 kind ways to
pre-configuration. One is auto mode, this data uses the flags in the program, such as FM, AFM, I, Q and
AQ. The manual mode is input a fixed value or bit status.
remark
（output）
Set single output register
