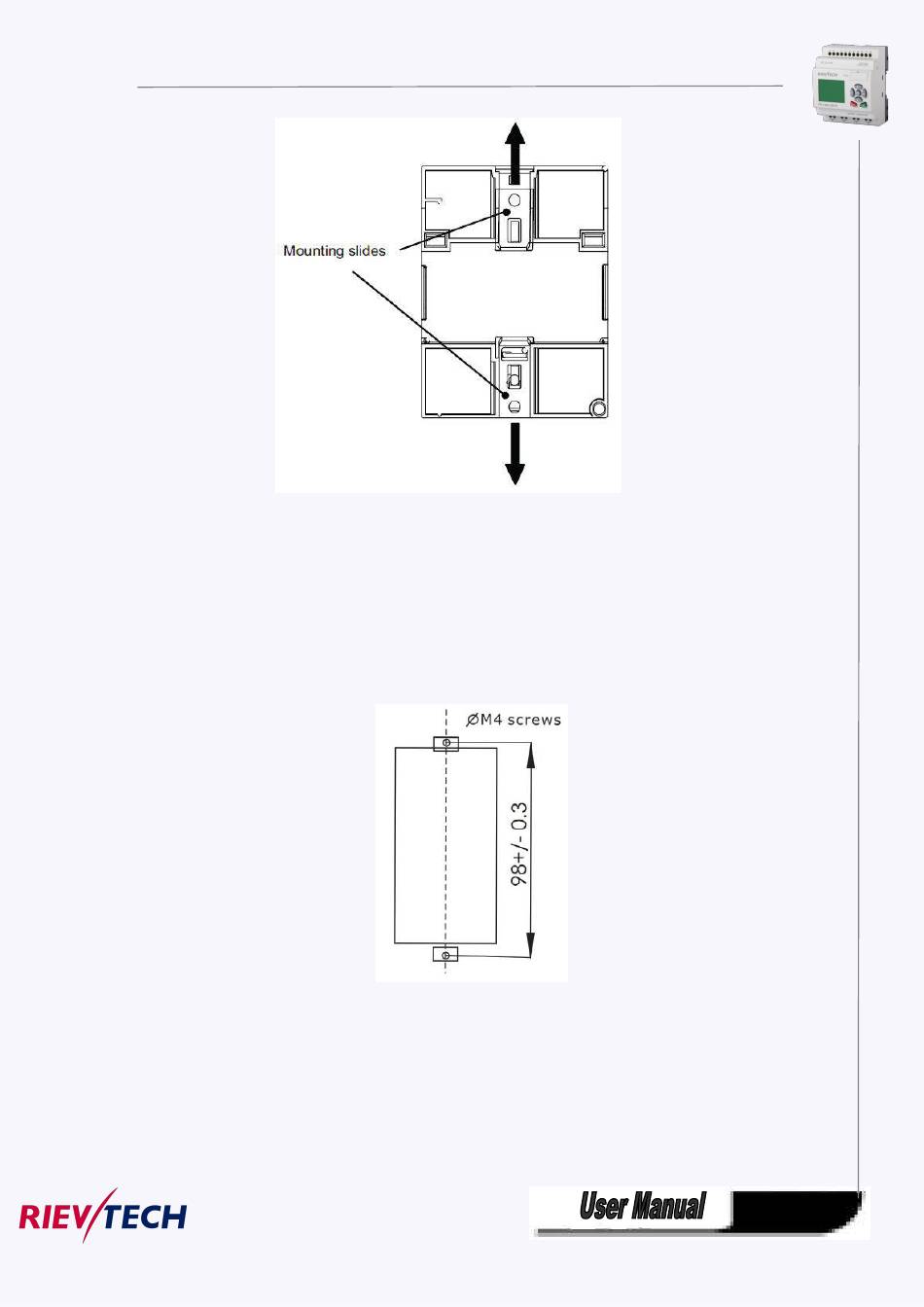

Drilling template for wall-mounting
Before you can wall-mount xLogic, you need to drill holes using the template shown below.
All dimensions in mm
Bore hole for Ø M4 screw, tightening torque 0.8 to 1.2 Nm
1. xLogic CPU
PR-6 series:
PR-12 Series CPU
