I85 means the I5 input of the expansion with address 8.

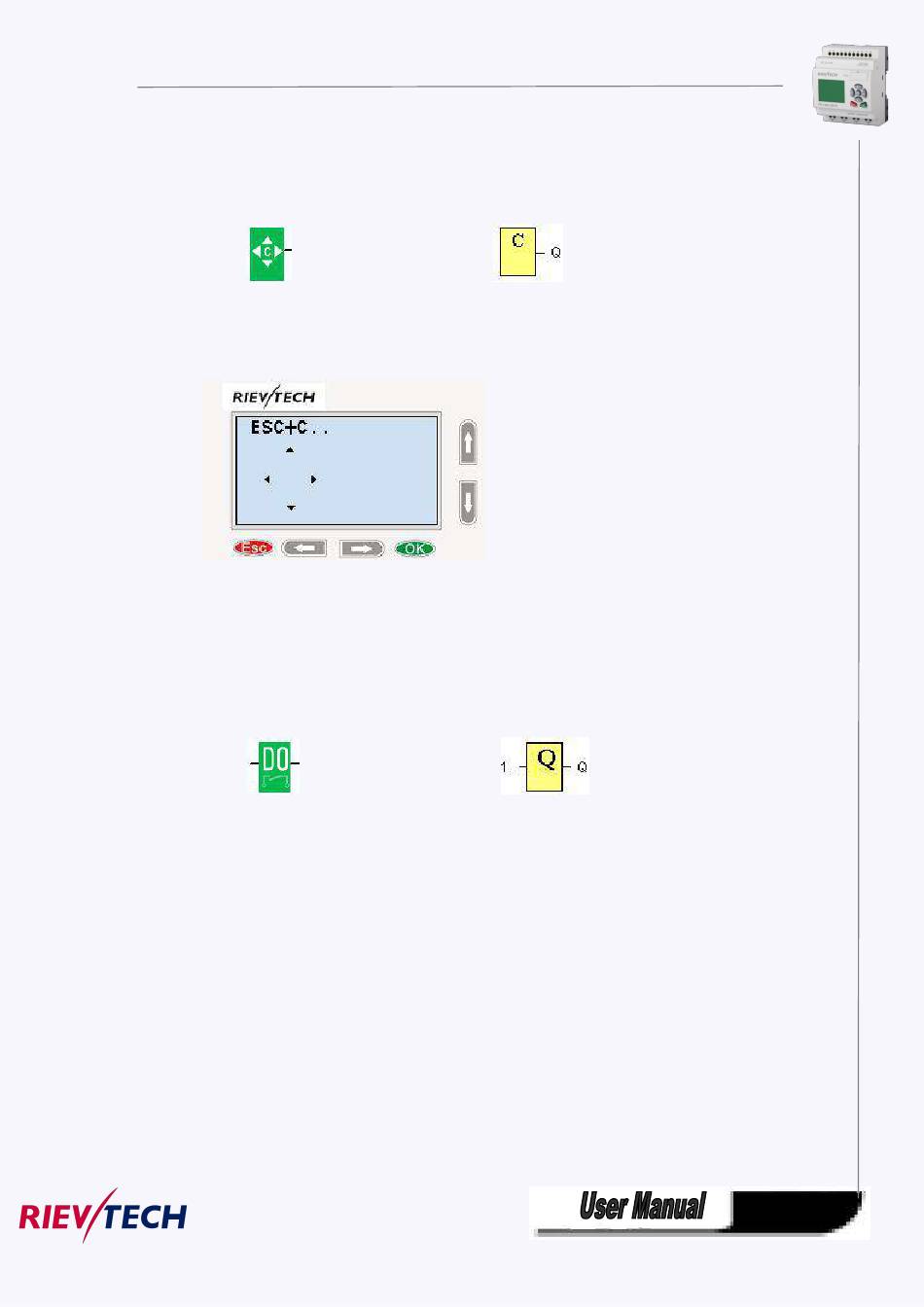

5.2.2 Cursor keys

Fashion: Classic:
Up to four cursor keys are available to you. Cursor keys are programmed for the circuit program in the
same ways as other inputs. Cursor keys can save switches and inputs, and allow operator control of the
circuit program.
Switch the screen to current page(above shows) by pressing the Left or Right key, and press
ESC key and arrow keys at the same time, then the corresponding cursor keys will turn on and
give off a high trigger!

5.2.3 Outputs

Fashion: Classic:
Output blocks represent the output terminals of xLogic. You can use up to 2 outputs(ELC-6), 4
outputs(PR-12),70 outputs(PR-18), 72 outputs(PR-22),74 outputs(PR-26). In your block configuration,
you can assign an output block a new terminal, provided this terminal is not already used in your circuit
program.
The output always carries the signal of the previous program cycle. This value does not change within the
current program cycle.
Note:
Q11 means the Q1 output of the expansion with address 1.
Q85 means the Q5 output of the expansion with address 8.
62
