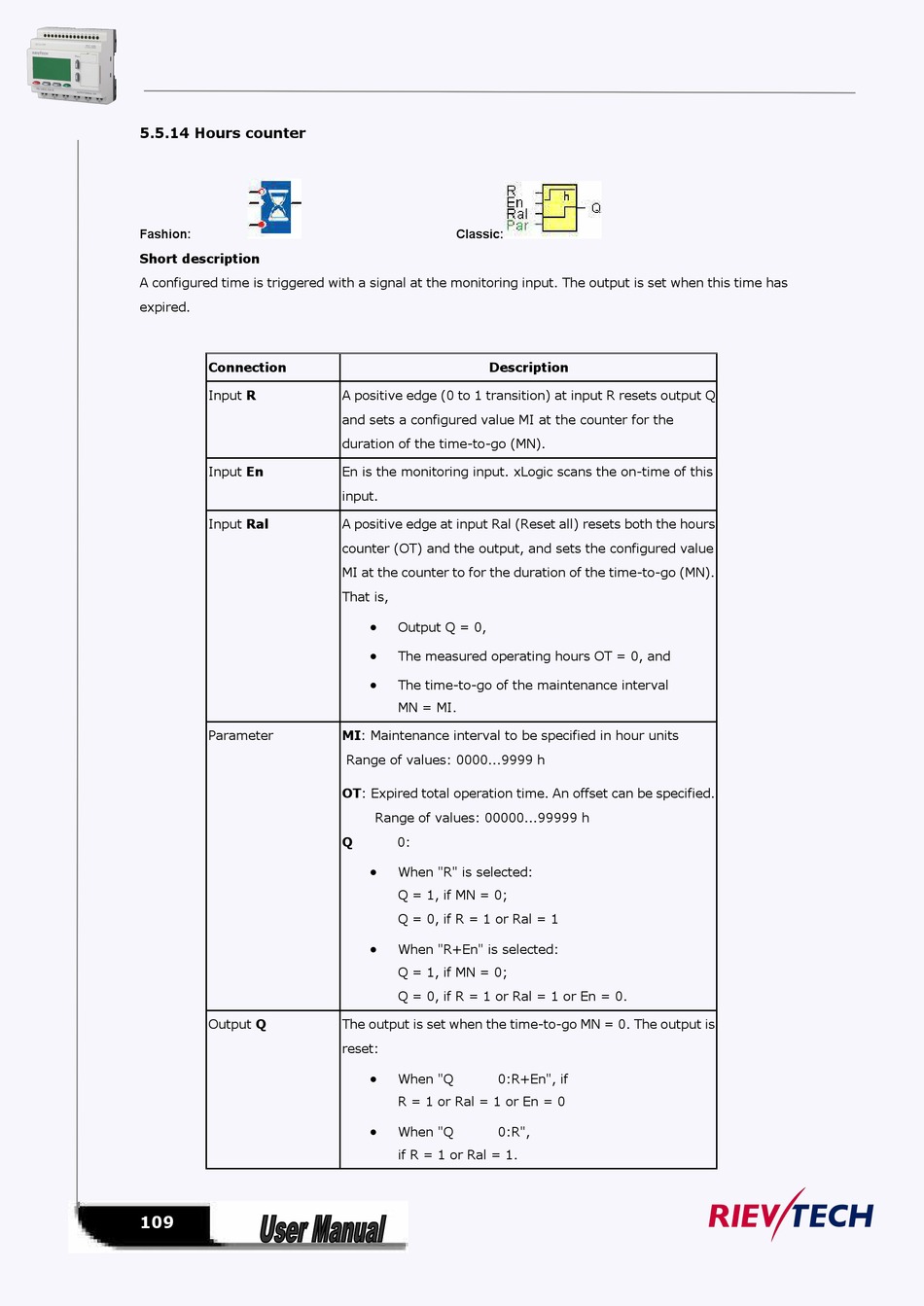

5.5.14 Hours counter

Fashion:
Short description
A configured time is triggered with a signal at the monitoring input. The output is set when this time has
expired.
Connection
Input R
Input En
Input Ral
Parameter
Output Q
109
Classic:
Description
A positive edge (0 to 1 transition) at input R resets output Q
and sets a configured value MI at the counter for the
duration of the time-to-go (MN).
En is the monitoring input. xLogic scans the on-time of this
input.
A positive edge at input Ral (Reset all) resets both the hours
counter (OT) and the output, and sets the configured value
MI at the counter to for the duration of the time-to-go (MN).
That is,

Output Q = 0,

The measured operating hours OT = 0, and

The time-to-go of the maintenance interval
MN = MI.
MI: Maintenance interval to be specified in hour units
Range of values: 0000...9999 h
OT: Expired total operation time. An offset can be specified.
Range of values: 00000...99999 h
Q 0:

When "R" is selected:
Q = 1, if MN = 0;
Q = 0, if R = 1 or Ral = 1

When "R+En" is selected:
Q = 1, if MN = 0;
Q = 0, if R = 1 or Ral = 1 or En = 0.
The output is set when the time-to-go MN = 0. The output is
reset:

When "Q 0:R+En", if
R = 1 or Ral = 1 or En = 0

When "Q 0:R",
if R = 1 or Ral = 1.
