set points (MIN and MAX).
If MINI is greater than MAXI, then for:
ON in the zone: the output always remains inactive,
OFF in the zone: the output always remains active.
Comparison Function

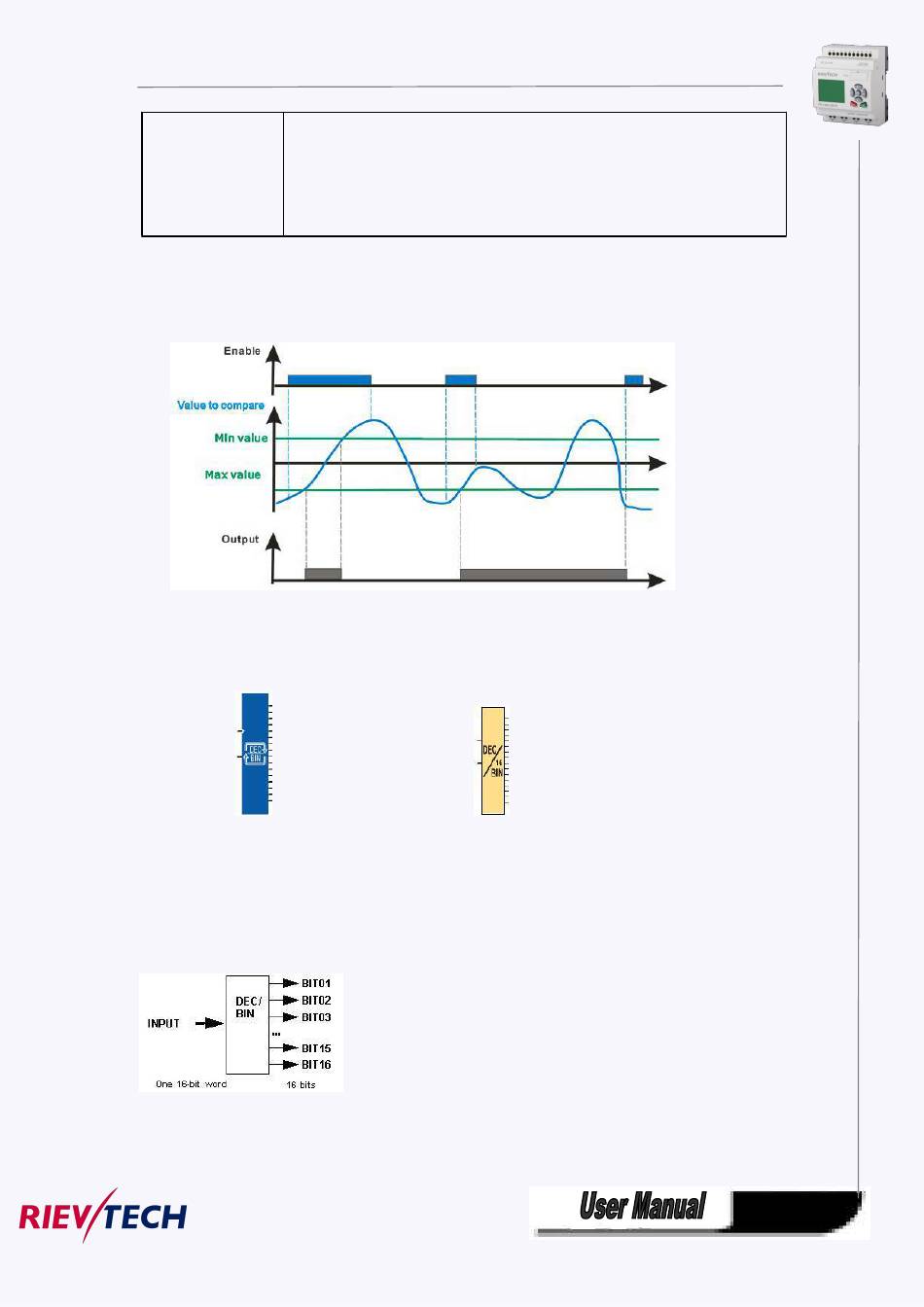

The diagram below shows the different states the output can take, depending on the input value to
compare and the enable input:

5.5.55 Conversion Word bits

Fashion:
Short Description
When the "En" is high, The DEC/BIN function breaks down an integer (16-bit) type input into 16 bit-type
outputs.
Illustration:
Inputs/Outputs
This function supports 1 integer type 16-bit input:
This function supports 16 discrete outputs: BIT01 (least significant byte) ... BIT16 (most significant
Classic:
212
