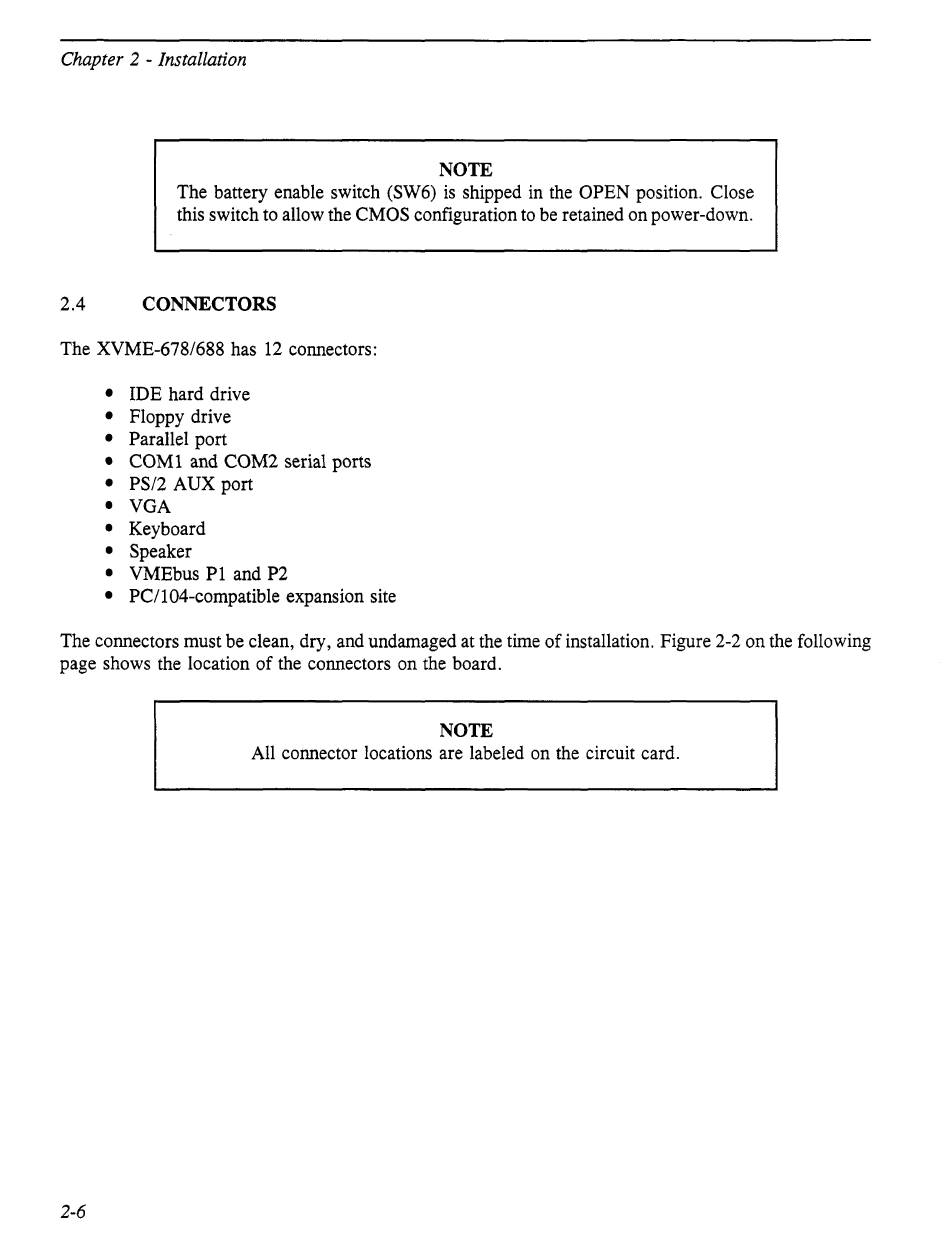

Chapter 2 - Installation
NOTE
The battery enable switch (SW6) is shipped in the OPEN position. Close
this switch to allow the CMOS configuration to be retained on power-down.
2.4
CONNECTORS
The XVME-678/688 has 12 connectors:
• IDE hard drive
• Floppy drive
• Parallel port
• COM1 and COM2 serial ports
• PS/2 A UX port
• VGA
• Keyboard
• Speaker
• VMEbus P 1 and P2
• PC/l 04-compatible expansion site
The connectors must be clean, dry, and undamaged at the time of installation. Figure 2-2 on the following
page shows the location of the connectors on the board.
NOTE
All connector locations are labeled on the circuit card.
