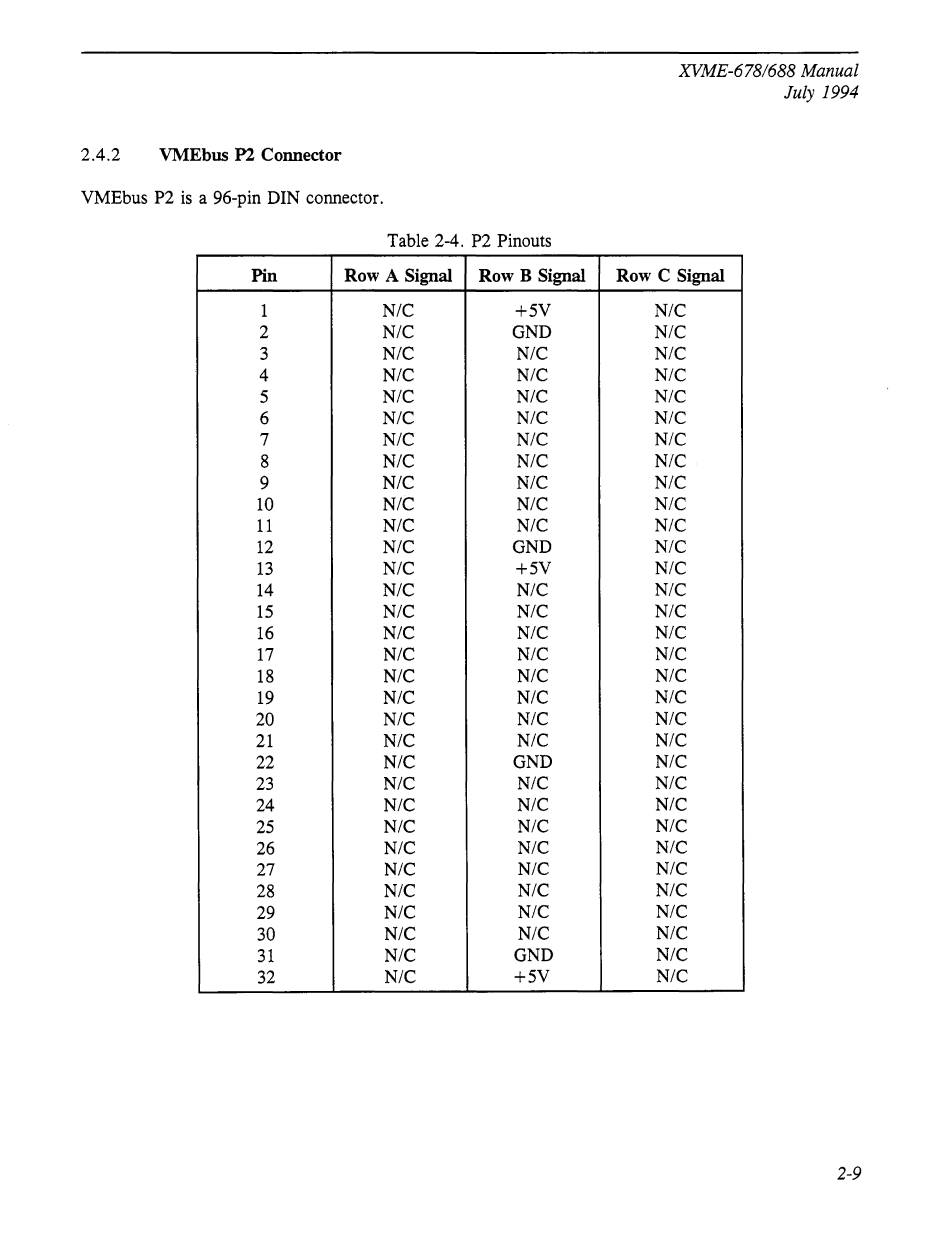

2.4.2
VMEbus P2 Connector
VMEbus P2 is a 96-pin DIN connector.
Table 2-4. P2 Pinouts
Pin
Row A Signal
Row B Signal
1
N/C
+5V
2
N/C
GND
3
N/C
N/C
4
N/C
N/C
5
N/C
N/C
6
N/C
N/C
7
N/C
N/C
8
N/C
N/C
9
N/C
N/C
10
N/C
N/C
11
N/C
N/C
12
N/C
GND
13
N/C
+5V
14
N/C
N/C
15
N/C
N/C
16
N/C
N/C
17
N/C
N/C
18
N/C
N/C
19
N/C
N/C
20
N/C
N/C
21
N/C
N/C
22
N/C
GND
23
N/C
N/C
24
N/C
N/C
25
N/C
N/C
26
N/C
N/C
27
N/C
N/C
28
N/C
N/C
29
N/C
N/C
30
N/C
N/C
31
N/C
GND
32
N/C
+5V
XVME-678/688 Manual
July 1994
Row C Signal
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
2-9
