FEOOOO-FFFFFF
20000-FDFFFF
100000-1 FFFFF
OFOOOO-OFFFFF
OEOOOO-OEFFFF
ODOOOO-ODFFFF
OCBOOO-OCFFFF
OCOOOO-OC7FFF
OAOOOO-OBFFFF
000000-09FFFF
System BIOS
128K
I/O Memory
14208K
DRAM
1024K
System BIOS
64K
XVME-678/688 Manual
July 1994
Real Mode VVindow / Extended BIOS / I/O
64K
Extended BIOS / I/O
64K
User Area
32K
VGABIOS
32K
VGA DRAM Memory
128K
DRAM
640K

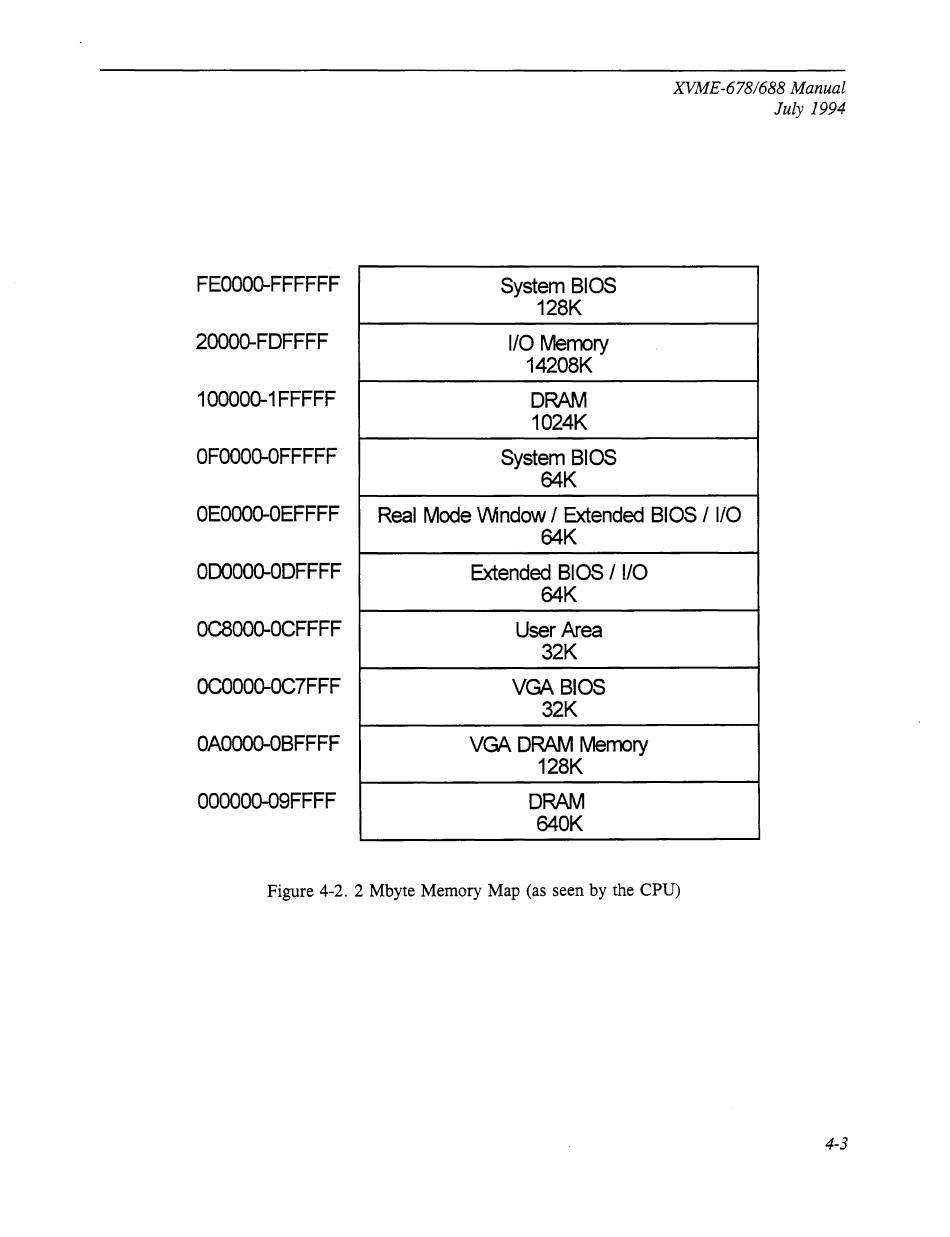

Figure 4-2. 2 Mbyte Memory Map (as seen by the CPU)
4-3
