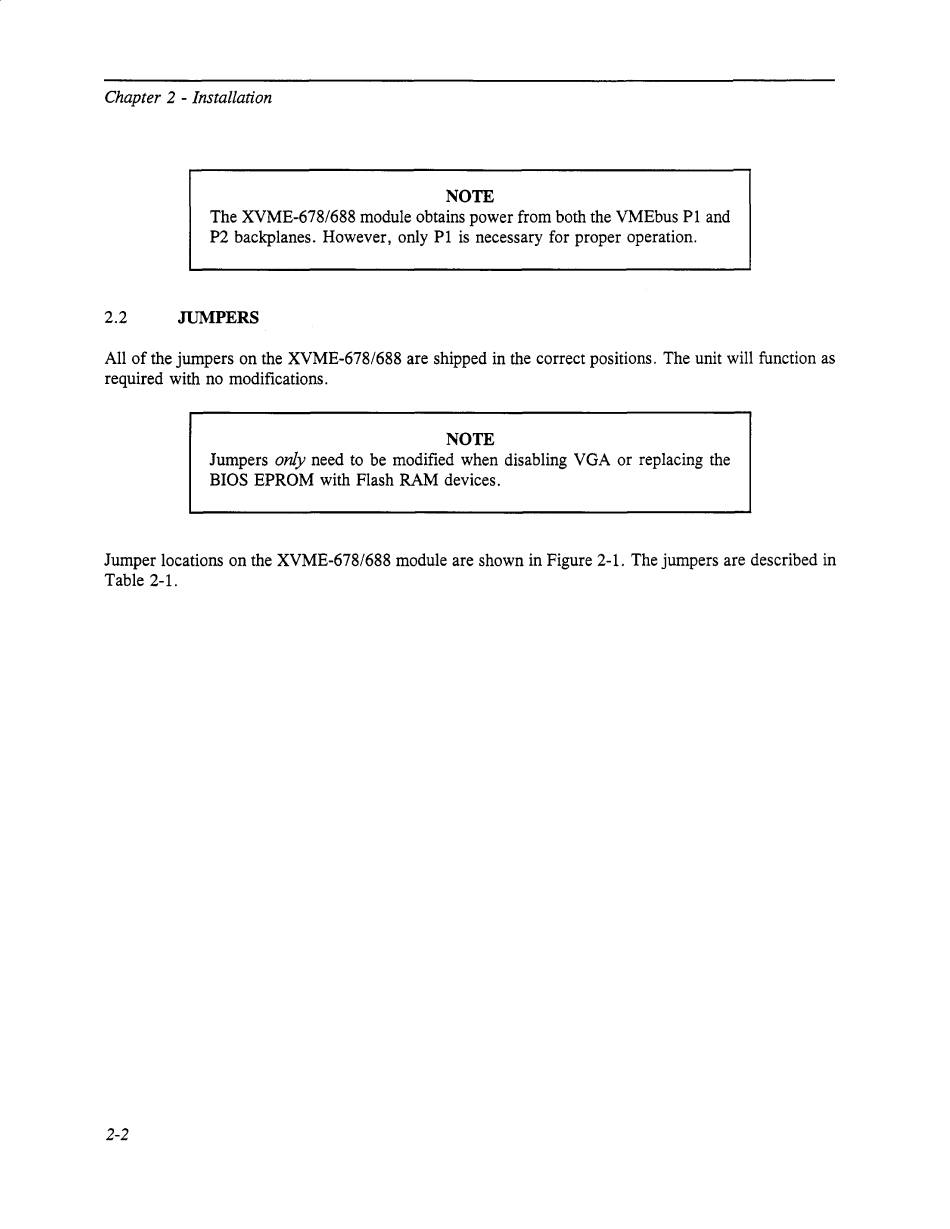

Chapter
2 -
Installation
NOTE
The XVME-678/688 module obtains power from both the VMEbus PI and
P2 backplanes. However, only PI is necessary for proper operation.
2.2
JUMPERS
All of the jumpers on the XVME-678/688 are shipped in the correct positions. The unit will function as
required with no modifications.
NOTE
Jumpers
only
need to be modified when disabling VGA or replacing the
BIOS EPROM with Flash RAM devices.
Jumper locations on the XVME-678/688 module are shown in Figure 2-1. The jumpers are described in
Table 2-1.
2-2
