Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

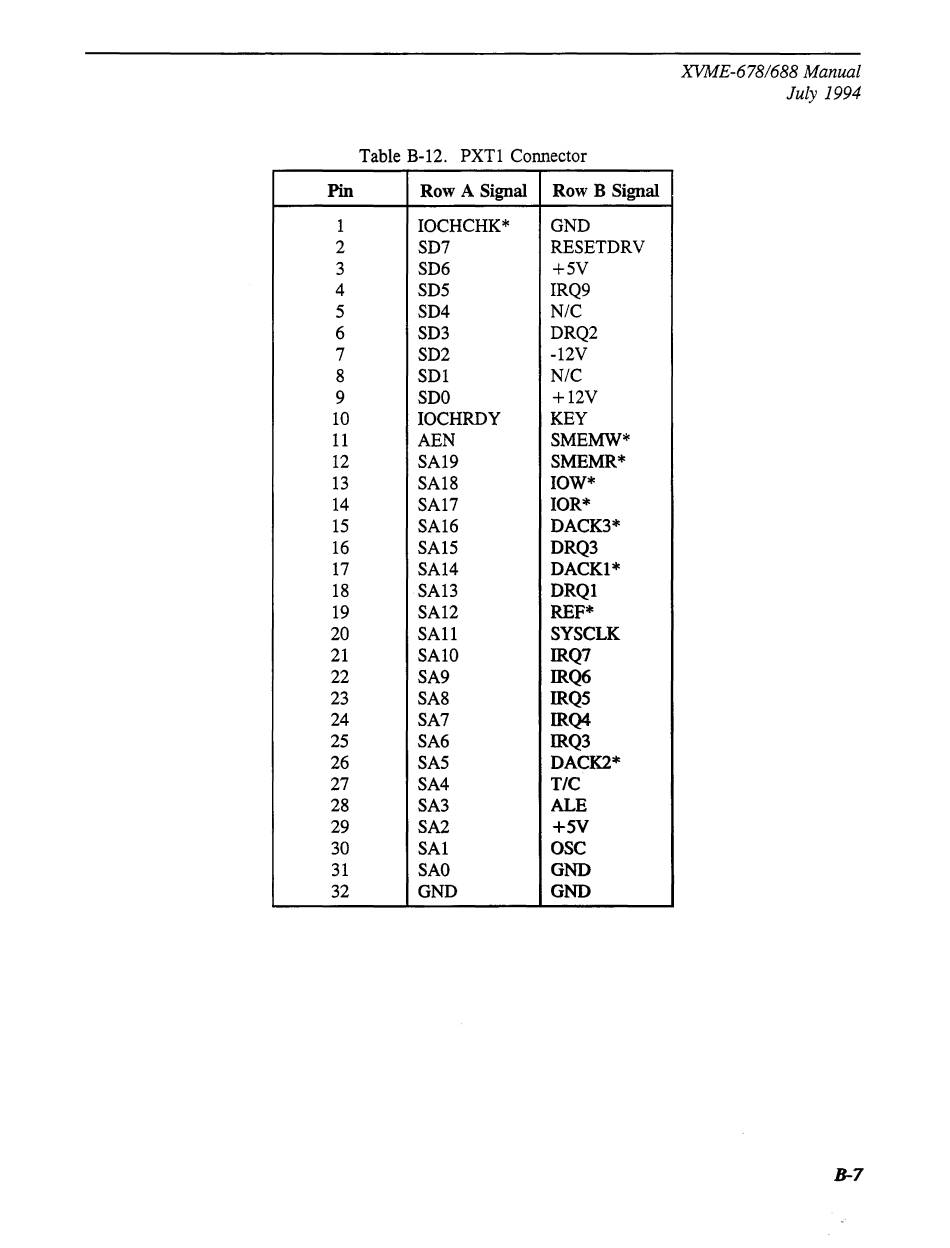

Table B-12. PXTl Connector
Row A Signal Row B Signal
IOCHCHK* GND
SD7 RESETDRV
SD6 +5V
SD5 IRQ9
SD4 N/C
SD3
DRQ2
SD2 -12V
SD1
N/C
SDO
+12V
IOCHRDY KEY
AEN
SMEMW*
SA19 SMEMR*
SA18 IOW*
SA17 IOR*
SA16
DACK3*
SA15 DRQ3
SA14 DACKl*
SA 13 DRQ1
SA12 REF*
SA11
SYSCLK
SAlO IRQ7
SA9 IRQ6
SA8 IRQ5
SA7 IRQ4
SA6 IRQ3
SA5 DACK2*
SA4
TIC
SA3
ALE
SA2 +5V
SAl OSC
SAO GND
GND
GND
