Appendix B - Quick Reference Guide

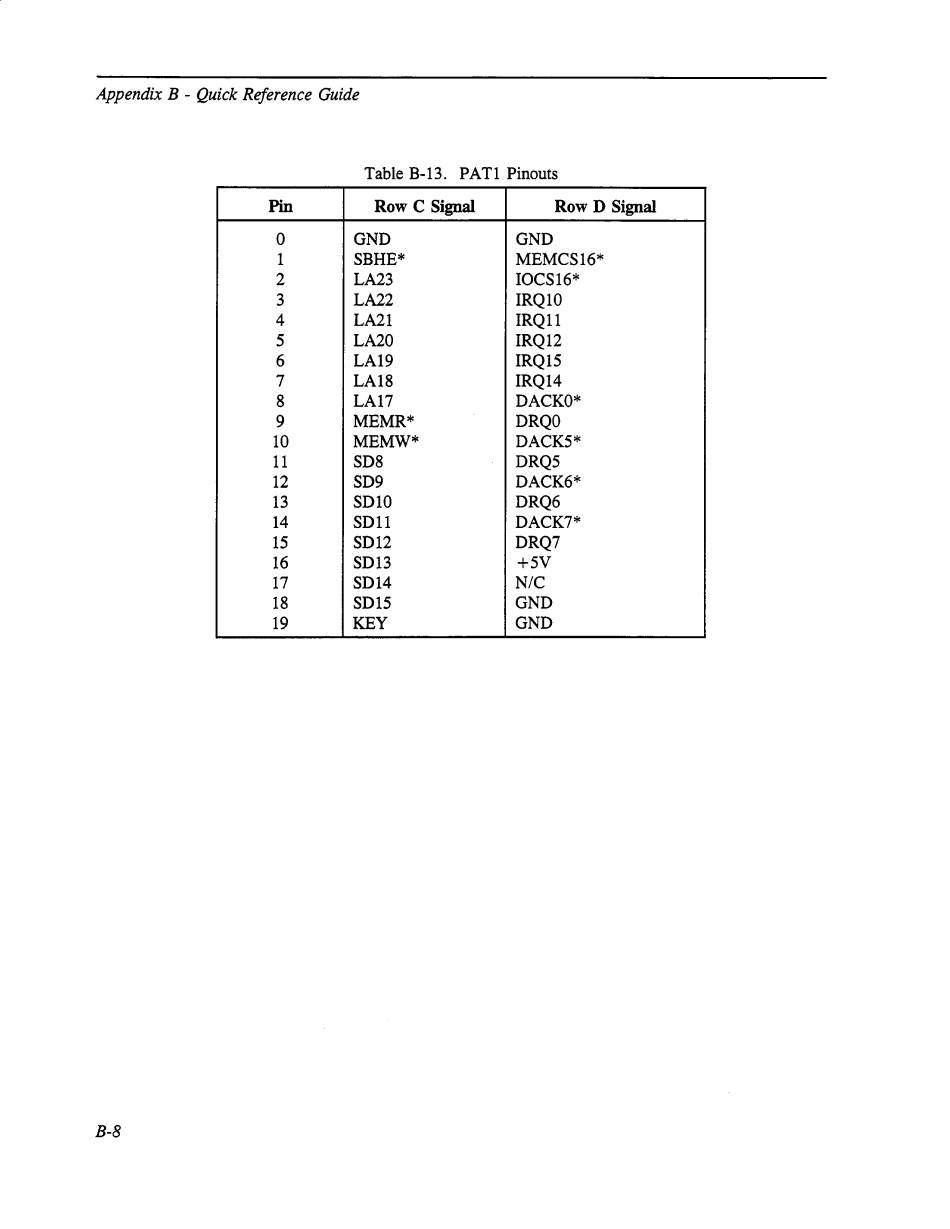

Table B-13 . PAT 1 Pinouts
Pin
Row C Signal Row D Signal
0 GND GND
1 SBHE* MEMCSI6*
2 LA23 IOCSI6*
3 LA22
IRQI0
4 LA21 IRQll
5 LA20 IRQ12
6
LA19 IRQ15
7 LA18 IRQ14
8 LA17 DACKO*
9 MEMR* DRQO
10 MEMW* DACK5*
11 SD8 DRQ5
12 SD9 DACK6*
13 SDI0
DRQ6
14 SD11 DACK7*
15 SD12
DRQ7
16 SD13 +5V
17 SD14 N/C
18 SD15
GND
19 KEY
GND
B-8
