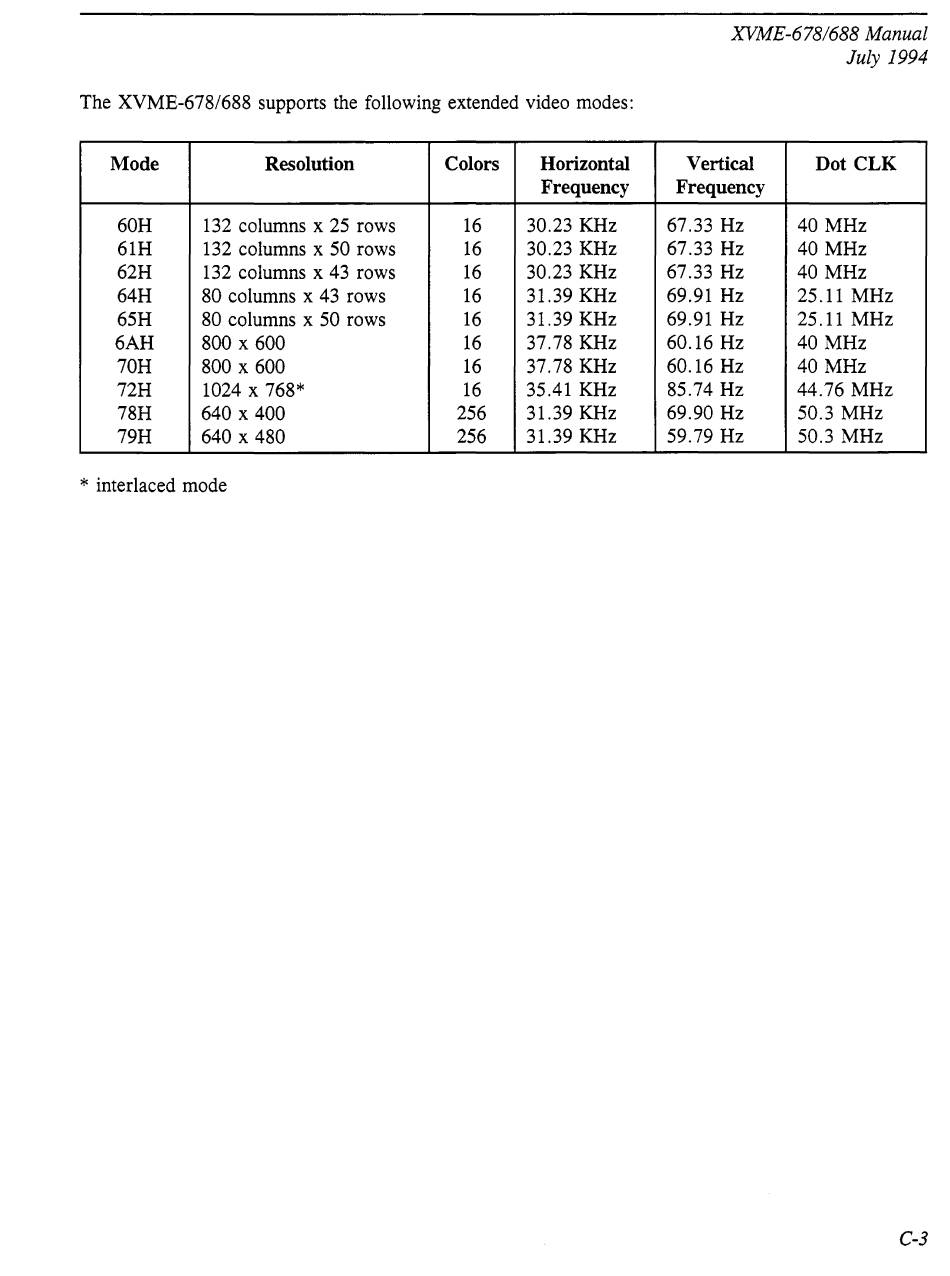

The XVME-678/688 supports the following extended video modes:
Mode
Resolution
Colors
Horizontal
Frequency
60H
132 columns x 25 rows
16
30.23 KHz
61H
132 columns x 50 rows
16
30.23 KHz
62H
132 columns x 43 rows
16
30.23 KHz
64H
80 columns x 43 rows
16
31.39 KHz
65H
80 columns x 50 rows
16
31.39 KHz
6AH
800 x 600
16
37.78 KHz
70H
800 x 600
16
37.78 KHz
72H
1024 x 768*
16
35.41 KHz
78H
640 x 400
256
31.39 KHz
79H
640 x 480
256
31.39 KHz
*
interlaced mode
XVME-678/688 Manual
July 1994
Vertical
Dot CLK
Frequency
67.33 Hz
40 MHz
67.33 Hz
40 MHz
67.33 Hz
40 MHz
69.91 Hz
25.11 MHz
69.91 Hz
25.11 MHz
60.16 Hz
40 MHz
60.16 Hz
40 MHz
85.74 Hz
44.76 MHz
69.90 Hz
50.3 MHz
59.79 Hz
50.3 MHz
C-3
