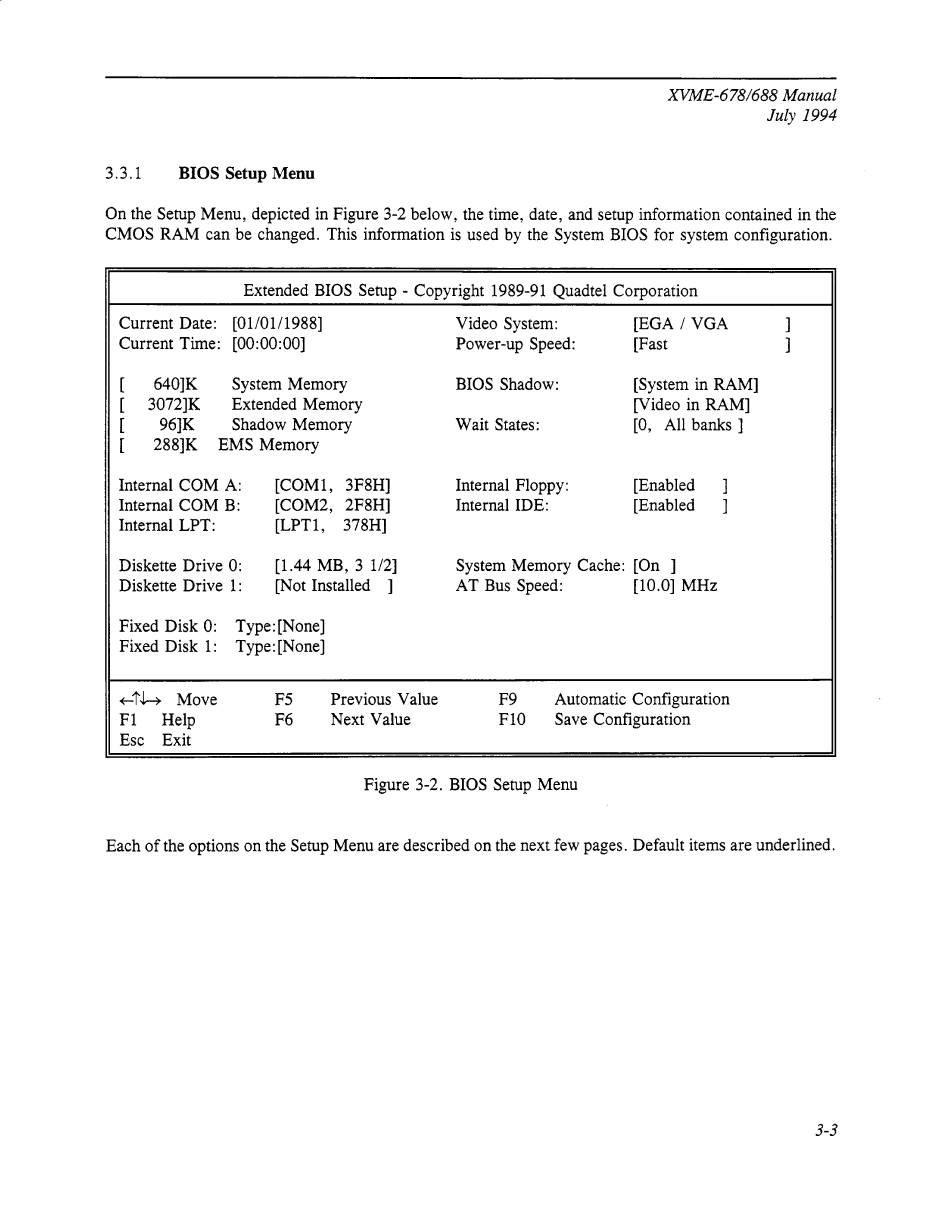

3.3.1 BIOS Setup Menu
XVME-678/688 Manual
July 1994
On the Setup Menu, depicted in Figure 3-2 below, the time, date, and setup information contained in the
CMOS RAM can be changed. This information is used by the System BIOS for system configuration.
Extended BIOS Setup - Copyright 1989-91 Quadtel Corporation
Current Date: [0110111988]
Current Time: [00:00:00]
[
[
[
[
640]K
3072]K
96]K
288]K
System Memory
Extended Memory
Shadow Memory
EMS Memory
Internal COM A:
Internal COM B:
Internal
LPT:
Diskette Drive 0:
Diskette Drive 1:
[COM1, 3F8H]
[COM2, 2F8H]
[LPT1, 378H]
[1.44 MB, 3 1/2]
[N ot Installed ]
Fixed Disk 0: Type: [None]
Fixed Disk 1: Type: [None]
+-th
Move
F1 Help
Esc Exit
F5
F6
Previous Value
Next Value
Video System:
Power-up Speed:
BIOS Shadow:
Wait States:
Internal Floppy:
Internal IDE:
[EGA I VGA
[Fast
[System in RAM]
[Video in RAM]
[0, All banks]
[Enabled ]
[Enabled ]
System Memory Cache: [On ]
AT Bus Speed: [10.0] MHz
F9 Automatic Configuration
FlO Save Configuration
Figure 3-2. BIOS Setup Menu
Each of the options on the Setup Menu are described on the next few pages. Default items are underlined.
3-3
