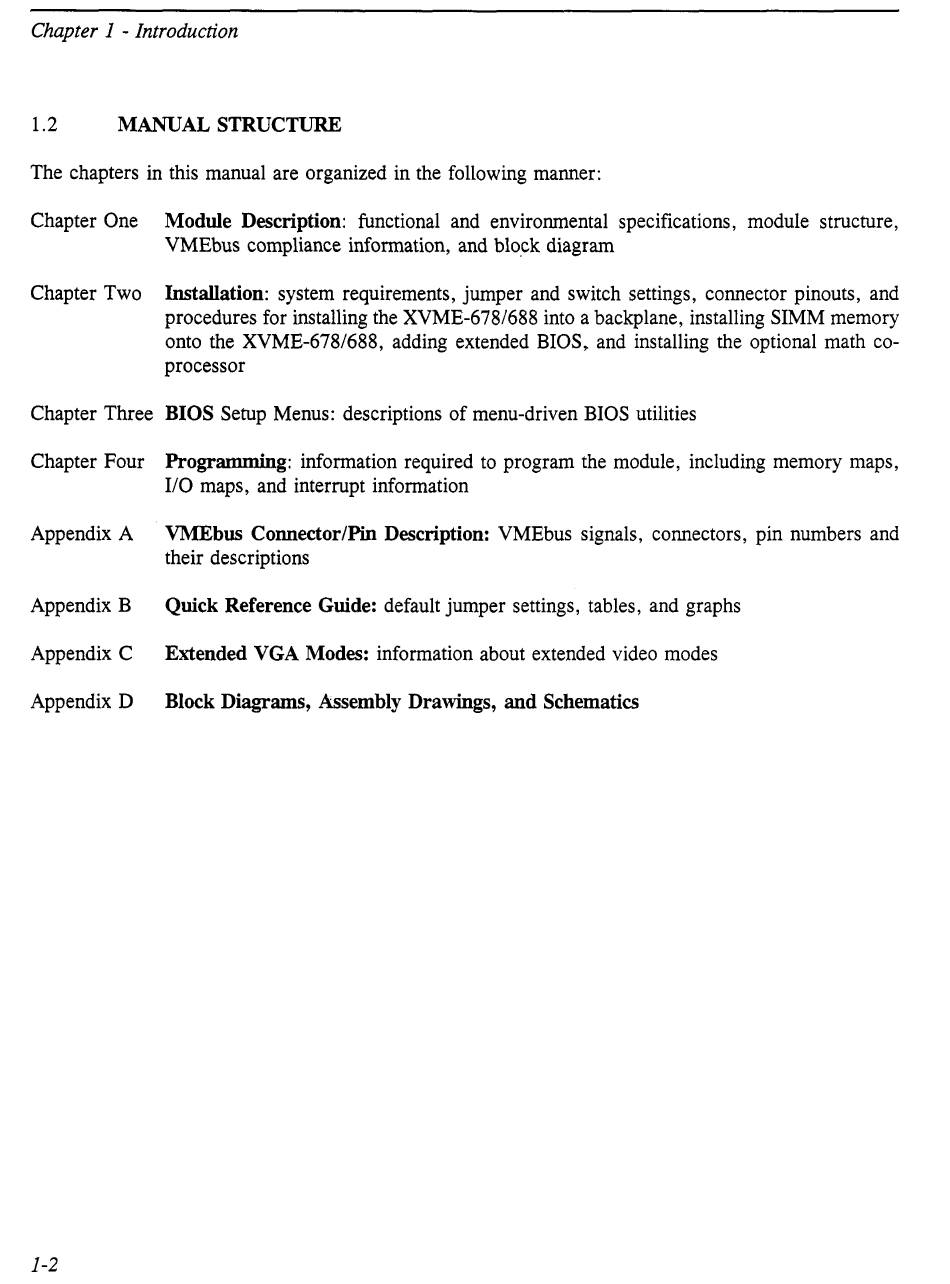

MANUAL STRUCTURE
The chapters in this manual are organized in the following manner:
Chapter One
Module Description: functional and environmental specifications, module structure,
VMEbus compliance information, and blo.ck diagram
Chapter Two
Installation: system requirements, jumper and switch settings, connector pinouts, and
procedures for installing the XVME-678/688 into a backplane, installing SIMM memory
onto the XVME-678/688, adding extended BIOS. and installing the optional math co-
processor
Chapter Three BIOS Setup Menus: descriptions of menu-driven BIOS utilities
Chapter Four Programming: information required to program the module, including memory maps,
I/O maps, and interrupt information
Appendix A
VMEbus Connector/Pin Description: VMEbus signals, connectors, pin numbers and
their descriptions
Appendix B
Quick Reference Guide: default jumper settings, tables, and graphs
Appendix C
Extended VGA Modes: information about extended video modes
Appendix D
Block Diagrams, Assembly Drawings, and Schematics
