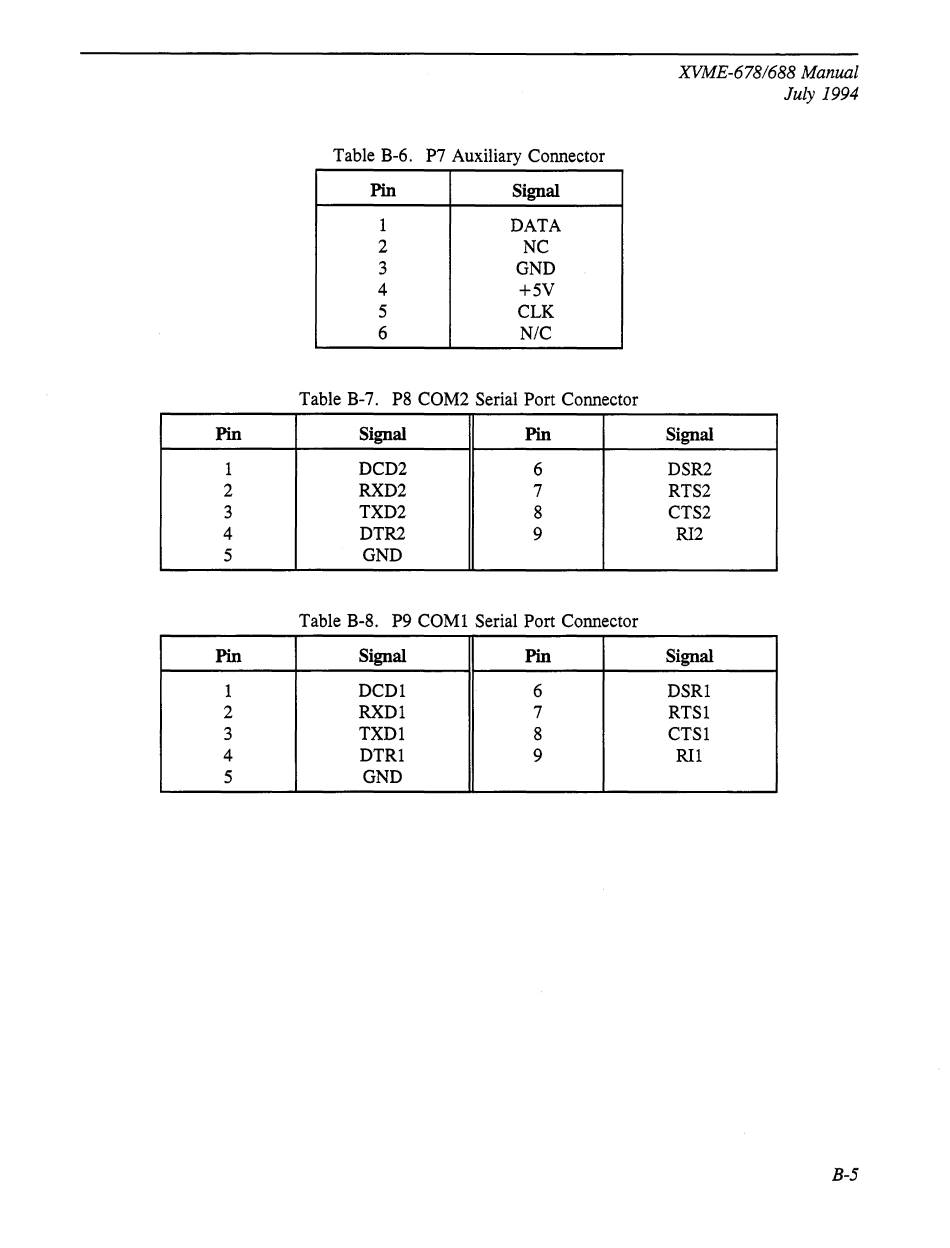

Table B-6. P7 Auxiliary Connector
Pin
Signal
I
DATA
2
NC
3
GND
4
+5V
5
CLK
6
N/C
Table B-7. P8 COM2 Serial Port Connector
Pin
Signal
Pin
I
DCD2
6
2
RXD2
7
3
TXD2
8
4
DTR2
9
5
GND
Table B-8. P9 COMI Serial Port Connector
Pin
Signal
Pin
I
DCDI
6
2
RXDI
7
3
TXDI
8
4
DTRI
9
5
GND
XVME-678/688 Manual
July 1994
Signal
DSR2
RTS2
CTS2
RI2
Signal
DSRI
RTSI
CTSI
RII
B-5
