BACKPLANE CONNECTOR PI
XVME-678/688 Manual
July 1994

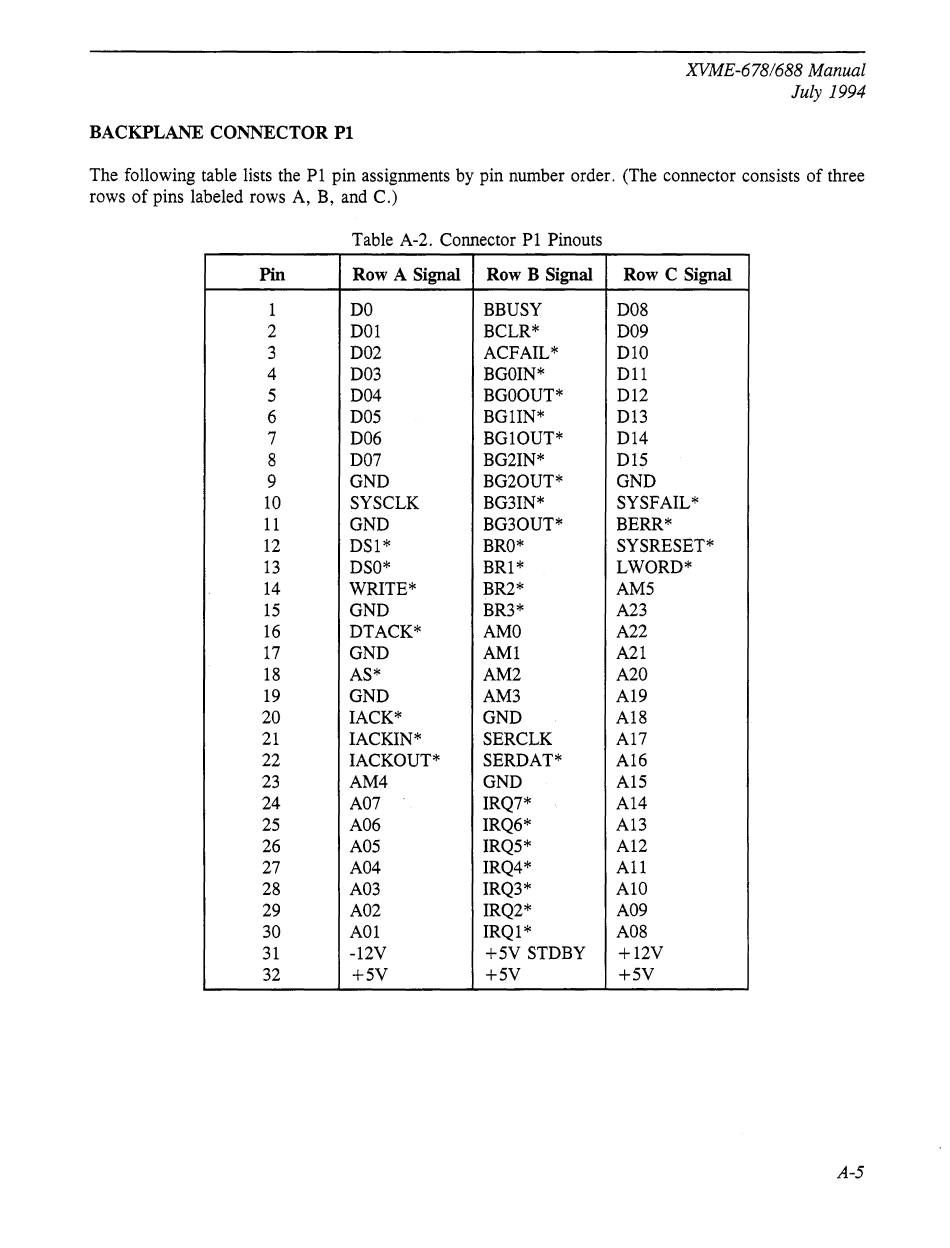

The following table lists the PI pin assignments by pin number order. (The connector consists of three
rows of pins labeled rows A, B, and C.)
Table A-2. Connector PI Pinouts
Pin Row A Signal Row B Signal Row C Signal
1 DO BBUSY D08
2 DOl BCLR* D09
3 D02 ACFAIL* D10
4
D03
BGOIN* D11
5 D04 BGOOUT* D12
6 D05
BGlIN* D13
7
D06 BGlOUT* D14
8
D07 BG2IN* D15
9 GND BG20UT* GND
10 SYSCLK BG3IN* SYSFAIL*
11 GND BG30UT* BERR*
12 DS1* BRO* SYSRESET*
13 DSO* BR1* LWORD*
14 WRITE * BR2* AM5
15 GND BR3* A23
16 DTACK* AMO A22
17 GND AMI A2l
18 AS* AM2 A20
19
GND AM3 A19
20 IACK* GND Al8
21 IACKIN* SERCLK Al7
22
IACKOUT* SERDAT* Al6
23 AM4 GND A15
24 A07 IRQ7* Al4
25 A06 IRQ6* A13
26
A05
IRQ5* A12
27 A04 IRQ4* All
28
A03
IRQ3* AlO
29 A02 IRQ2* A09
30 A01 IRQ1* A08
31
-12V +5V STDBY +12V
32
+5V
+5V +5V
A-5
