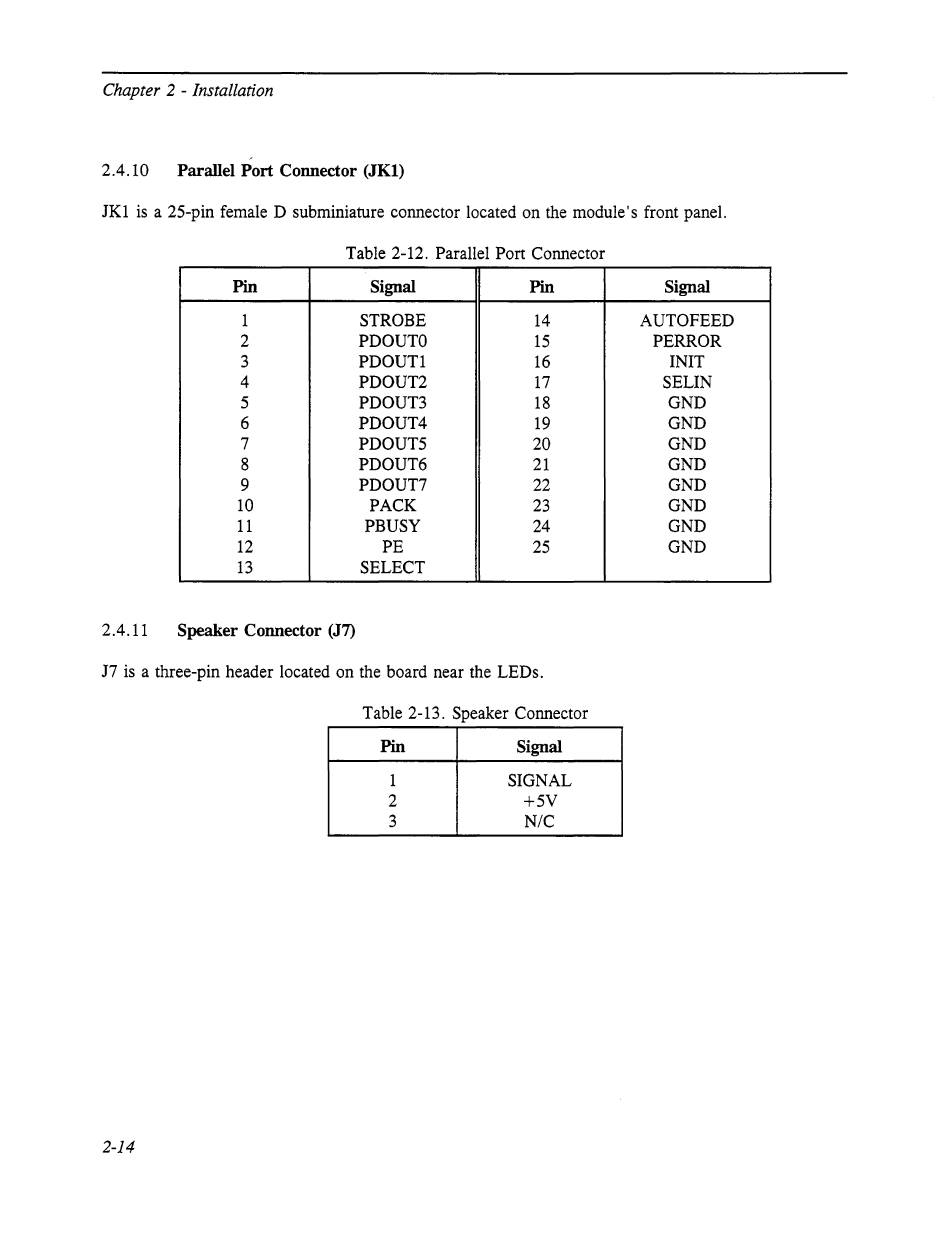

Chapter
2 -
Installation
,
2.4.10 Parallel Port Connector (JKl)
JK1 is a 25-pin female D subminiature connector located on the module's front panel.
Table 2-12. Parallel Port Connector
Pin Signal Pin Signal
1 STROBE 14 AUTOFEED
2 PDOUTO
15 PERROR
3 PDOUTI 16 INIT
4 PDOUT2 17 SELIN
5 PDOUT3 18 GND
6 PDOUT4 19 GND
7 PDOUT5 20 GND
8 PDOUT6 21 GND
9
PDOUT7
22 GND
10 PACK 23 GND
11
PBUSY 24 GND
12 PE 25 GND
13 SELECT
2.4.11 Speaker Connector (J7)
17 is a three-pin header located on the board near the LEDs.
Table 2-13. Speaker Connector
Pin
Signal
1 SIGNAL
2
+5V
3
N/C
2-14
