3.3.3 Solid State Disk Setup Menu
XVME-678/688 Manual
July 1994

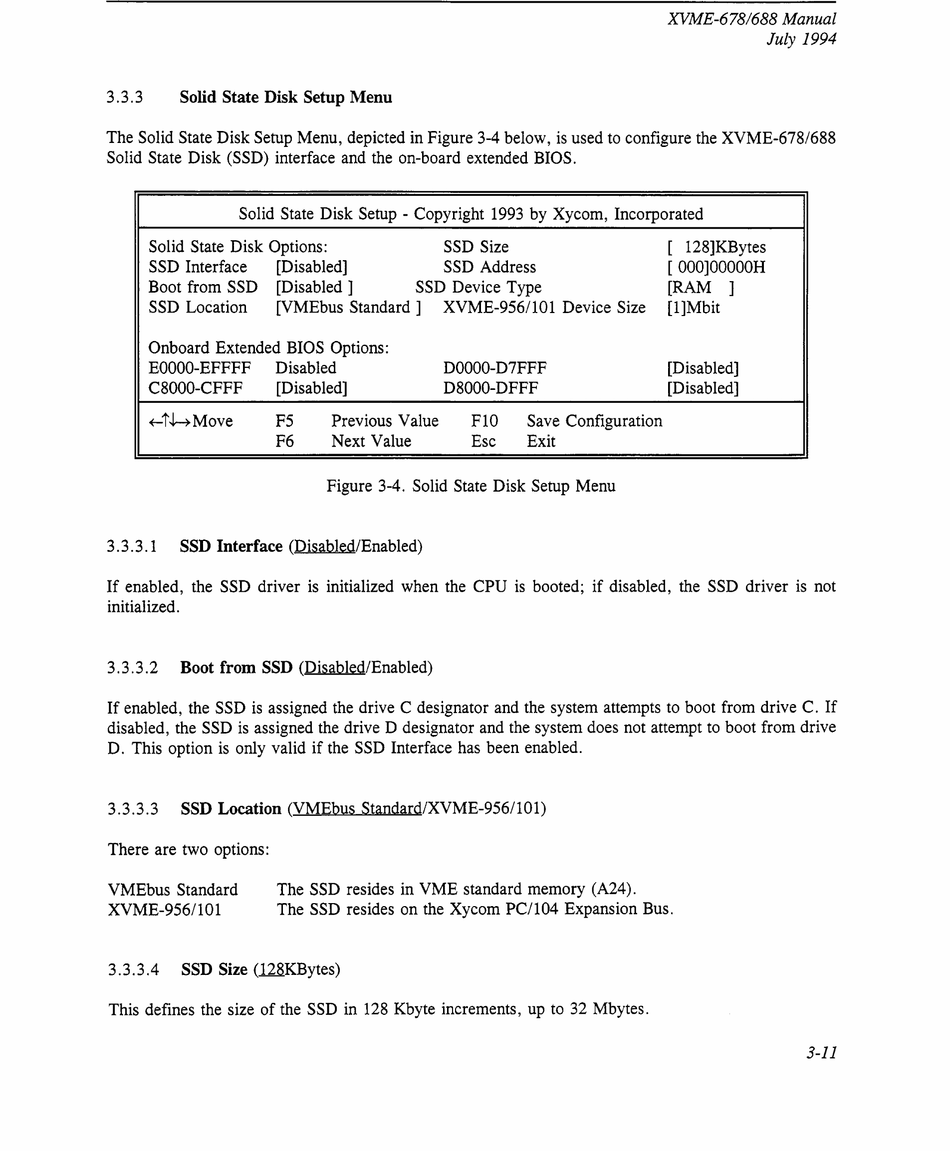

The Solid State Disk Setup Menu, depicted in Figure 3-4 below, is used to configure the XVME-678/688
Solid State Disk (SSD) interface and the on-board extended BIOS.
Solid State Disk Setup - Copyright 1993 by Xycom, Incorporated
Solid State Disk Options: SSD Size [ 128]KBytes
SSD Interface
[Disabled]
SSD Address [ OOO]OOOOOH
Boot from SSD [Disabled] SSD Device Type [RAM
]
SSD Location [VMEbus Standard ] XVME-956/l01 Device Size [l]Mbit
Onboard Extended BIOS Options:
EOOOO-EFFFF Disabled DOOOO-D7FFF [Disabled]
C8000-CFFF [Disabled] D8000-DFFF [Disabled]
~thMove
F5 Previous Value FlO Save Configuration
F6 Next Value Esc Exit
Figure 3-4. Solid State Disk Setup Menu
3.3.3.1 SSD Interface (Disabled/Enabled)
If enabled, the SSD driver is initialized when the CPU is booted; if disabled, the SSD driver is not
initialized.
3.3.3.2 Boot from SSD (Disabled/Enabled)
If enabled, the SSD is assigned the drive C designator and the system attempts to boot from drive C. If
disabled, the SSD is assigned the drive D designator and the system does not attempt to boot from drive
D. This option is only valid if the SSD Interface has been enabled.
3.3.3.3 SSD Location (VMEbus Standard/XVME-956/l01)
There are two options:
VMEbus Standard
XVME-956/l01
The SSD resides in VME standard memory (A24).
The SSD resides on the Xycom PC/104 Expansion Bus.
3.3.3.4 SSD Size (.l2..8.KBytes)
This defines the size of the SSD in 128 Kbyte increments, up to 32 Mbytes.
