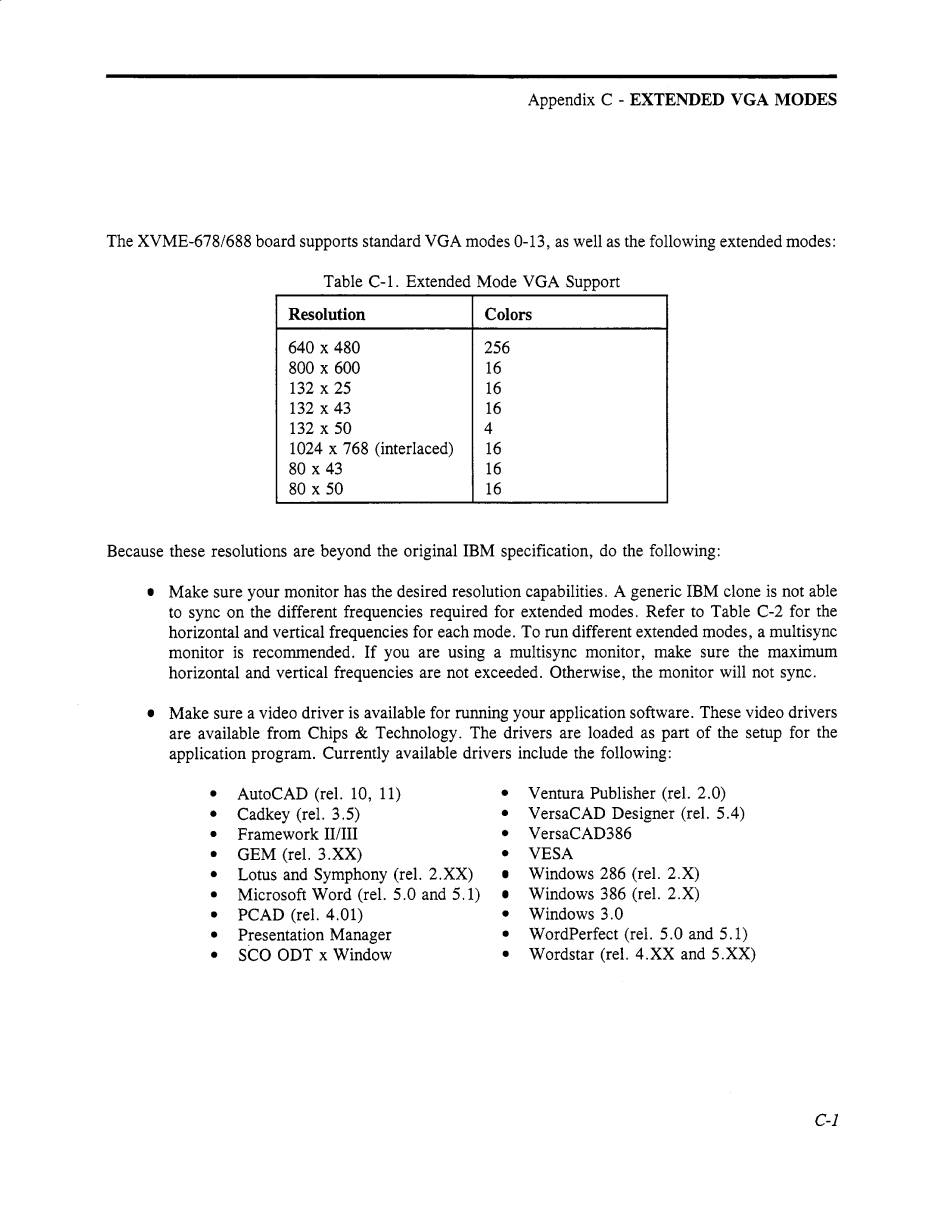

Appendix C -
EXTENDED VGA MODES
The XVME-678/688 board supports standard VGA modes 0-13, as well as the following extended modes:
Table C-1. Extended Mode VGA Support
Resolution Colors
640 x 480 256
800 x 600 16
132 x 25
16
132 x 43 16
132 x 50 4
1024 x 768 (interlaced)
16
80 x 43 16
80 x 50 16
Because these resolutions are beyond the original IBM specification, do the following:
• Make sure your monitor has the desired resolution capabilities. A generic IBM clone is not able
to sync on the different frequencies required for extended modes. Refer to Table C-2 for the
horizontal and vertical frequencies for each mode. To run different extended modes, a multisync
monitor is recommended. If you are using a mUltisync monitor, make sure the maximum
horizontal and vertical frequencies are not exceeded. Otherwise, the monitor will not sync.
• Make sure a video driver is available for running your application software. These video drivers
are available from Chips & Technology. The drivers are loaded as part of the setup for the
application program. Currently available drivers include the following:
•
AutoCAD (reI. 10, 11)
•
Ventura Publisher (reI. 2.0)
•
Cadkey (reI. 3.5)
•
VersaCAD Designer (reI. 5.4)
•
Framework II/III
•
VersaCAD386
•
GEM (reI. 3.xX)
•
VESA
•
Lotus and Symphony (reI. 2.XX)
•
Windows 286 (reI. 2.X)
•
Microsoft Word (reI. 5.0 and 5.1)
•
Windows 386 (reI. 2.X)
•
PCAD (reI. 4.01)
•
Windows 3.0
•
Presentation Manager
•
WordPerfect (reI. 5.0 and 5.1)
•
SCO ODT x Window
•
Wordstar (reI. 4.XX and 5.XX)
C-J
