FEOOOO-FFFFFF
AOOOOO-FDFFFF
100000-9FFFFF
OFOOOO-OFFFFF
OEOOOO-OEFFFF
ODOOOO-ODFFFF
OCBOOO-OCFFFF
OCOOOO-OC7FFF
OAOOOO-OBFFFF
00000O-09FFFF
System BIOS
128K
110 Memory
6016K
DRAM
9216K
System BIOS
64K
XVME-678/688 Manual
July 1994
Real Mode VVindow I Extended BIOS 11/0
64K
Extended BIOS 1110
64K
User Area
32K
VGAB/OS
32K
VGA DRAM Memory
128K
DRAM
640K

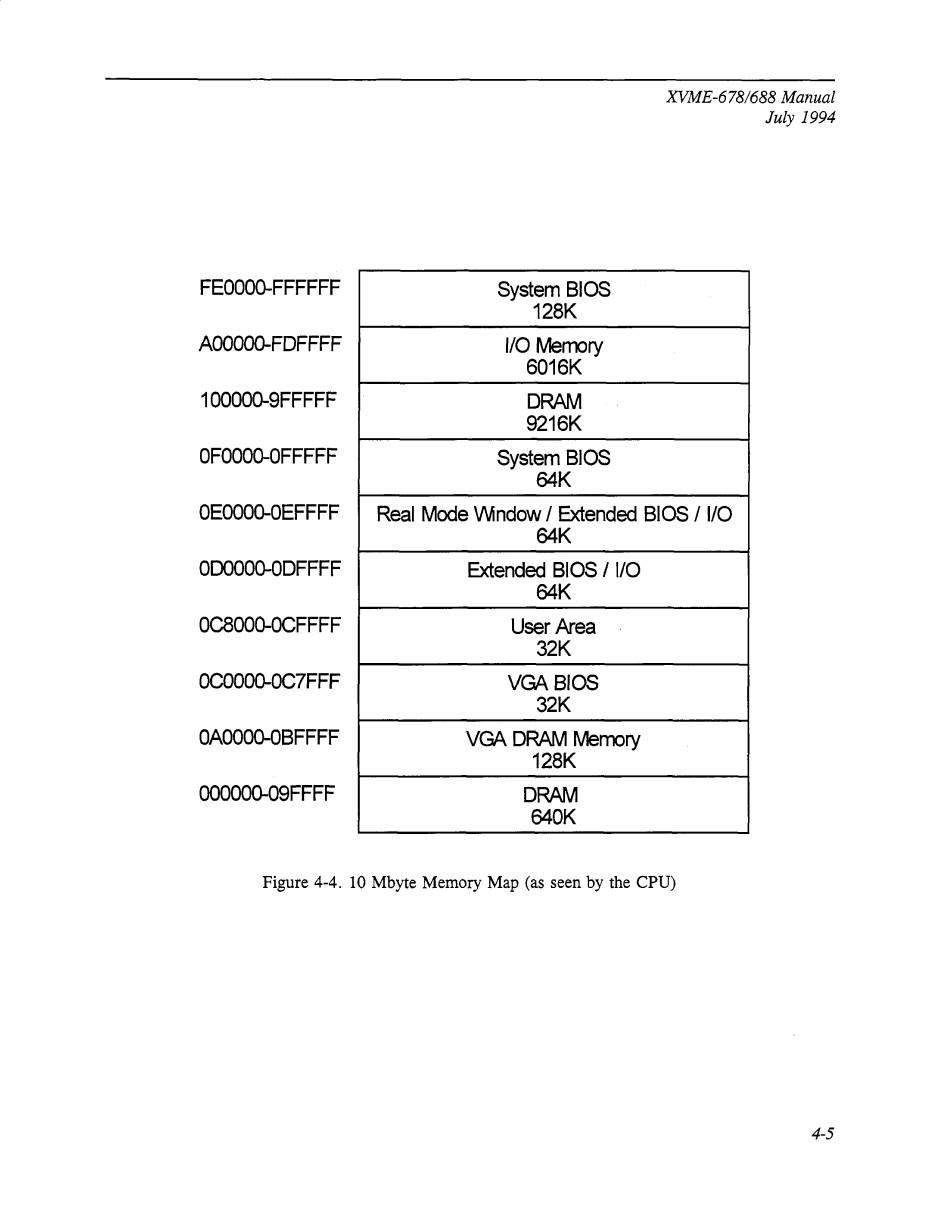

Figure 4-4. 10 Mbyte Memory Map (as seen by the CPU)
4-5
