Appendix
C -
Extended VGA Modes

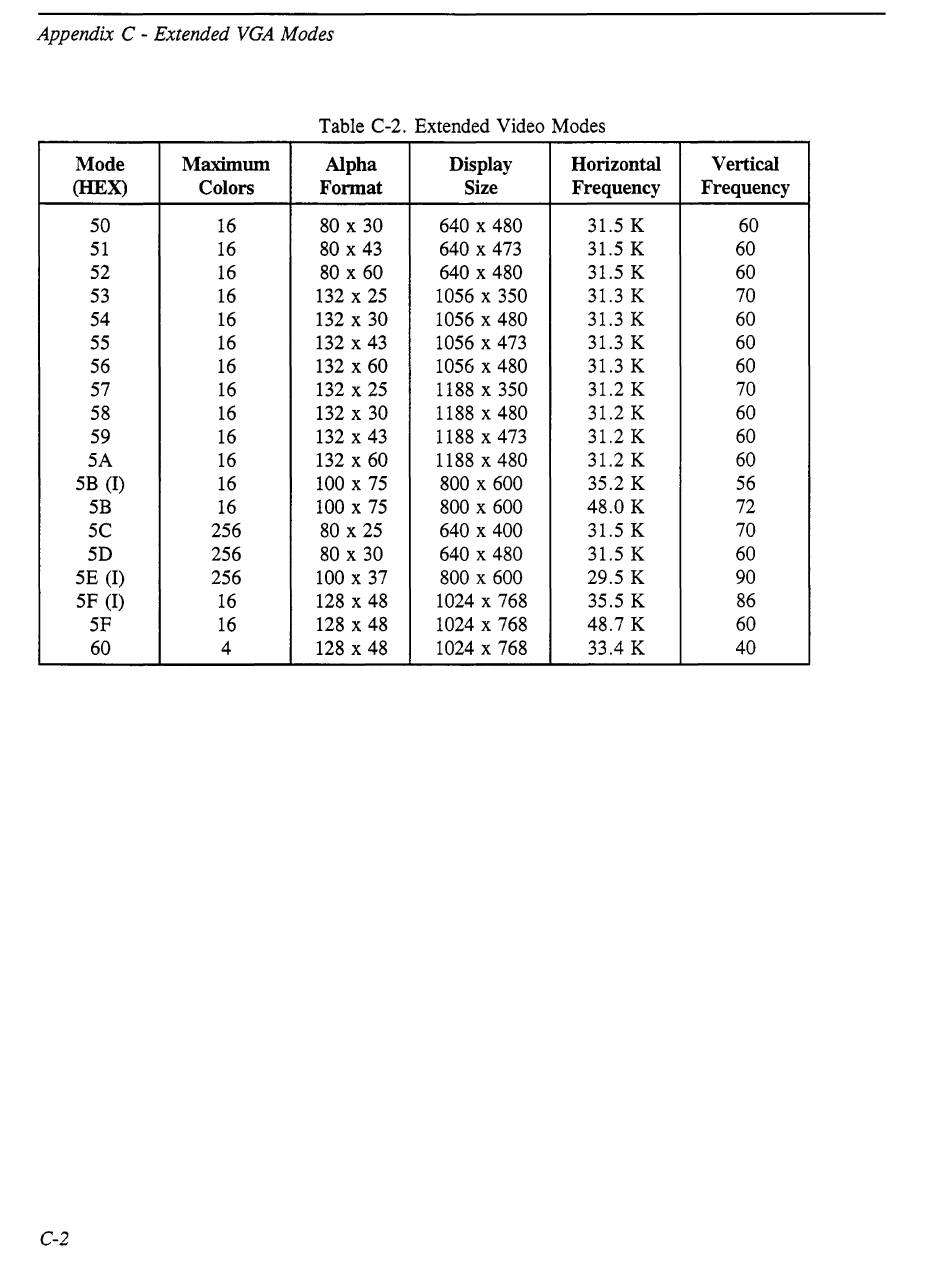

Table C-2. Extended Video Modes
Mode
Maximwn Alpha Display Horizontal Vertical
(HEX) Colors Fonnat Size
Frequency Frequency
50 16 80 x 30 640 x 480
31.5 K
60
51 16 80 x 43 640 x 473 31.5 K 60
52 16 80 x 60 640 x 480
31.5 K
60
53 16 132 x 25 1056 x 350 31.3 K 70
54 16 132 x 30 1056 x 480 31.3 K 60
55 16 132 x 43 1056 x 473
31.3 K
60
56
16 132 x 60 1056 x 480 31.3 K 60
57 16 132 x 25 1188 x 350
31.2 K 70
58 16 132 x 30 1188 x 480 31.2 K 60
59 16 132 x 43 1188 x 473
31.2 K 60
5A 16 132 x 60 1188 x 480 31.2 K 60
5B (I)
16 100 x 75 800 x 600
35.2 K
56
5B 16 100 x 75 800 x 600
48.0K
72
5C
256 80 x 25 640 x 400 31.5 K 70
5D 256 80 x 30 640 x 480 31.5 K 60
5E (I)
256 100 x 37 800 x 600
29.5 K 90
5F
(I) 16 128 x 48
1024 x 768 35.5 K 86
5F
16 128 x 48 1024 x 768 48.7 K 60
60 4 128 x 48 1024 x 768 33.4 K 40
