Title Page - Xycom XVME-678 Manual

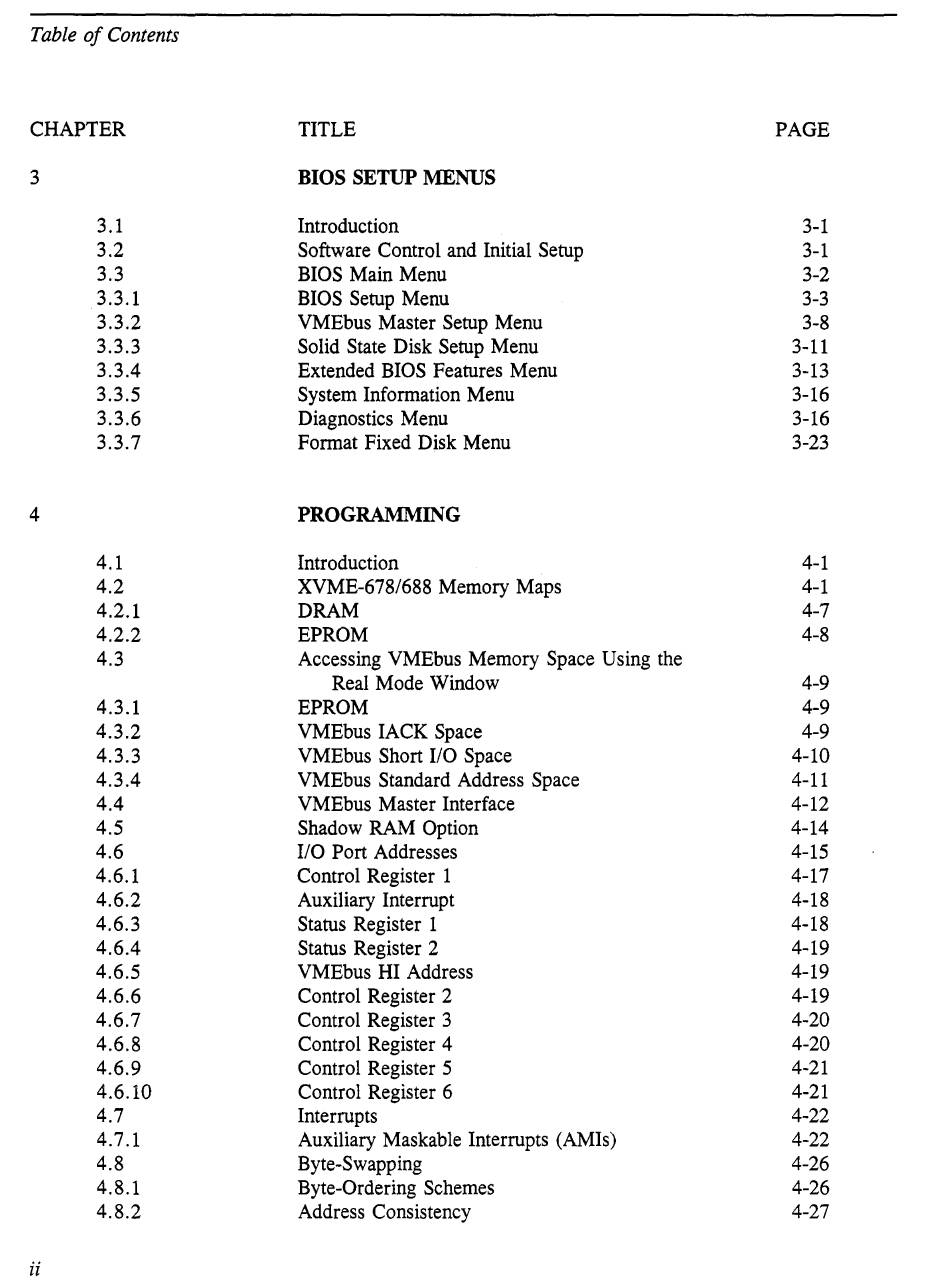

Table of Contents
CHAPTER TITLE PAGE
3
BIOS SETUP MENUS
3.1 Introduction 3-1
3.2 Software Control and Initial Setup 3-1
3.3 BIOS Main Menu 3-2
3.3.1 BIOS Setup Menu 3-3
3.3.2 VMEbus Master Setup Menu 3-8
3.3.3 Solid State Disk Setup Menu 3-11
3.3.4 Extended BIOS Features Menu 3-13
3.3.5 System Information Menu 3-16
3.3.6 Diagnostics Menu 3-16
3.3.7 Format Fixed Disk Menu 3-23
4 PROGRAMMING
4.1 Introduction 4-1
4.2 XVME-678/688 Memory Maps 4-1
4.2.1 DRAM 4-7
4.2.2 EPROM 4-8
4.3
Accessing VMEbus Memory Space Using the
Real Mode Window
4-9
4.3.1 EPROM 4-9
4.3.2 VMEbus lACK Space 4-9
4.3.3 VMEbus Short 110 Space 4-10
4.3.4 VMEbus Standard Address Space 4-11
4.4 VMEbus Master Interface 4-12
4.5 Shadow RAM Option 4-14
4.6
110
Port Addresses 4-15
4.6.1 Control Register 1 4-17
4.6.2 Auxiliary Interrupt 4-18
4.6.3 Status Register 1 4-18
4.6.4 Status Register 2 4-19
4.6.5 VMEbus HI Address
4-19
4.6.6 Control Register 2 4-19
4.6.7 Control Register 3 4-20
4.6.8 Control Register 4 4-20
4.6.9 Control Register 5 4-21
4.6.10 Control Register 6 4-21
4.7 Interrupts 4-22
4.7.1 Auxiliary Maskable Interrupts (AMIs) 4-22
4.8 Byte-Swapping 4-26
4.8.1 Byte-Ordering Schemes 4-26
4.8.2 Address Consistency 4-27
