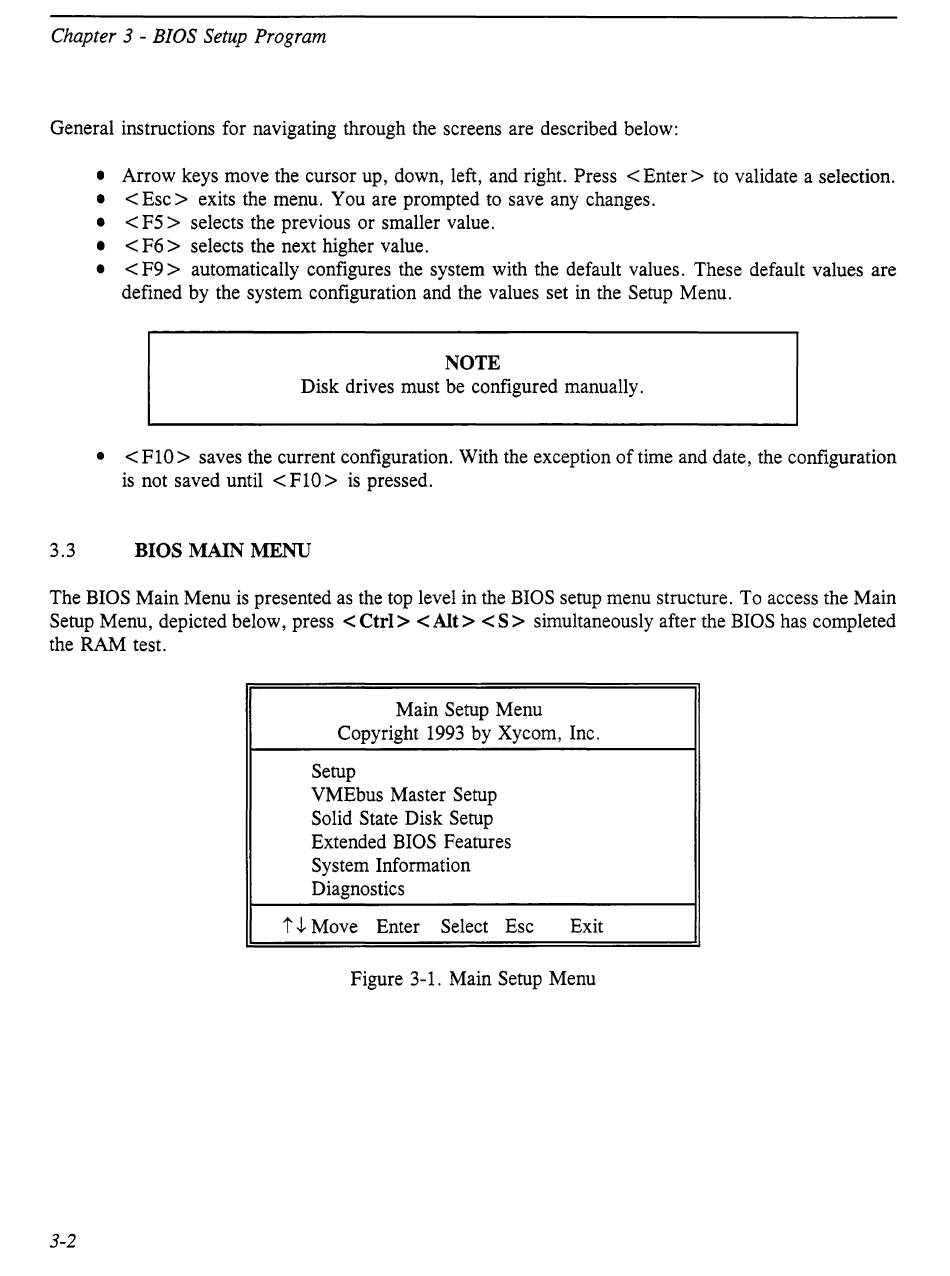

Chapter 3 - BIOS Setup Program
General instructions for navigating through the screens are described below:
• Arrow keys move the cursor up, down, left, and right. Press < Enter> to validate a selection.
•
< Esc> exits the menu. You are prompted to save any changes.
•
< F5 > selects the previous or smaller value.
•
< F6 > selects the next higher value.
•
< F9 > automatically configures the system with the default values. These default values are
defined by the system configuration and the values set in the Setup Menu.
NOTE
Disk drives must be configured manually.
•
<FlO> saves the current configuration. With the exception of time and date, the configuration
is not saved until < FlO> is pressed.
3.3
BIOS MAIN MENU
The BIOS Main Menu is presented as the top level in the BIOS setup menu structure. To access the Main
Setup Menu, depicted below, press < Ctrl > < Alt > < S
>
simultaneously after the BIOS has completed
the RAM test.
Main Setup Menu
Copyright 1993 by Xycom, Inc.
Setup
VMEbus Master Setup
Solid State Disk Setup
Extended BIOS Features
System Information
Diagnostics
t.,1..Move Enter Select Esc
Exit
Figure 3-1. Main Setup Menu
3-2
