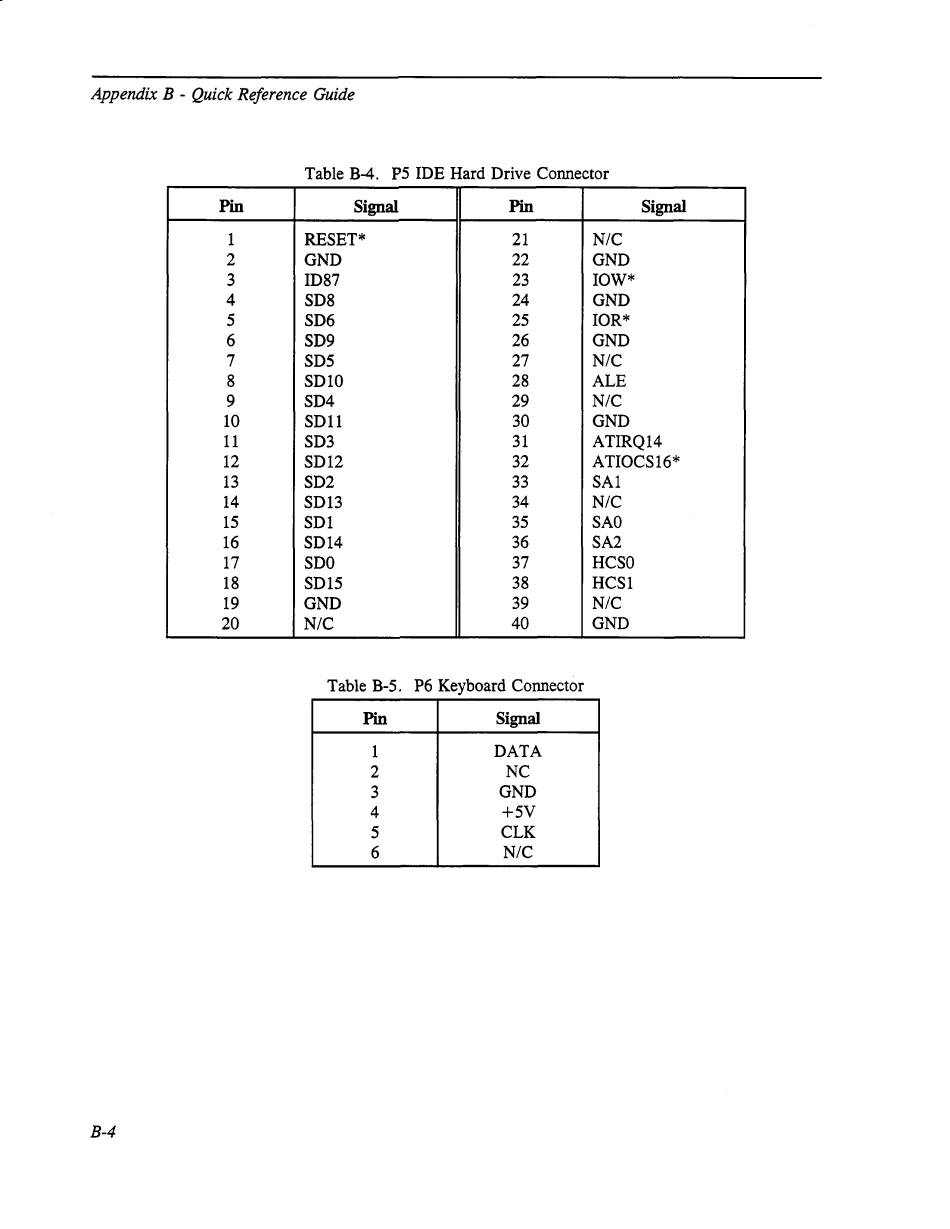

Appendix B - Quick Reference Guide
Table B-4. P5 IOE Hard Orive Connector
Pin
Signal
Pin
Signal
1 RESET * 21
N/C
2
GND
22
GNO
3 ID87 23 IOW*
4
S08
24
GNO
5 S06
25 IOR*
6 S09 26 GNO
7 S05 27 N/C
8 SDlO
28 ALE
9
S04 29
N/C
10
SO 11
30 GNO
11 S03 31 ATIRQ14
12 S012 32 ATIOCS16*
13
S02
33 SAl
14
S013
34
N/C
15
SOl
35 SAO
16 S014 36 SA2
17 SOO 37 HCSO
18
S015
38 HCS1
19 GNO
39
N/C
20
N/C 40 GNO
Table B-5. P6 Keyboard Connector
Pin Signal
1
OATA
2 NC
3 GNO
4 +5V
5 CLK
6
N/C
