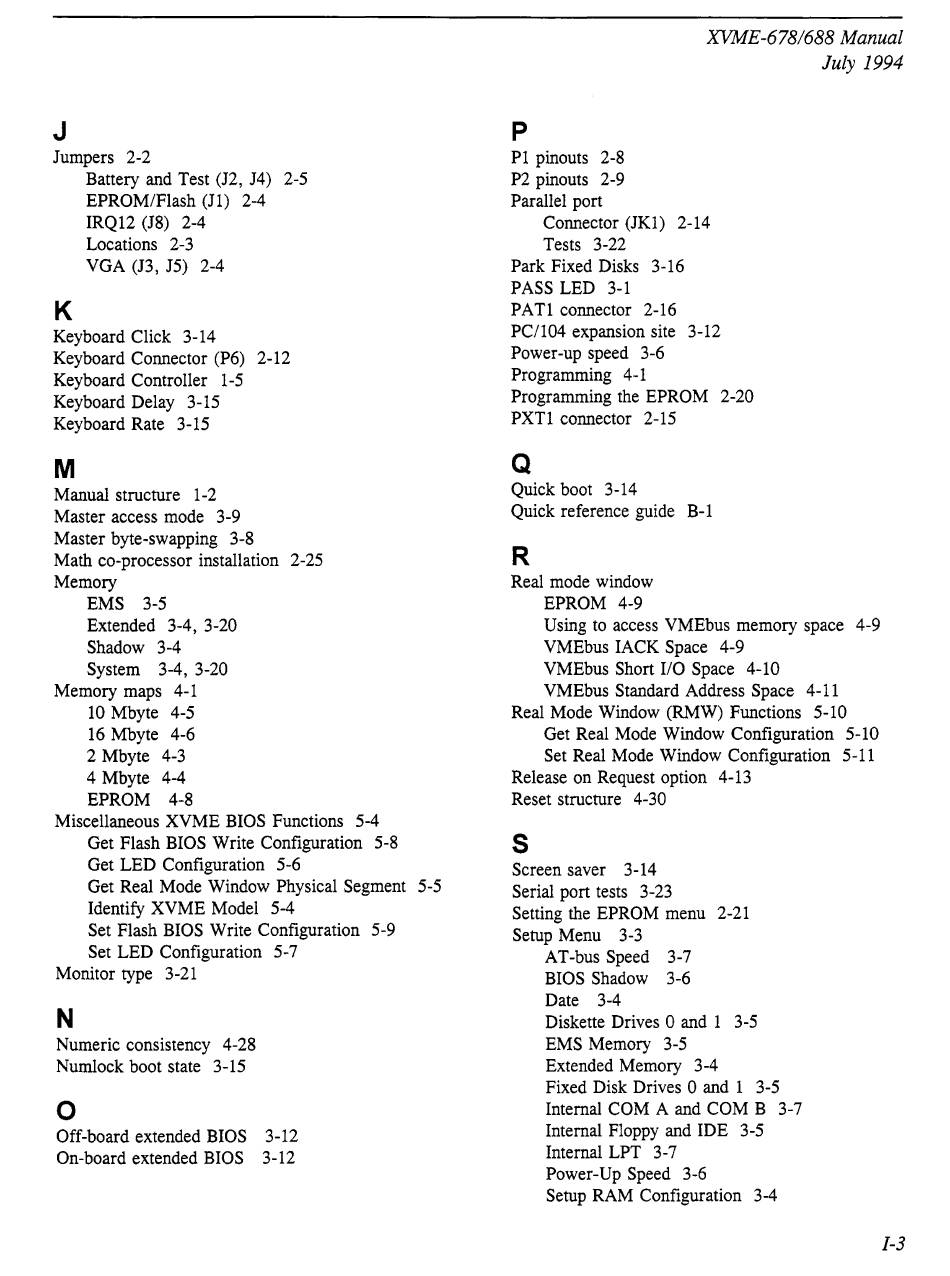

Xycom XVME-678 Manual page 164

J
Jumpers 2-2
K
Battery and Test (J2, J4) 2-5
EPROM/Flash (11) 2-4
IRQ12 (J8) 2-4
Locations 2-3
VGA (13, J5) 2-4
Keyboard Click 3-14
Keyboard Connector (P6) 2-12
Keyboard Controller 1-5
Keyboard Delay 3-15
Keyboard Rate 3-15
M
Manual structure 1-2
Master access mode 3-9
Master byte-swapping 3-8
Math co-processor installation 2-25
Memory
EMS 3-5
Extended 3-4, 3-20
Shadow 3-4
System 3-4, 3-20
Memory maps 4-1
10 Mbyte 4-5
16 Mbyte 4-6
2 Mbyte 4-3
4 Mbyte 4-4
EPROM 4-8
Miscellaneous XVME BIOS Functions 5-4
Get Flash BIOS Write Configuration 5-8
Get LED Configuration 5-6
Get Real Mode Window Physical Segment 5-5
Identify XVME Model 5-4
Set Flash BIOS Write Configuration 5-9
Set LED Configuration 5-7
Monitor type 3-21
N
Numeric consistency 4-28
Numlock boot state 3-15
o
Off-board extended BIOS 3-12
On-board extended BIOS 3-12
XVME-678/688 Manual
July 1994
P
PI pinouts 2-8
P2 pinouts 2-9
Parallel port
Connector (JKl) 2-14
Tests 3-22
Park Fixed Disks 3-16
PASS LED 3-1
PA Tl connector 2-16
PC/I04 expansion site 3-12
Power-up speed 3-6
Programming 4-1
Programming the EPROM 2-20
PXTl connector 2-15
Q
Quick boot 3-14
Quick reference guide B-1
R
Real mode window
EPROM 4-9
Using to access VMEbus memory space 4-9
VMEbus lACK Space 4-9
VMEbus Short I/O Space 4-10
VMEbus Standard Address Space 4-11
Real Mode Window (RMW) Functions 5-10
Get Real Mode Window Configuration 5-10
Set Real Mode Window Configuration 5-11
Release on Request option 4-13
Reset structure 4-30
S
Screen saver 3 -14
Serial port tests 3-23
Setting the EPROM menu 2-21
Setup Menu 3-3
AT-bus Speed 3-7
BIOS Shadow 3-6
Date 3-4
Diskette Drives 0 and 1 3-5
EMS Memory 3-5
Extended Memory 3-4
Fixed Disk Drives 0 and 1 3-5
Internal COM A and COM B 3-7
Internal Floppy and IDE 3-5
Internal LPT 3-7
Power-Up Speed 3-6
Setup RAM Configuration 3-4
1-3
