Appendix B - Quick Reference Guide

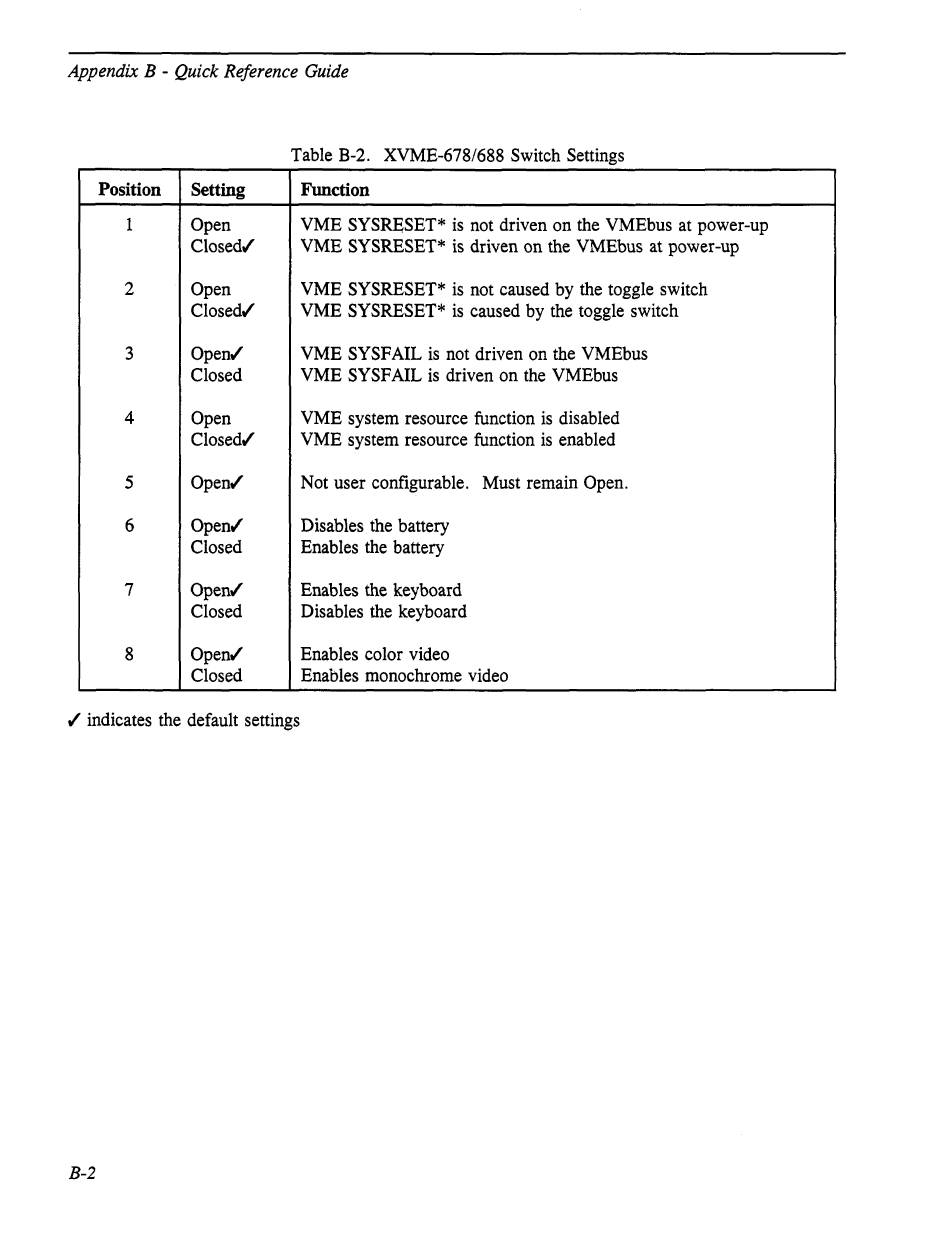

Table B-2. XVME-678/688 Switch Settings
Position
Setting
Function
1
Open
VME SYSRESET* is not driven on the VMEbus at power-up
ClosedI'
VME SYSRESET* is driven on the VMEbus at power-up
2
Open
VME SYSRESET* is not caused by the toggle switch
ClosedI'
VME SYSRESET* is caused by the toggle switch
3
Openl'
VME SYSFAIL is not driven on the VMEbus
Closed
VME SYSF AIL is driven on the VMEbus
4
Open
VME system resource function is disabled
ClosedI'
VME system resource function is enabled
5
Openl'
Not user configurable. Must remain Open.
6
Openl'
Disables the battery
Closed
Enables the battery
7
Openl'
Enables the keyboard
Closed
Disables the keyboard
8
Openl'
Enables color video
Closed
Enables monochrome video
.I indicates the default settings
B-2
