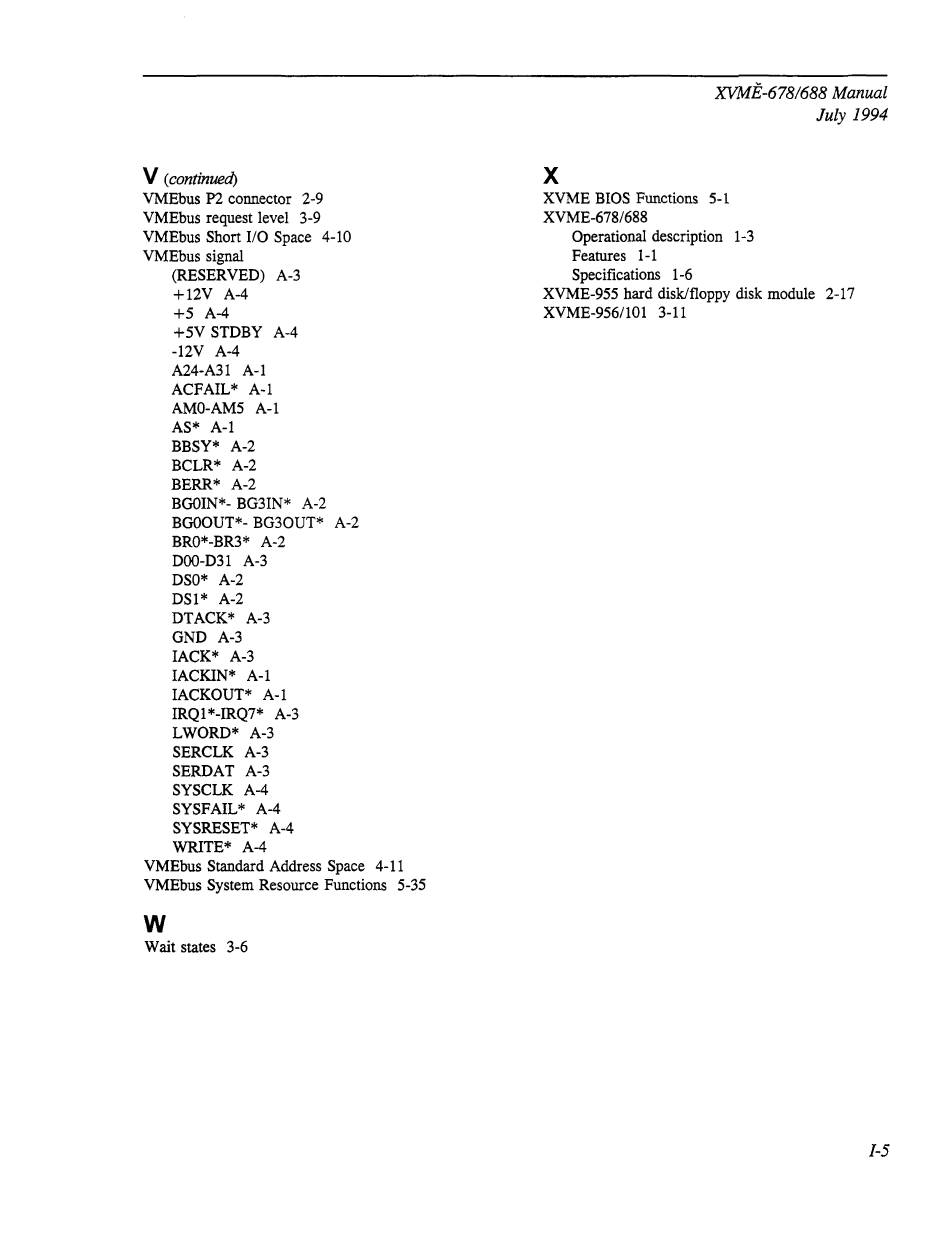

Xycom XVME-678 Manual page 166

V
(continued)
VMEbus P2 connector 2-9
VMEbus request level 3-9
VMEbus Short 110 Space 4-10
VMEbus signal
(RESERVED) A-3
+12V A-4
+5 A-4
+5V STDBY A-4
-12V A-4
A24-A31 A-I
ACFAIL* A-I
AMO-AM5 A-I
AS* A-I
BBSY* A-2
BCLR* A-2
BERR* A-2
BGOIN*- BG3IN* A-2
BGOOUT*- BG30UT* A-2
BRO*-BR3* A-2
000-D31 A-3
DSO* A-2
DS1* A-2
DTACK* A-3
GND A-3
IACK* A-3
IACKIN* A-I
IACKOUT* A-I
IRQ 1 *-IRQ7* A-3
LWORD* A-3
SERCLK A-3
SEROAT A-3
SYSCLK A-4
SYSFAIL* A-4
SYSRESET* A-4
WRITE* A-4
VMEbus Standard Address Space 4-11
VMEbus System Resource Functions 5-35
W
Wait states 3-6
XVME-678/688 Manual
July 1994
X
XVME BIOS Functions 5-1
XVME-678/688
Operational description 1-3
Features 1-1
Specifications 1-6
XVME-955 hard disk/floppy disk module 2-17
XVME-956/101 3-11
/-5
