XVME-678/688 Manual
July 1994

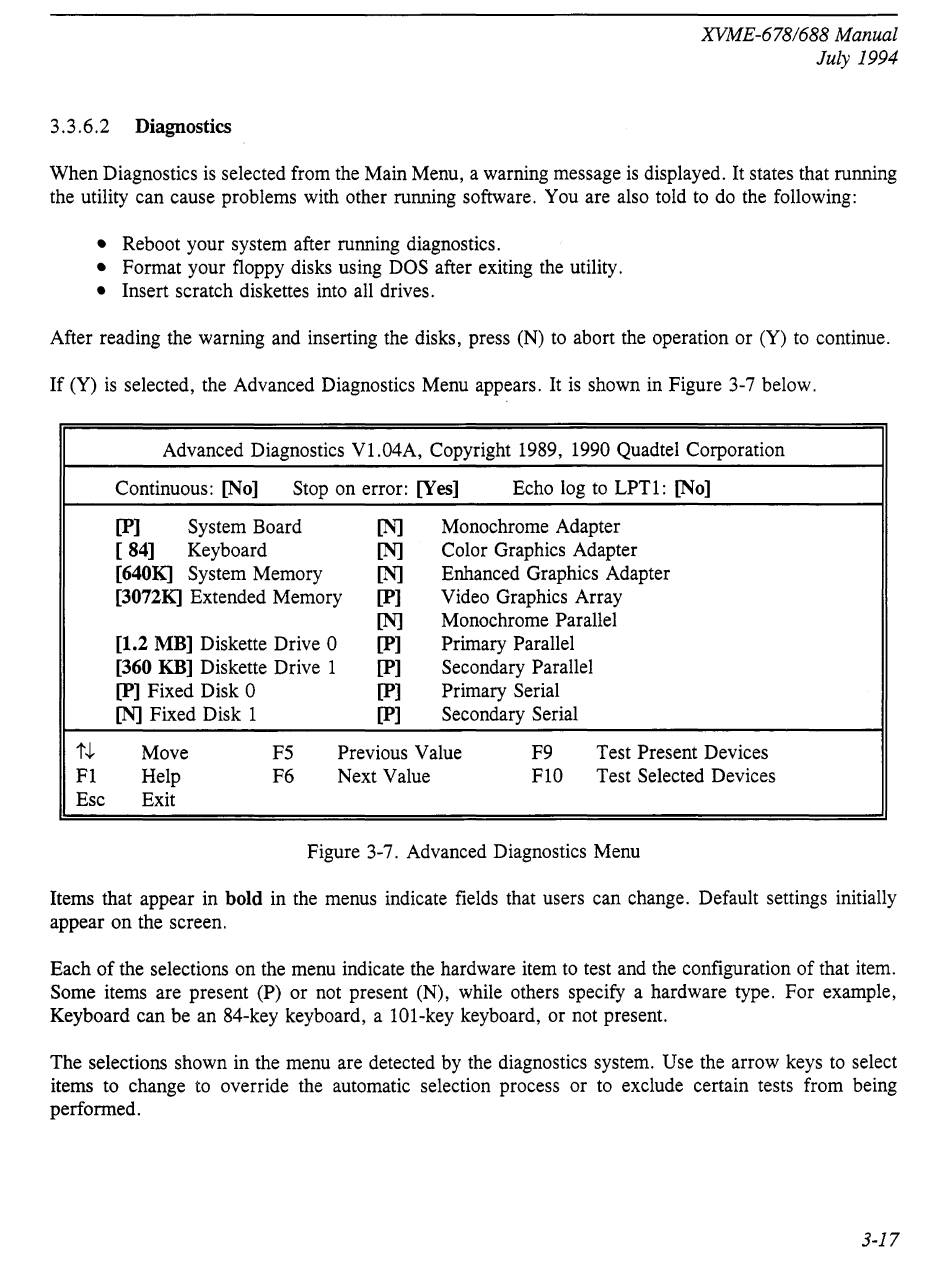

3.3.6.2 Diagnostics
When Diagnostics is selected from the Main Menu, a warning message is displayed. It states that running
the utility can cause problems with other running software. You are also told to do the following:
• Reboot your system after running diagnostics.
• Format your floppy disks using DOS after exiting the utility.
• Insert scratch diskettes into all drives.
After reading the warning and inserting the disks, press (N) to abort the operation or (Y) to continue.
If (Y) is selected, the Advanced Diagnostics Menu appears. It is shown in Figure 3-7 below.
Advanced Diagnostics V1.04A, Copyright 1989, 1990 Quadtel Corporation
Continuous: [No] Stop on error: [Yes] Echo log to LPT1: [No]
[P]
System Board
[N] Monochrome Adapter
[ 84] Keyboard
[N]
Color Graphics Adapter
[640K] System Memory [N] Enhanced Graphics Adapter
[3072K] Extended Memory
[P] Video Graphics Array
[N]
Monochrome Parallel
[1.2 MB] Diskette Drive 0 [P] Primary Parallel
[360 KB] Diskette Drive 1
[P]
Secondary Parallel
[P] Fixed Disk 0 [P] Primary Serial
[N] Fixed Disk 1
[P] Secondary Serial
t-l.
Move F5
Previous Value F9 Test Present Devices
F1 Help F6 Next Value FlO
Test Selected Devices
Esc
Exit
Figure 3-7. Advanced Diagnostics Menu
Items that appear in bold in the menus indicate fields that users can change. Default settings initially
appear on the screen.
Each of the selections on the menu indicate the hardware item to test and the configuration of that item.
Some items are present (P) or not present (N), while others specify a hardware type. For example,
Keyboard can be an 84-key keyboard, a 101-key keyboard, or not present.
The selections shown in the menu are detected by the diagnostics system. Use the arrow keys to select
items to change to override the automatic selection process or to exclude certain tests from being
performed.
3-17
